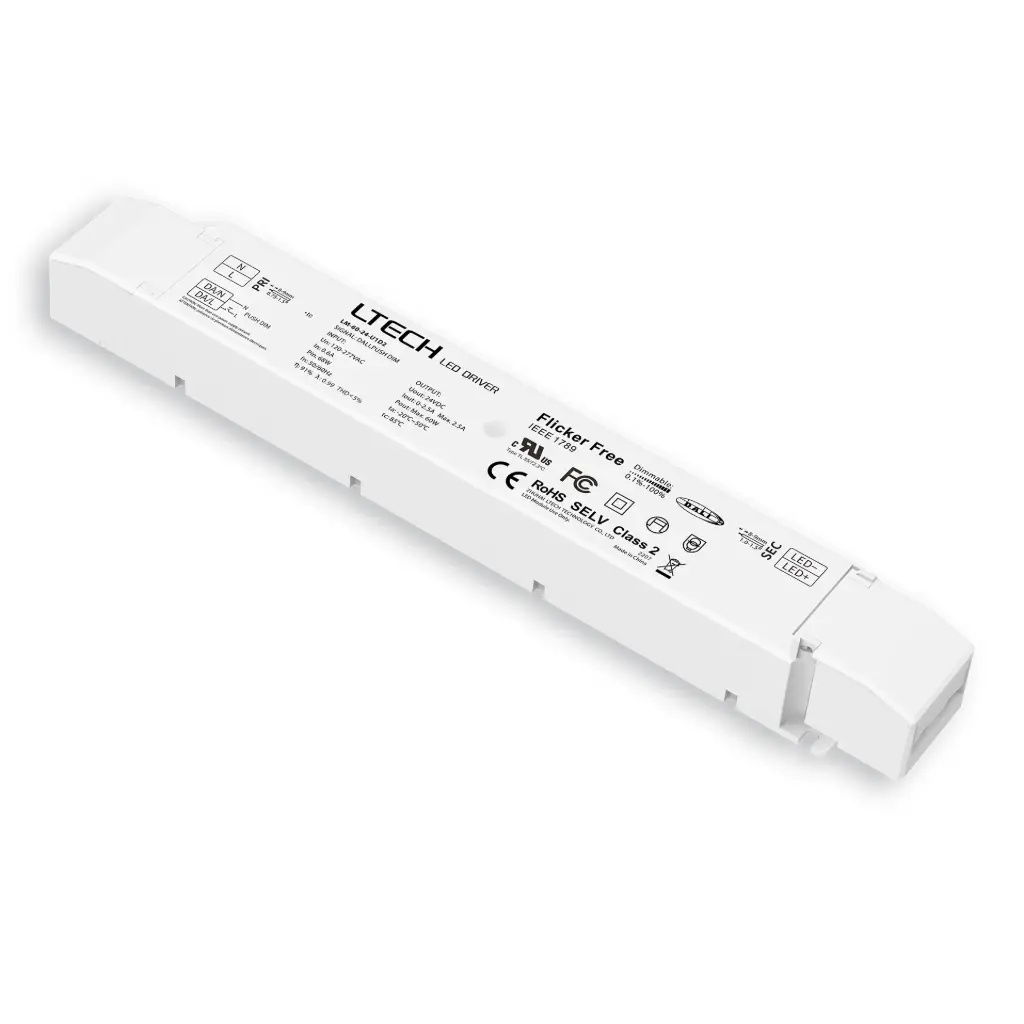

Intelligent LED Driver (Constant Voltage)
This intelligent LED driver is compact and lightweight, with a V0 flame-retardant polycarbonate housing from SAMSUNG/COVESTRO. Its clamshell, screwless design with a dismountable end cap allows adjustable housing length. Soft-on and fade-in dimming enhances visual comfort, with flicker-free 0-100% dimming down to 0.1% and high-frequency exemption. It complies with the EU ErP directive, with standby power consumption under 0.5W. The driver features secure signal isolation, intelligent thermal management, and protection against overheat, overvoltage, overload, and short circuits with automatic recovery. Suitable for indoor I/II/III type lighting, it offers up to 50,000 hours of life and a 5-year warranty (Rubycon capacitor).
- Input Voltage: 120-277Vac
- Dimming Interface: DALI-2, Push DIM
- Output Voltage: 24Vdc
- Output Current: Max. 2.5A
- Output Power: Max. 60W
- Working Temperature: ta: -20~50°C tc: 85°C
- Dimensions: L293 × W42.5 × H30 (mm)
- Weight (G.W): 285g
