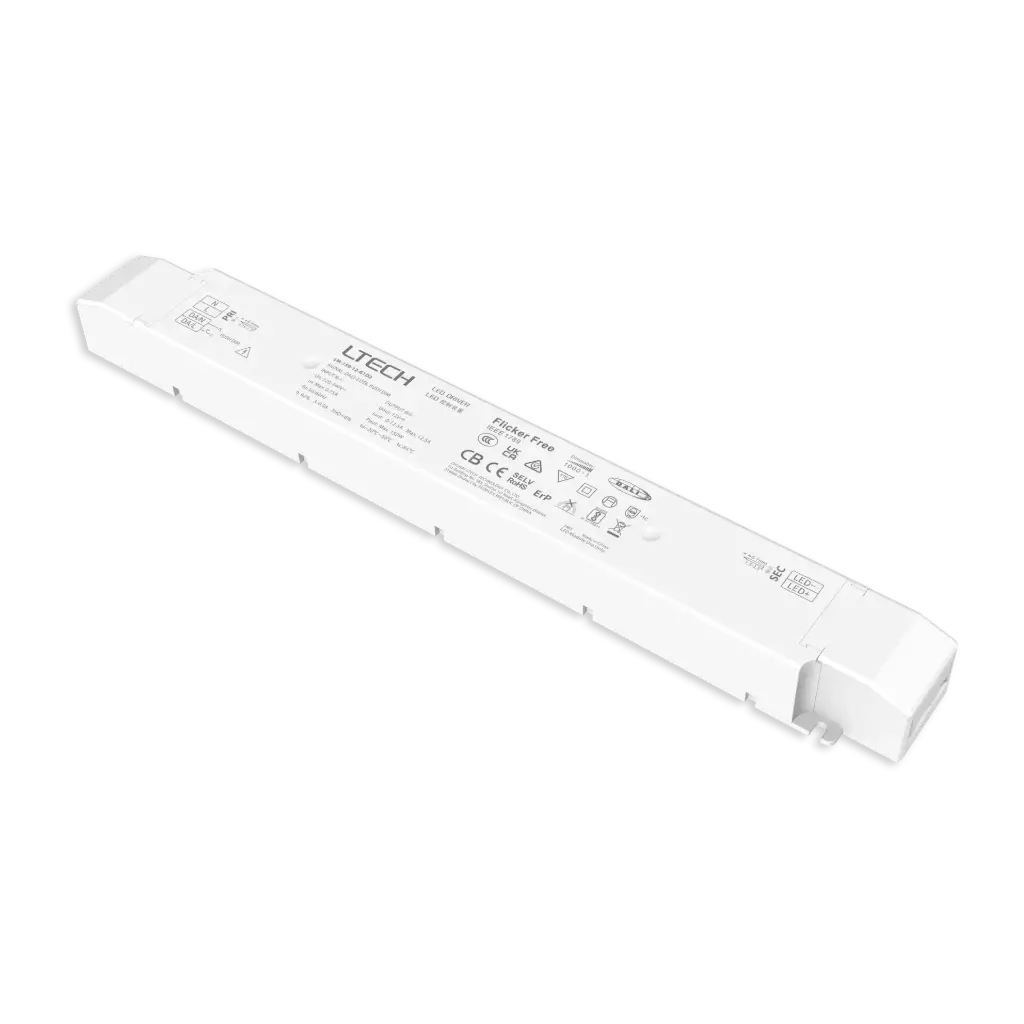

LTECH LTSYS Driver CV DALI-2 1CH 12V 150W NFC - LM-150-12-G1D2F

LTECH LTSYS Driver CV DALI-2 1CH 12V 150W NFC - LM-150-12-G1D2F


This DALI-2 DT6 constant voltage LED driver features a V0 flame-retardant polycarbonate housing from Covestro/Samsung with a tool-free clamshell design and adjustable end caps. It offers two independent SELV output channels, supports DALI-2 DT6, Push DIM, and corridor modes, and allows NFC configuration of dimming and DALI settings via mobile app. High efficiency up to 93%, low standby power under 0.5W, advanced thermal management, and full protection against electrical faults ensure long-term reliability. Suitable for Class I, II, and III indoor luminaires, with a service life over 100,000 hours.

€ 0.00 € 0.00

  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Current load/ ch
  • Curent load max
  • Output Power Range
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Control
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2824101
HS Code: 85044095

01
General
9 specifications
Control
DALI
Channels
1
Input Voltage
220-240 V
Input Voltage Domain
AC
Output Voltage
12 V
Output Power Range
150
Current load/ ch
12.5A
Curent load max
12.5A
Dimming Range
0-100% down to 0.01%
02
Operating
2 specifications
Certificates
CCC · TUV · CE · KC · RCM · CB · EAC · ENEC · RoHS
Warranty
5 Years
01
All Files
1 file
PDF
LM-150-12-G1D2F - User Manual.pdf
2.8 MB
Download
