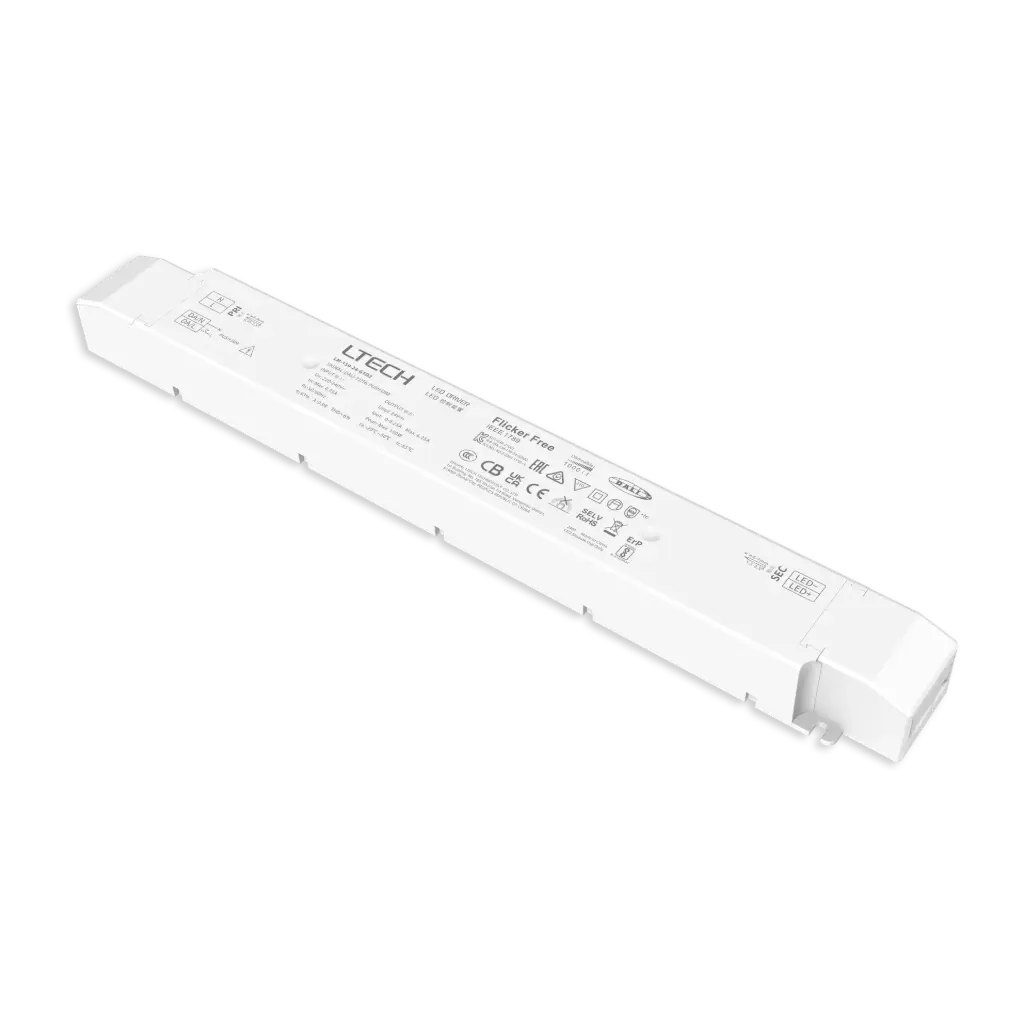

LTECH LTSYS Driver CV DALI-2 1CH 24V 150W - LM-150-24-G1D2

LED Intelligent Driver (Constant Voltage) Compact and lightweight with V0 flame-retardant housing from SAMSUNG/COVESTRO. Clamshell design with screwless strain-relief and adjustable end cap. Soft-on and fade-in dimming from 0-100% (from 0.1%). High efficiency (93%), PF>0.98, THD<6%, compliant with EU ErP (<0.5W standby). Innovative thermal management with protection against overheat, overvoltage, overload, and short circuit. Fully protected housing, DALI standard IEC62386-101/102/207. Suitable for indoor Class I/II/III fixtures. 50,000-hour life, 5-year warranty.

Input Voltage: 220-240V AC 200-280V DC
Dimming Interface: DALI (IEC62386), Push DIM
Output Voltage: 24V DC
Output Current: Max. 6.25A
Output Power: Max. 150W
Output Power Range: 0-150W
Working Temperature: ta: -20~50°C tc: 85°C
Dimensions: L352 × W43 × H30 (mm)
Weight (G.W): 430g

Control
- DALI
Output Voltage
- 24 V
Input Voltage Domain
- AC
Channels
- 1
Output Power Range
- 150
Input Voltage
- 220-240 V
Curent load max
- 6.25A

Internal Reference: 2824200
HS Code: 85044031

General

Control	DALI
Output Voltage	24 V
Input Voltage Domain	AC
Channels	1
Output Power Range	150
Input Voltage	220-240 V
Curent load max	6.25A

1 file

PDF

LM-150-24-G1D2 User Manual.pdf

1.9 MB

Download
