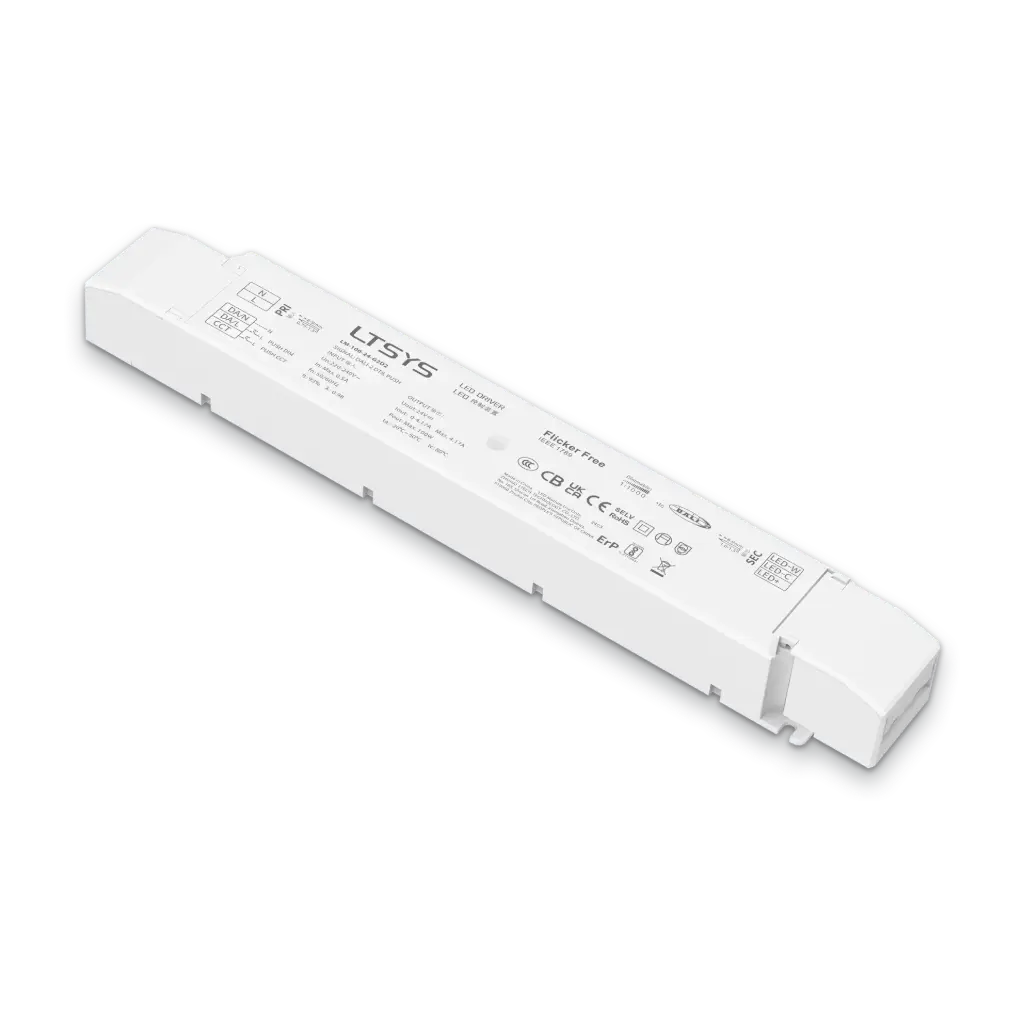

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 24V 100W NFC - LM-100-24-G2D2F

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 24V 100W NFC - LM-100-24-G2D2F


Intelligent Tunable White LED Driver (Constant Voltage)
Compact and lightweight, with a V0 flame-retardant PC housing from SAMSUNG/COVESTRO. The clamshell, screwless design with a removable end cap allows adjustable housing length. Constant power design maintains brightness across adjustable color temperatures (1000-10000K, default 2700-6500K). Dimming range: 0-100%, down to 0.1%. Features 2 SELV output channels with common anode, secure signal isolation, and protections against overheat, overvoltage, overload, and short circuits with automatic recovery. Suitable for Class I/II/III indoor fixtures. Lifetime up to 50,000 hours with a 5-year warranty (Rubycon capacitor).

  • Input Voltage: 220-240Vac
  • AC Output Voltage: 24Vdc
  • Output Current: Max. 4.17A
  • Output Power: Max. 100W
  • Dimming Interface: DALI-2 DT6/DT8, Push DIM/CCT
  • Working Temperature: ta:-20~50°C tc:80°C
  • Dimensions: L293 x W43 x H30 (mm)
  • Weight (G.W): 300g
€ 0.00 € 0.00

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Version
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2823101
HS Code: 85044095

01
General
10 specifications
Control
DALI
Channels
2
Input Voltage
220-240 V
Input Voltage Domain
AC
Output Voltage
24 V
Output Power Range
100
Current load/ ch
2.1A
Curent load max
4.17A
Version
DT6 · DT8
Dimming Range
0-100% down to 0.1%
02
Operating
2 specifications
Certificates
CCC · CE · CB · UKCA · ERP · RoHS
Warranty
5 Years
