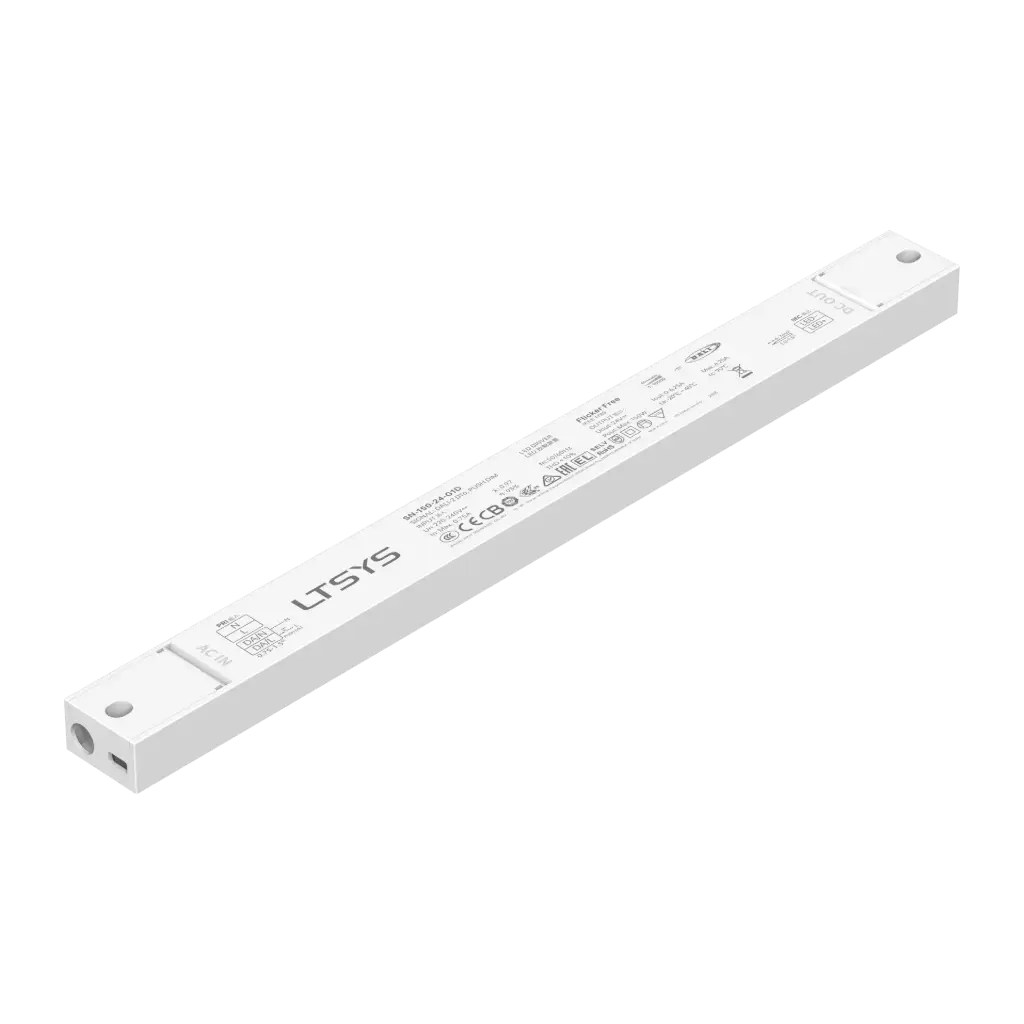

LTECH LTSYS Driver CV DALI-2 DT6 1CH 24V 150W - SN-150-24-G1D


LED Driver (Constant Voltage)
This ultra-thin DALI-2 DT8 constant power LED driver features a V0 flame-retardant polycarbonate housing with an integrated clamshell design. It supports smooth, flicker-free dimming from 0.01% to 100% and precise color temperature control from 1000K to 10,000K, with a default range of 2700K to 6500K, while maintaining consistent brightness. Delivering high performance with 93% efficiency, power factor above 0.97, and low standby power below 0.5W in line with EU ERP standards, it also includes advanced thermal management and full protection against overheating, overload, and short circuits. Suitable for Class I, II, and III indoor luminaires such as light strips and magnetic track lights and backed by a 5-year warranty.

  • Input Voltage: 220-240Vac / 220-240Vdc (EMI needs to be evaluated after the luminaire is installed)
  • Input Current: Max. 0.75A/230Vac
  • Output Voltage: 24Vdc
  • Output Current: Max. 6.25A
  • Output Power Range: 0-150W
  • Working Temperature: ta: -20 ~ 45°C tc: 90°C
  • Dimensions: L350 × W30 × H18 (mm)
  • Weight (N.W.): 211g±10g
€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Curent load max
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2822810
HS Code: 85044031

General
Input Voltage Domain AC
Channels 1
Control DALI
Output Power Range 150
Input Voltage 220-240 V
Output Voltage 24 V
Curent load max 6.25A
Version DT6
Dimming Range 0-100% down to 0.1%
Operating
IP Rating IP20
Certificates CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , BIS , ERP
Warranty 5 Years
  • SN-150-24-G1D User Manul.pdf
