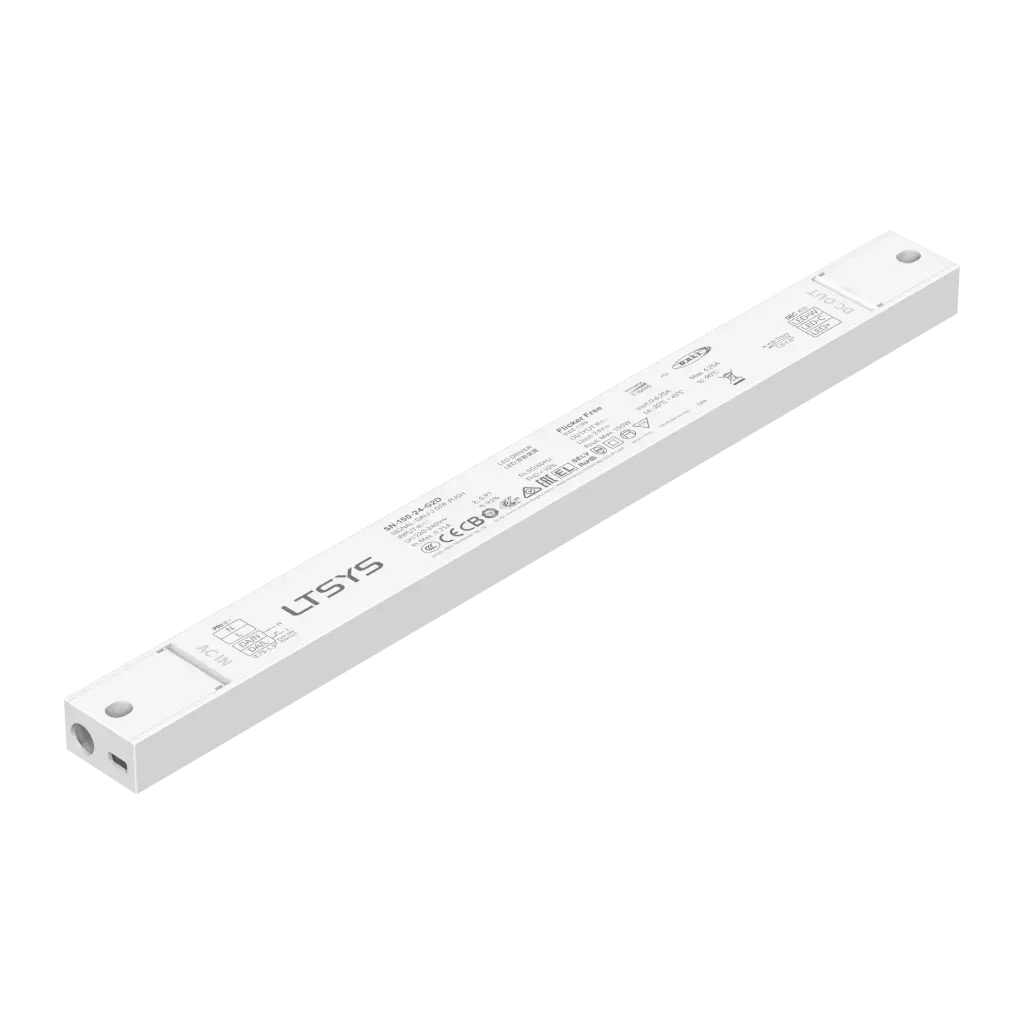

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 24V 150W - SN-150-24-G2D

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 24V 150W - SN-150-24-G2D


LED Driver (Constant Voltage)
This ultra-thin DALI-2 DT8 constant power LED driver features a V0 flame-retardant polycarbonate housing with an integrated clamshell design. It supports smooth, flicker-free dimming from 0.01% to 100% and precise color temperature control from 1000K to 10,000K, with a default range of 2700K to 6500K, while maintaining consistent brightness. Delivering high performance with 93% efficiency, power factor above 0.97, and low standby power below 0.5W in line with EU ERP standards, it also includes advanced thermal management and full protection against overheating, overload, and short circuits. Suitable for Class I, II, and III indoor luminaires such as light strips and magnetic track lights, and backed by a 5-year warranty.

  • Input Voltage: 120-300Vdc /100-240Vac
  • Input Current: Max. 0.75A/230Vac
  • Output Voltage: Max. 50Vdc
  • Output Current: 3.125Ax2CH
  • Output Power: 150W
  • Working Temperature: ta: -20~50°C tc: 75°C
  • Dimensions: L167 × W41 × H32 (mm)
€ 0.00 € 0.00

  • Control
  • IP Rating
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Version
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2824410
HS Code: 85044031

01
General
10 specifications
Control
DALI
Input Voltage
220-240 V
Input Voltage Domain
AC
Channels
2
Output Voltage
24 V
Output Power Range
150
Current load/ ch
3.125A
Curent load max
6.25A
Version
DT6 · DT8
Dimming Range
0-100% down to 0.1%
02
Operating
3 specifications
IP Rating
IP20
Certificates
CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · BIS · ERP
Warranty
5 Years
