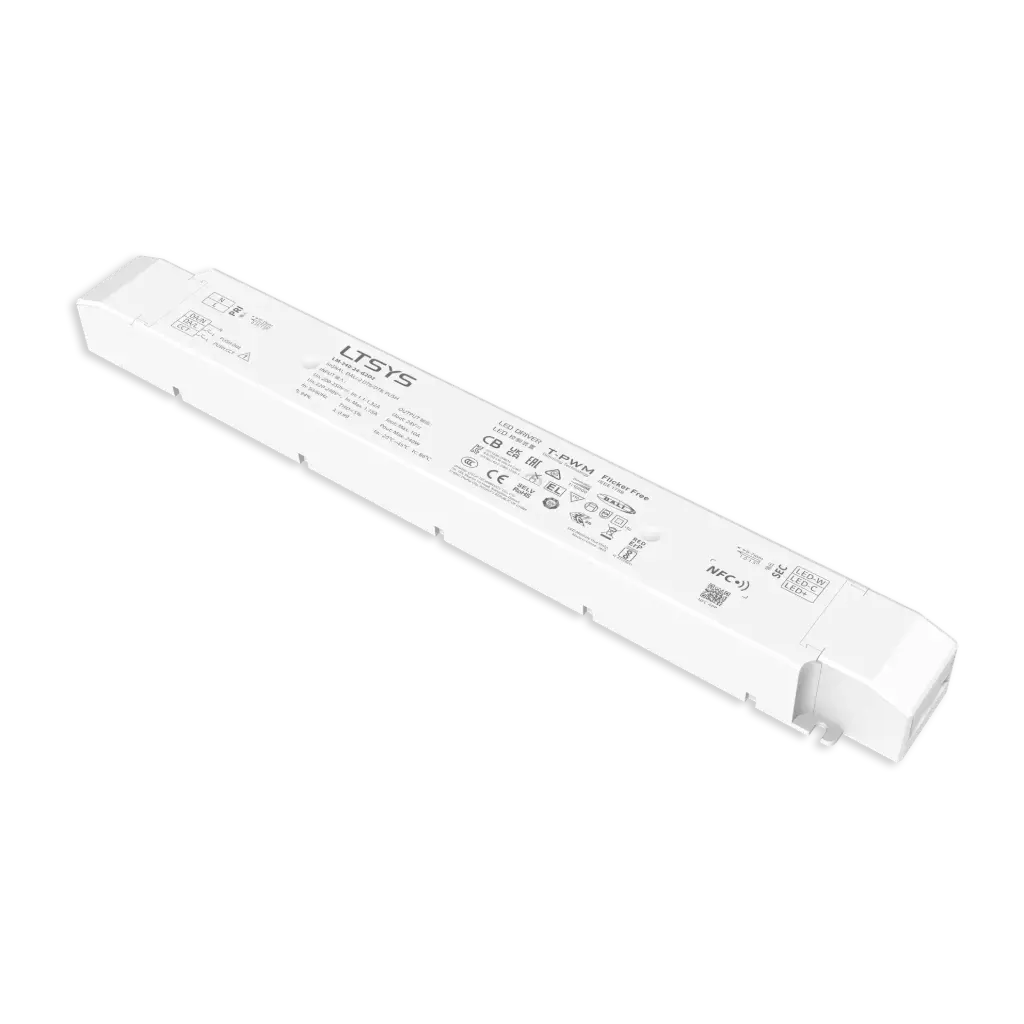

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 24V 240W - LM-240-24-G2D2

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 24V 240W - LM-240-24-G2D2


Intelligent Tunable White LED Driver (Constant Voltage)
This LED driver features a durable V0 flame-retardant PC housing from Samsung and Covestro, with a clamshell, screwless design and adjustable length for flexible installation. It supports app-based control via APP, allowing easy adjustment of DALI address, PWM frequency, groups, and scenes. Designed with constant power output, it maintains consistent brightness across different color temperatures, while soft-on and fade-in dimming enhance visual comfort. With T-PWM™ technology, it delivers ultra-deep 0.01% flicker-free dimming. Energy-efficient and compliant with EU ErP standards, it also includes full protection against overheating, overvoltage, overload, and short circuits, with a long service life of up to 100,000 hours.


€ 0.00 € 0.00

  • Control
  • IP Rating
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Version
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2824600
HS Code: 85044031

01
General
10 specifications
Control
DALI
Input Voltage
220-240 V
Input Voltage Domain
AC
Channels
2
Output Voltage
24 V
Output Power Range
240 W
Current load/ ch
5A
Curent load max
10A
Version
DT6 · DT8
Dimming Range
0-100% down to 0.01%
02
Operating
3 specifications
IP Rating
IP20
Certificates
CCC · BIS · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · ERP · RoHS
Warranty
5 Years
01
All Files
1 file
PDF
LM-240-24-G2D2 User Manual.pdf
2.1 MB
Download
