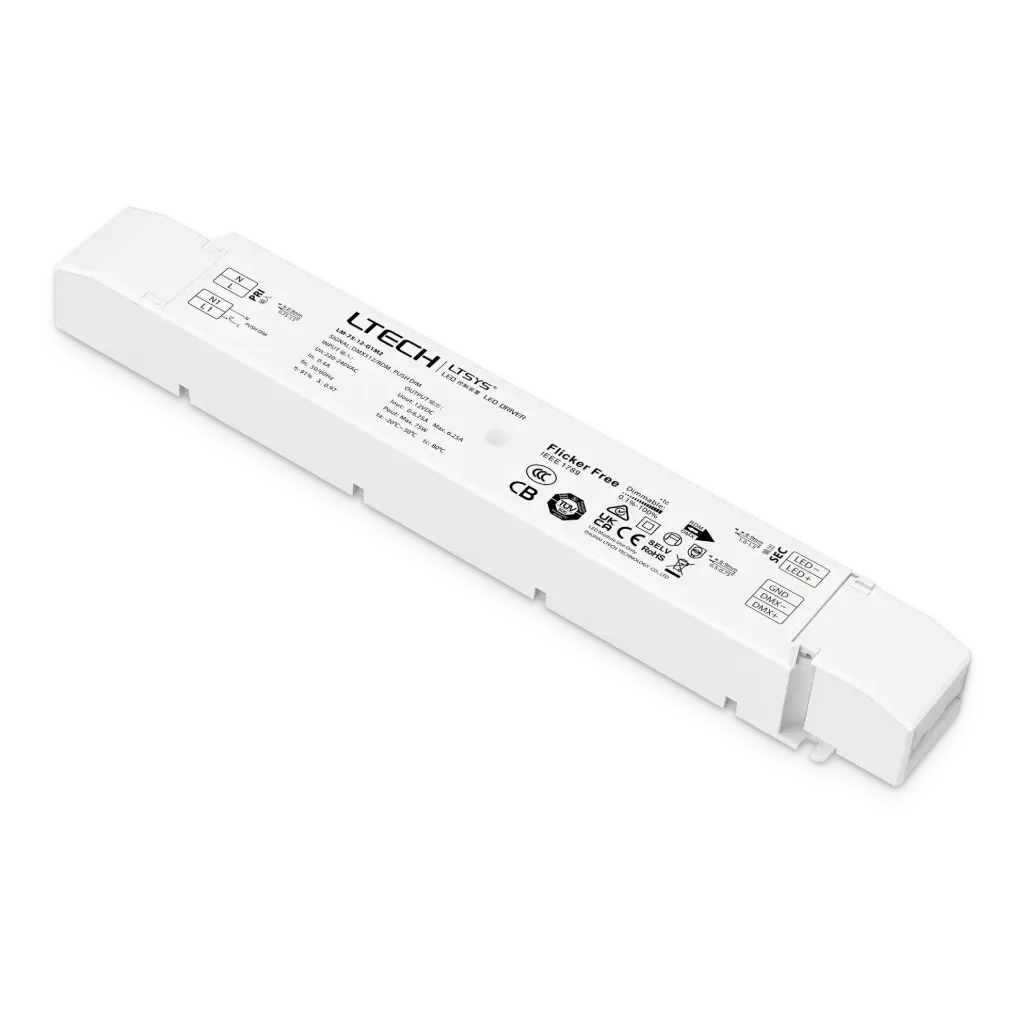

LTECH LTSYS Driver CV DMX 1CH 12V 75W - LM-75-12-G1M2F


LED Intelligent Driver (Constant Voltage)

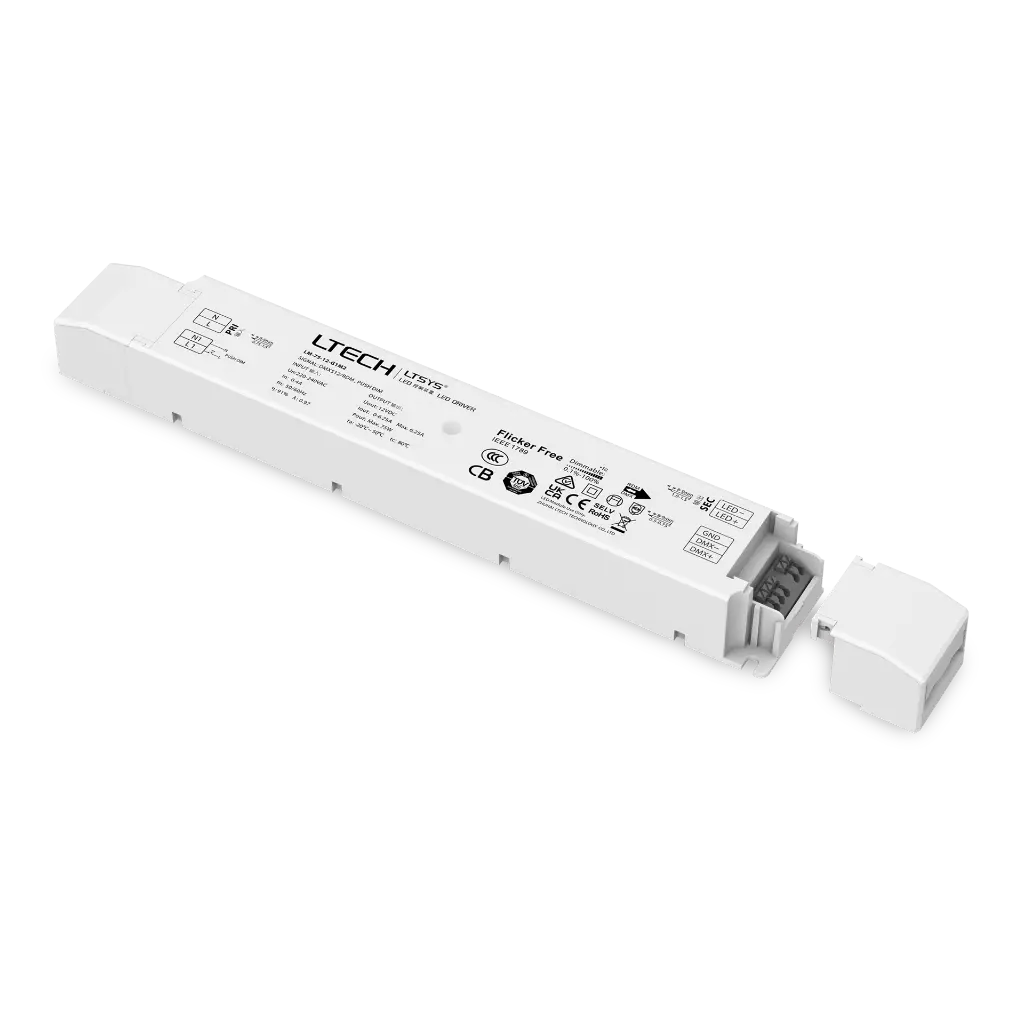

Features DMX512/RDM and Push DIM interfaces, supporting RDM remote device management. It offers 0.1-100% dimming with soft-on and fade-in for comfortable lighting, 0-100% flicker-free output, and high-frequency exemption. Compliant with EU energy efficiency ERP standards, its standby power consumption is under 0.5 W. Built-in thermal management and automatic protection against overheat, overvoltage, overload, and short circuit extend its lifespan. The fully protected plastic housing includes a dismountable end cover, making it suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamp applications. 5-year warranty (Rubycon capacitor).

  • Input Voltage: 220-240Vac
  • Output Voltage: 12Vdc
  • Output Current: Max. 6.25A
  • Output Power: Max. 75W
  • Dimming Interface: DMX/RDM, Push DIM
  • Working Temperature: ta:-20~50°C tc:80°C
  • Dimensions: L293 x W43 x H30 (mm)
  • Weight (G.W): 300g
€ 0.00 € 0.00

  • Control
  • IP Rating
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2811700
HS Code: 85044031

01
General
8 specifications
Control
DMX
Input Voltage
220-240 V
Input Voltage Domain
AC
Channels
1
Output Voltage
12 V
Output Power Range
75 W
Curent load max
6.25A
Dimming Range
0-100% down to 0.01%
02
Operating
3 specifications
IP Rating
IP20
Certificates
CCC · TUV · CB · CE · EAC · RCM · ENEC · ERP · RoHS
Warranty
5 Years
01
All Files
1 file
PDF
LM-75-12-G1M2 User Manual.pdf
1.5 MB
Download
