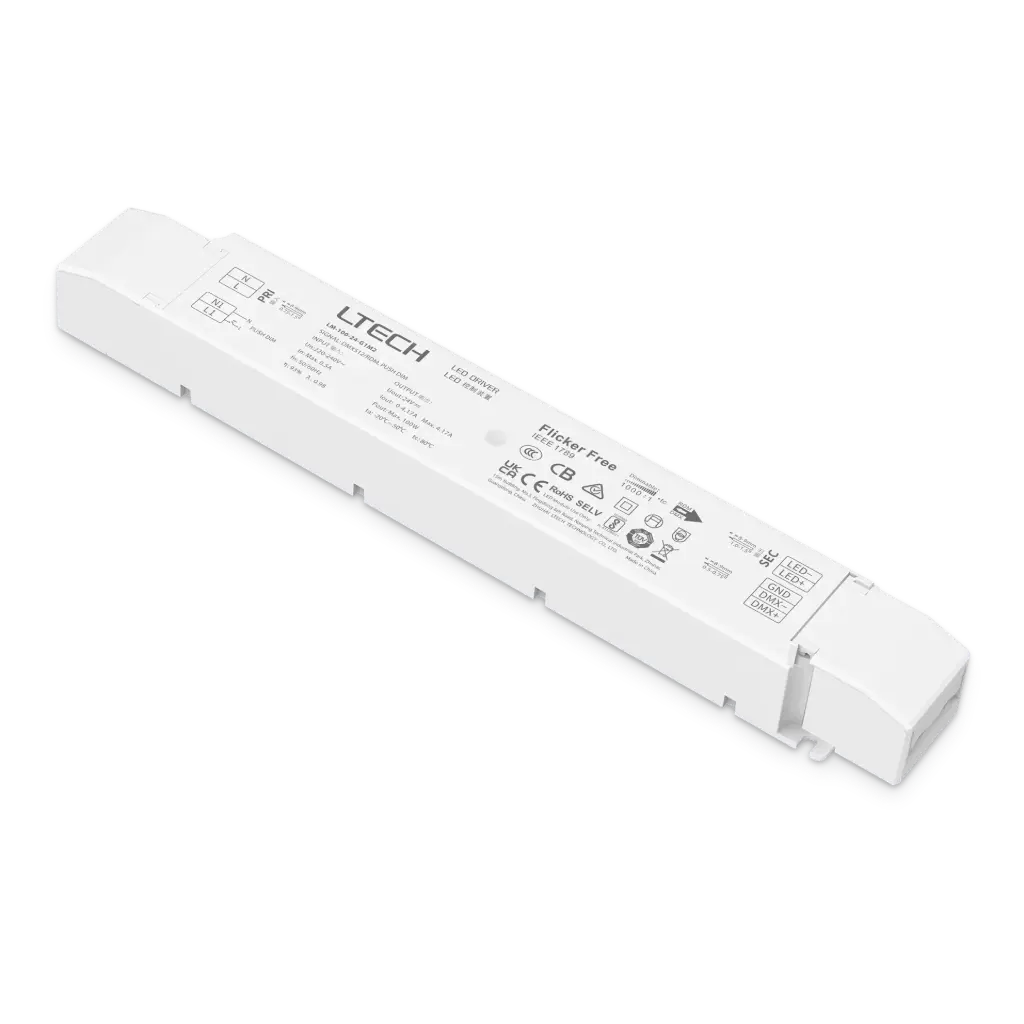

LTECH LTSYS Driver CV DMX 1CH 24V 100W - LM-100-24-G1M2


LED Intelligent Driver (Constant Voltage)

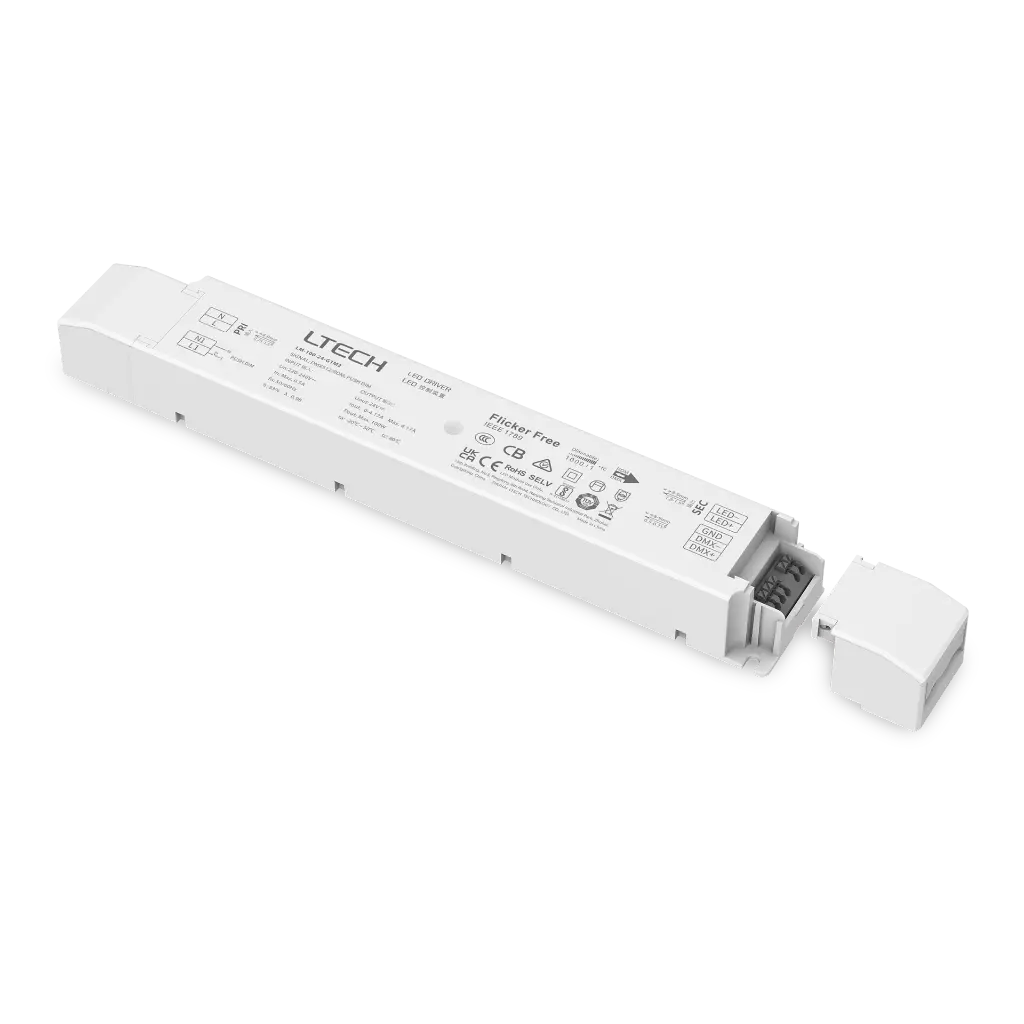

Features DMX512/RDM and Push DIM interfaces, supporting RDM remote device management. It offers 0.1-100% dimming with soft-on and fade-in for comfortable lighting, flicker-free output, and high-frequency exemption. Compliant with EU energy efficiency ERP standards, its standby power consumption is under 0.5 W. Built-in thermal management and automatic protection against overheat, overvoltage, overload, and short circuit extend its lifespan. The fully protected plastic housing includes a dismountable end cover, making it suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamp applications. 5-year warranty (Rubycon capacitor).

  • Input Voltage: 220-240Vac
  • Output Voltage: 24Vdc
  • Output Current: Max. 4.17A
  • Output Power: Max. 100W
  • Dimming Interface: DMX/RDM, Push DIM
  • Working Temperature: ta:-20~50°C tc:80°C
  • Dimensions: L293 x W43 x H30 (mm)
  • Weight (G.W): 300g
€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2812300
HS Code: 85044031

01
General
8 specifications
Control
DMX
Input Voltage
220-240 V
Input Voltage Domain
AC
Channels
1
Output Voltage
24 V
Output Power Range
100
Curent load max
4.17A
Dimming Range
0-100% down to 0.01%
02
Operating
2 specifications
Certificates
CCC · CE · CB · UKCA · FCC · RoHS
Warranty
5 Years
01
All Files
1 file
PDF
LM-100-24-G1M2 User Manual.pdf
1.5 MB
Download
