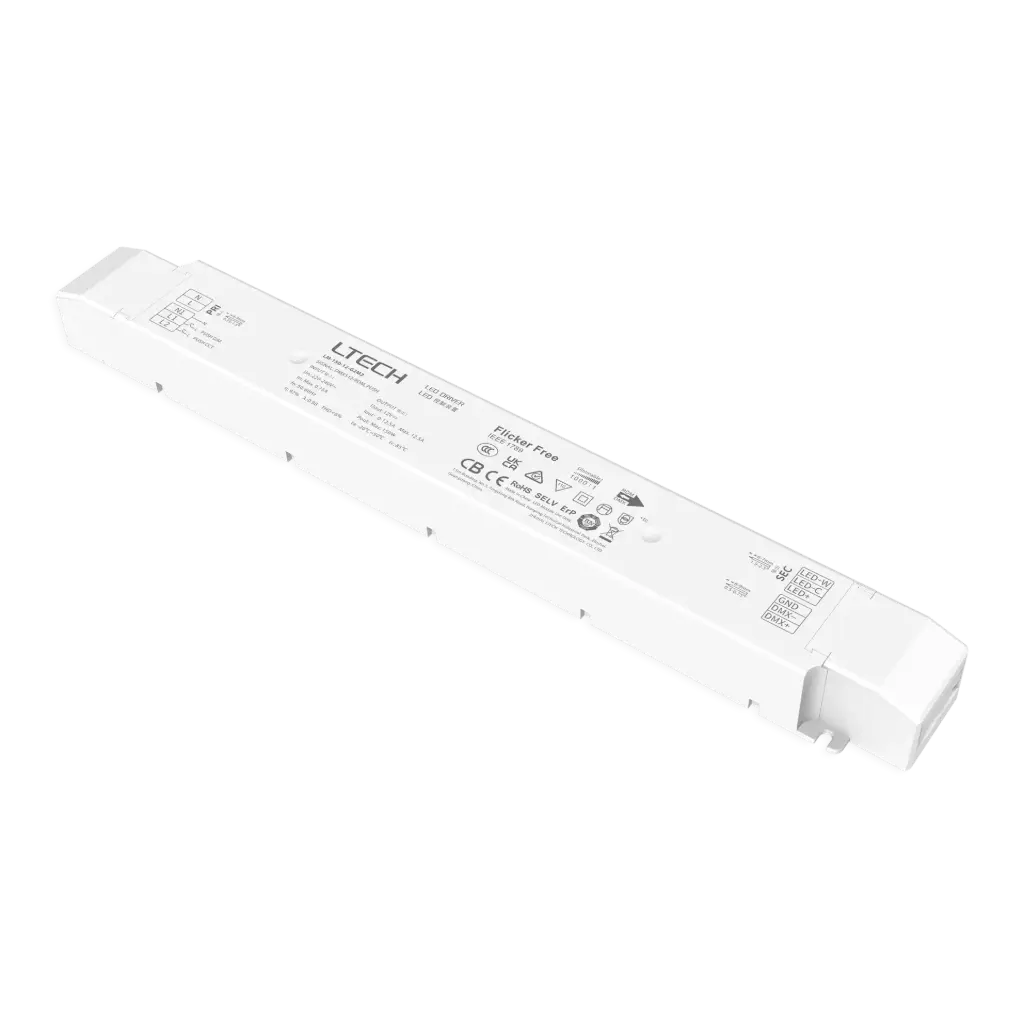

LTECH LTSYS Driver CV DMX 2CH 12V 150W - LM-150-12-G2M2

LED Intelligent CT Driver (Constant Voltage)

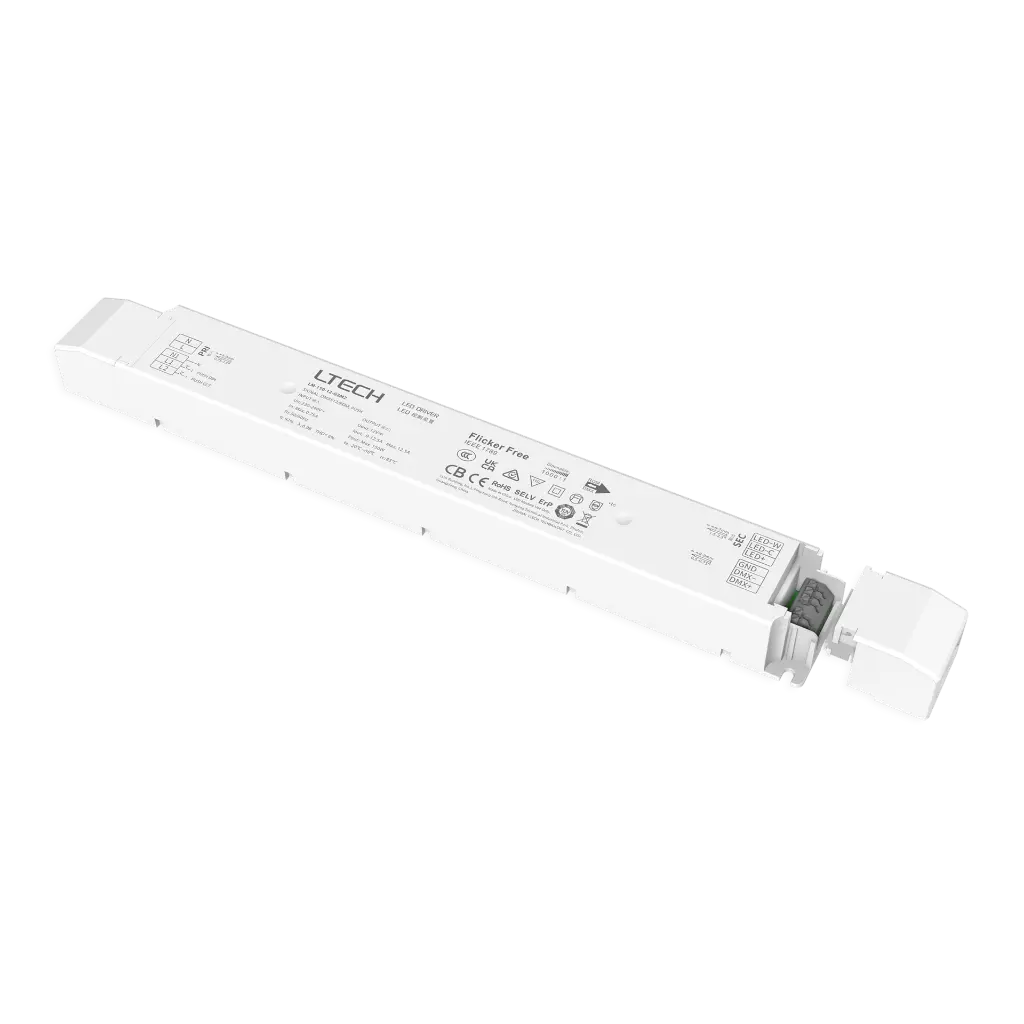

Compact and lightweight with V0 flame-retardant PC housing from SAMSUNG/COVESTRO. Features two independent SELV constant voltage channels with constant power design to maintain brightness during color temperature adjustment (2700-6500K). Supports RDM protocol, soft-on and fade-in dimming, and a 0-100% range down to 0.1%. High efficiency at 93% (PF>0.98, THD<6%) with standby power <0.5W. Includes overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Fully protected housing with dismountable end cover, suitable for indoor Class I/II/III lighting. Up to 50,000-hour lifetime with 5-year warranty (Rubycon capacitor).

Input Voltage: 220-240Vac / 200-280Vdc
Dimming Interface: 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT
Output Voltage: 12Vdc
Output Current: Max. 12.5A
Output Power: Max. 150W
Working Temperature: ta: -20~50°C tc: 85°C
Dimensions: L352 × W43 × H30 (mm)
Weight (G.W): 430g

Control
- DMX
Channels
- 2
Input Voltage
- 220-240 V
Input Voltage Domain
- AC
Output Voltage
- 12 V
Output Power Range
- 150
Current load/ ch
- 12.5A
Curent load max
- 12.5A

Internal Reference: 2813100
HS Code: 85044095

General

8 specifications

Control

Channels

Input Voltage

220-240 V

Input Voltage Domain

Output Voltage

Output Power Range

Current load/ ch

12.5A

Curent load max

12.5A
