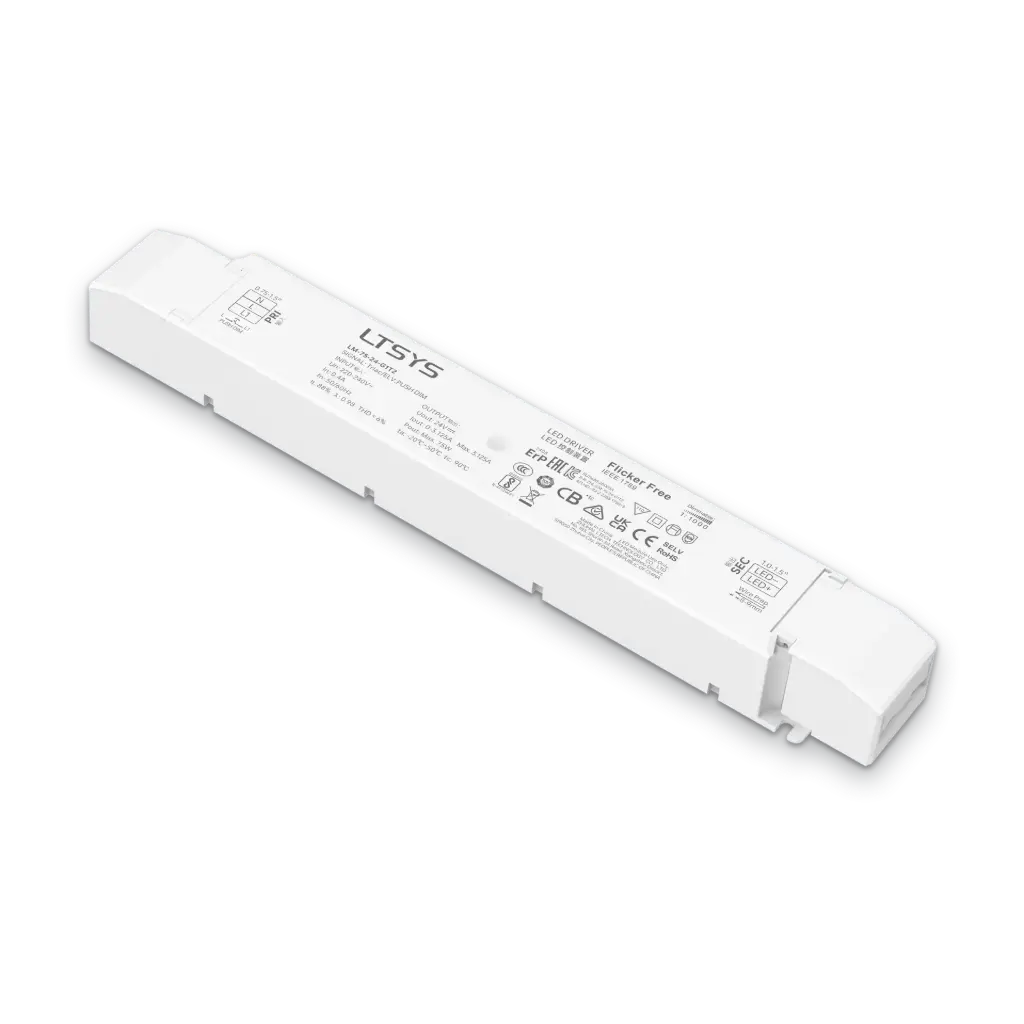

LTECH LTSYS Driver CV TRIAC 1CH 24V 75W - LM-75-24-G1T2

LTECH LTSYS Driver CV TRIAC 1CH 24V 75W - LM-75-24-G1T2


LED Intelligent Driver (Constant Voltage)
It supports Leading Edge (Triac), Trailing Edge (ELV) phase-cut, and Push DIM. It features soft-on and fade-in functionality for more comfortable lighting, and flicker-free operation at high frequencies. The high-efficiency driver achieves 88% efficiency, PF >0.98, and THD <6%. Innovative thermal management ensures intelligent protection of the driver’s lifespan, with automatic recovery from overload, over-temperature, short circuit, and overvoltage conditions. Suitable for indoor lighting applications of Class I/II/III, it offers up to 50,000-hour lifetime.

€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2842300
HS Code: 85044031

01
General
8 specifications
Control
TRIAC
Input Voltage
220-240 V
Input Voltage Domain
AC
Channels
1
Output Voltage
24 V
Output Power Range
75 W
Curent load max
3.125A
Dimming Range
0-100% down to 0.1%
02
Operating
2 specifications
Certificates
CCC · BIS · TUV · CE · KC · RCM · CB · EAC · UKCA · RoHS · ERP
Warranty
5 Years
01
All Files
1 file
PDF
LM-75-24-G1T2 User Manual.pdf
836 KB
