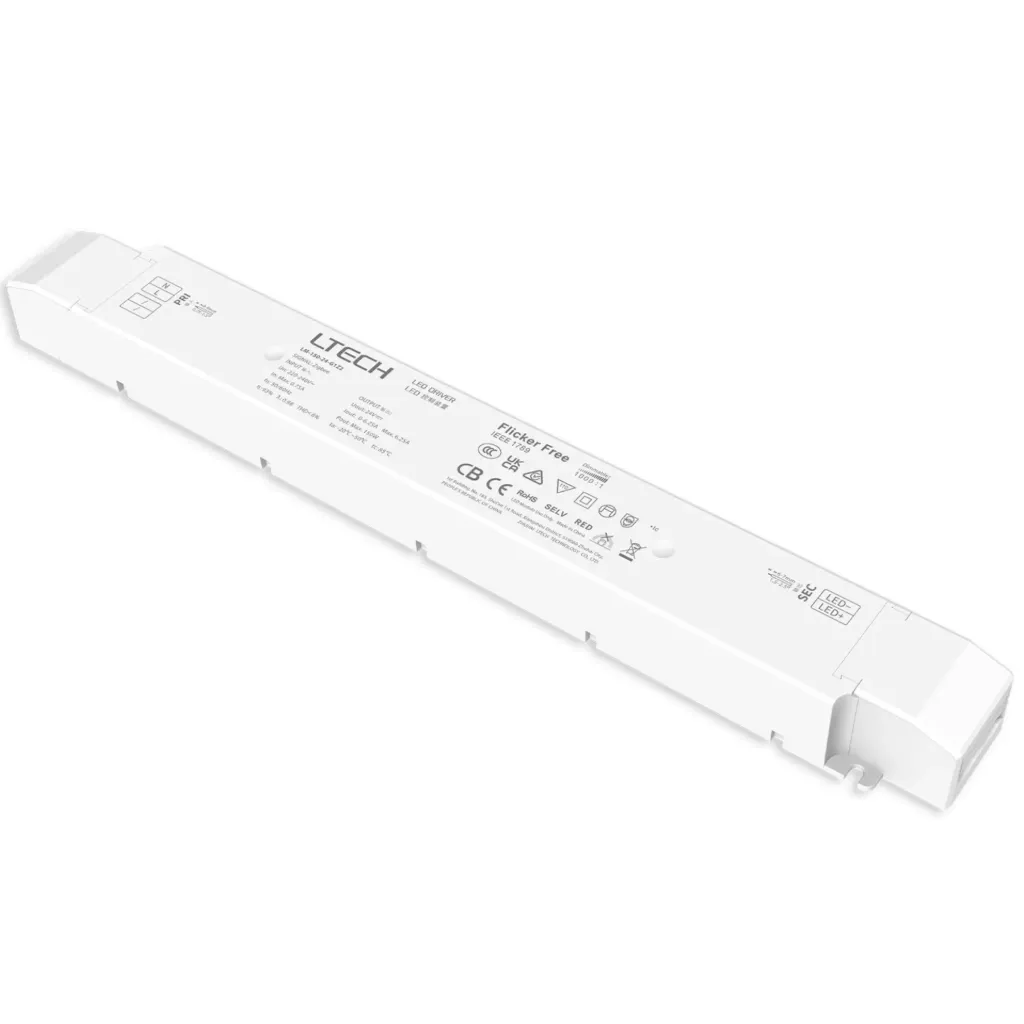

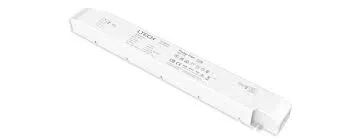

LTECH LTSYS Driver CV TUYA IOT 1CH 24V 75W - LM-150-24-G1Z2



Intelligent LED Driver (Constant Voltage)

Compact and lightweight, with a V0 flame-retardant PC housing from Samsung/Covestro. The clamshell, screwless design with a removable end cap allows easy adjustment of housing length. Features soft-on and fade-in dimming for visual comfort, with a 0-100% dimming range down to 0.1%. Complies with the EU ErP directive (standby power <0.5W) and includes secure signal isolation. Innovative thermal management ensures long life, with protection against overheat, overvoltage, overload, and short circuits, all with automatic recovery. Up to 50,000 hours of lifetime.


€ 0.00 € 0.00 /Unit

  • Channels
  • Control
  • Dimensions (LxWxH) (mm)
  • Dimming Range
  • Input Voltage
  • Input Voltage
  • Input Voltage Domain
  • Input Voltage Domain
  • Output Voltage
  • Package Size
  • Output Power
  • Weight (g)
  • Working Temperature
  • Maximum Output Current
  • Maximum Current

Internal Reference: 2862101
Barcode: 2862101
Internal Reference: 2862101
HS Code: 85044095

Control
Zigbee
Channels
1
Input Voltage
AC (220-240 V) · DC (200-280 V)
Input Voltage Domain
AC · DC
Maximum Current
6.25 A
Output Voltage
24 V
Output Power
150 W
Maximum Output Current
6.25 A
Dimming Range
0-100% down to 0.1%
Working Temperature
-25°C to 50°C
Weight (g)
430g
Dimensions (LxWxH) (mm)
L352xW43xH30(mm)
Package Size
L370×W340×H93(mm)
PDF
LM-150-24-G1Z2 User Manual.pdf
1.8 MB
Download
