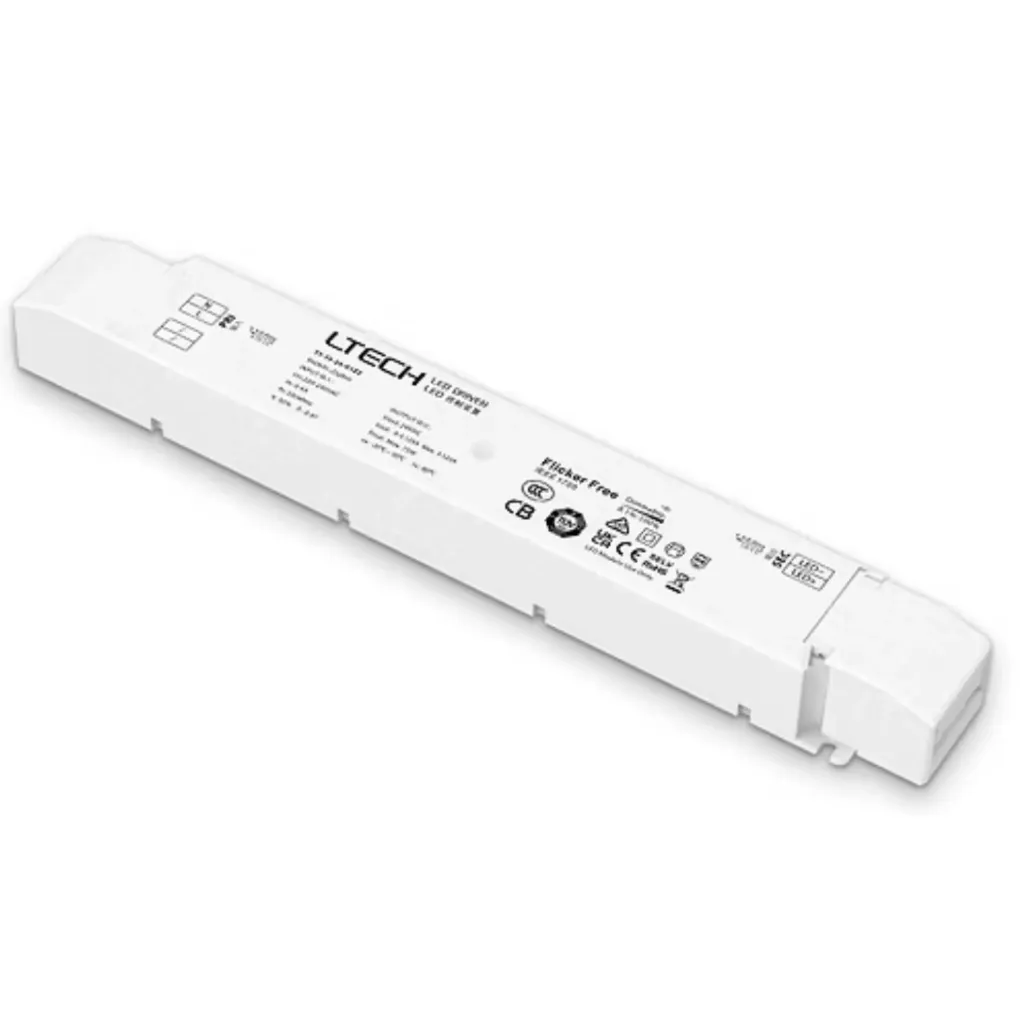

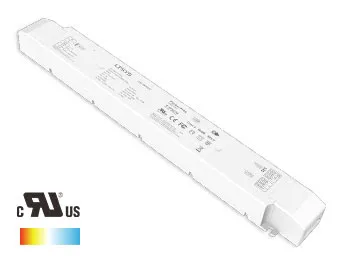

LTECH LTSYS Driver CV TUYA IOT 1CH 24V 75W - LM-75-24-G1Z2


Intelligent LED Driver (Constant Voltage)
This compact, lightweight LED driver features a V0 flame-retardant PC housing from Samsung/Covestro, with a clamshell, screwless design for strain relief and removable end caps for adjustable length. It uses Zigbee and Tuya protocols for reliable, high-capacity networking. The driver supports soft-on and fade-in dimming, 0-100% dimming down to 0.1%, and a high-frequency exemption level for flicker-free operation. Compliant with the EU ErP Directive, standby power is under 0.5 W. Built-in thermal management and protections against overheat, overvoltage, overload, and short circuit ensure safety and durability. Suitable for Class I/II/III indoor fixtures, it offers up to 50,000-hour lifetime and a 5-year warranty (Rubycon capacitor).

  • Input Voltage: 220-280Vdc / 198-264Vac
  • Input Current: Max. 0.4A/ 230Vac
  • Output Voltage: 24Vdc
  • Output Current: Max. 3.125A
  • Output Power: Max. 75W
  • Working Temperature: ta: -20~50°C tc: 80°C
  • Dimensions: L293 x W43 x H30 (mm)
  • Gross Weight: 300g
€ 0.00 € 0.00

  • Control
  • IP Rating
  • Input Voltage
  • Input Voltage
  • Input Voltage Domain
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Curent load max
  • Dimming Range
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature

Internal Reference: 2862105
HS Code: 85044031

Control
Zigbee
Input Voltage
220-280 V · 198-264 V
Input Voltage Domain
AC · DC
Channels
1
Output Voltage
24 V
Output Power Range
75 W
Curent load max
3.125A
Dimming Range
0-100% down to 0.1%
IP Rating
IP20
Working Temperature
-25°C-50°C
Weight
350g
Dimensions
L293xW43xH30(mm)
Package Size
L315×W230×H215(mm)
PDF
LM-75-24-G1Z2 User Manual.pdf
934 KB
Download
