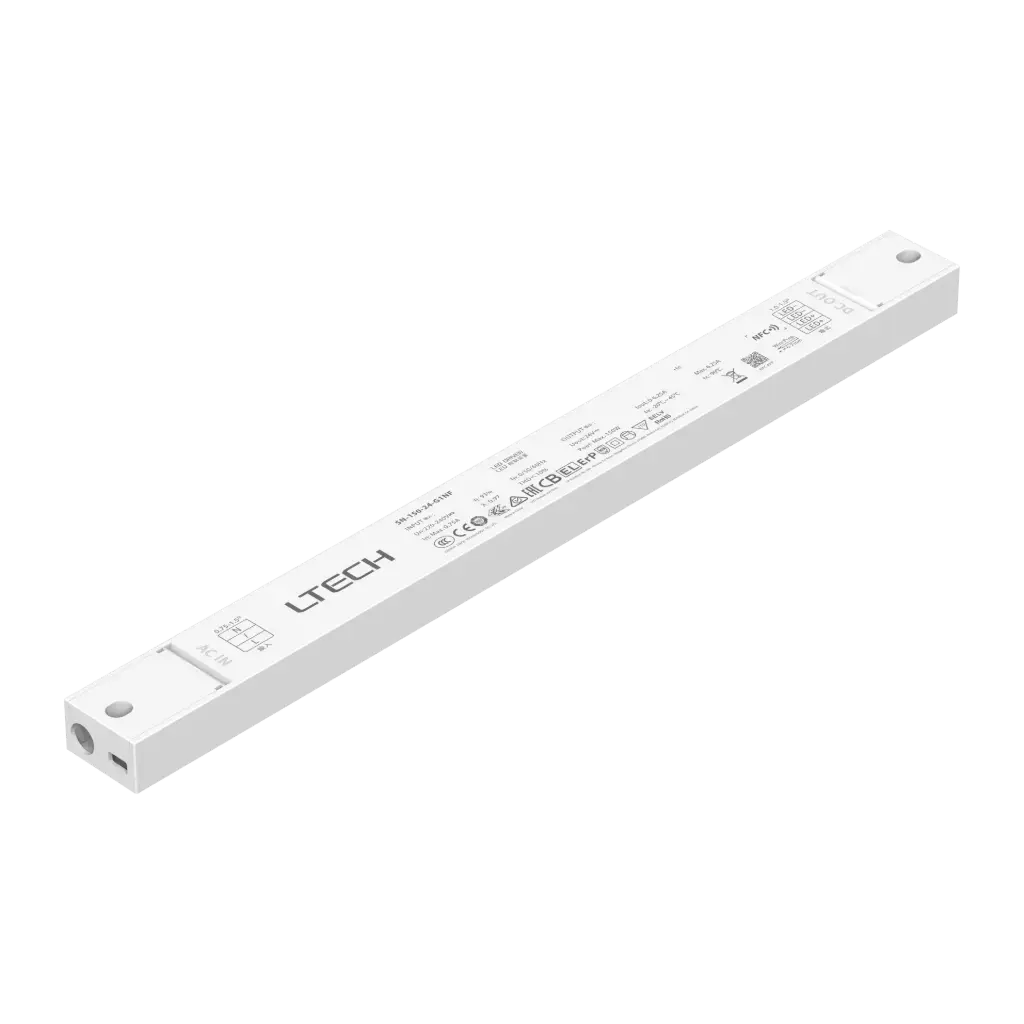

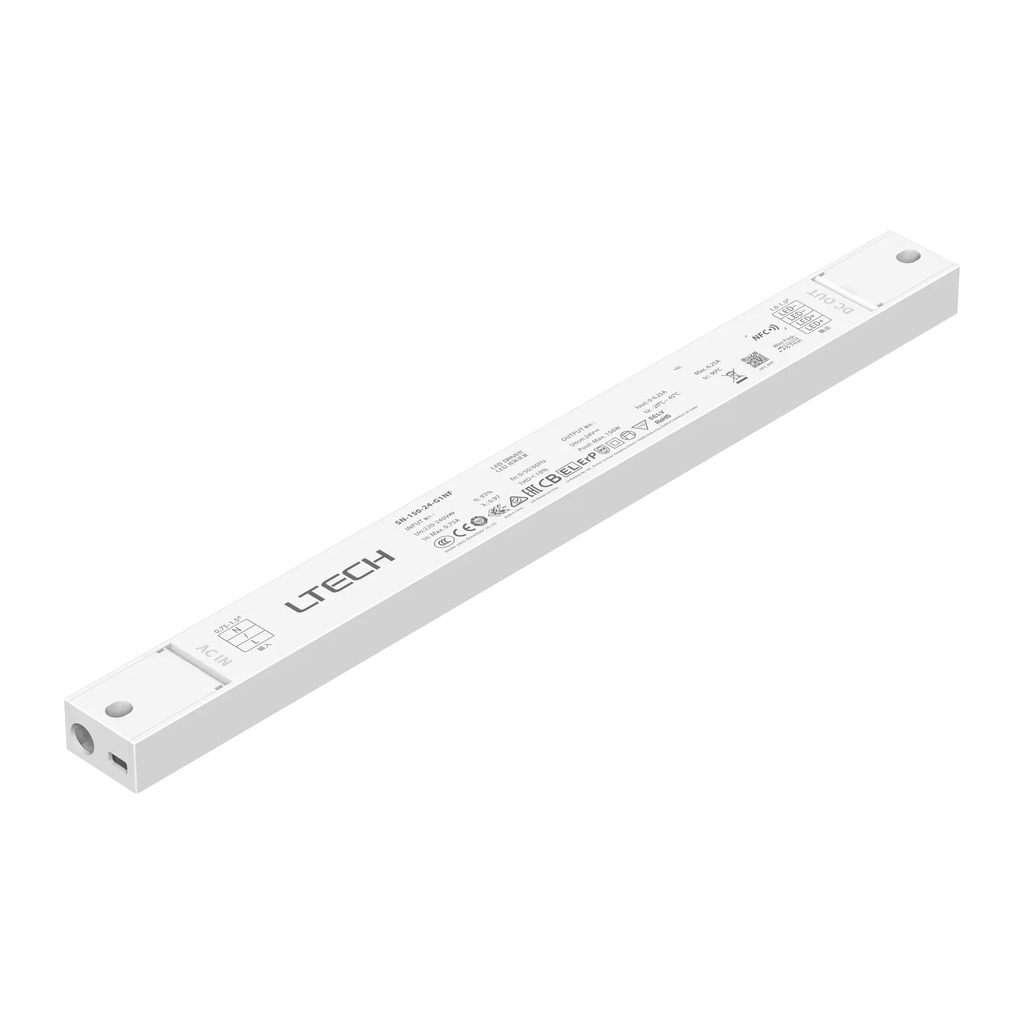

LTECH LTSYS Driver On/Off CV 150W 24V NFC - SN-150-24-G1NF

LED Driver (Constant Voltage)

Ultra-thin, compact LED driver with V0 flame-retardant PC housing and clamshell wire clamping for easy connections. Adjust max brightness, power-on fade time, PWM frequency, and other settings via NFC-enabled phone, syncing data with the app. Features soft-on/fade-in dimming for visual comfort, intelligent thermal management, and protection against overheat, overvoltage, overload, and short circuits with automatic recovery. Suitable for Class I/II/III indoor fixtures, including LED strips and magnetic track lights. 5-year warranty (Rubycon capacitor).

Quantity	Unit Price

Products in stock ordered before 15:00 on working days are shipped the same day.

Internal Reference: 2510414
Barcode: 6971379115463
HS Code: 85044095

General

7 specifications

Input Voltage

AC (220-240 V)

Input Voltage Domain

AC · DC

Maximum Current

6.25 A

Output Voltage

Output Power

150 W

Maximum Output Current

6.25 A

Dimming Range

0-100% down to 0.1%

Operating

2 specifications

Working Temperature

-20°C to 45°C

IP Rating

Physical

2 specifications

Weight (g)

Dimensions (LxWxH) (mm)

L350xW30xH18(mm)

User Manuals

1 file

SN-150-24-G1NF User Manual.pdf

1.8 MB

Download
