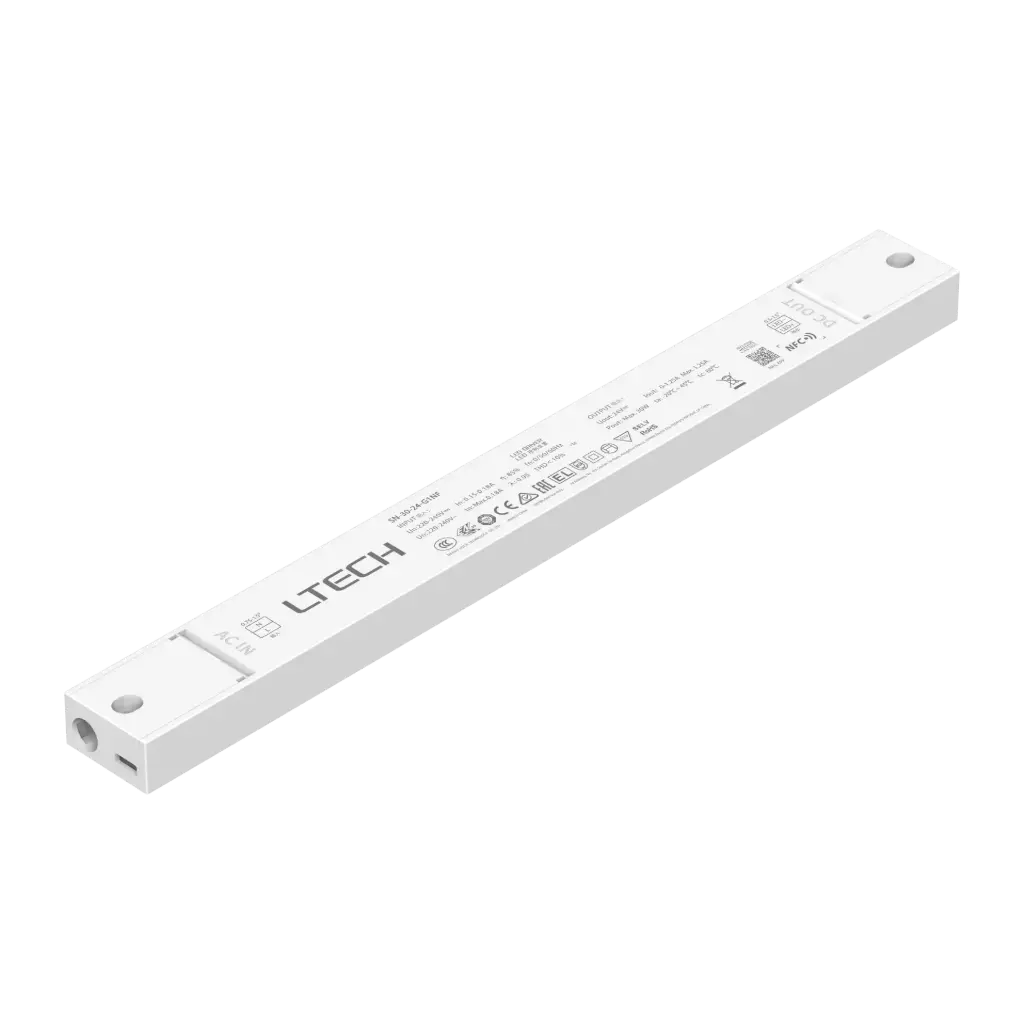

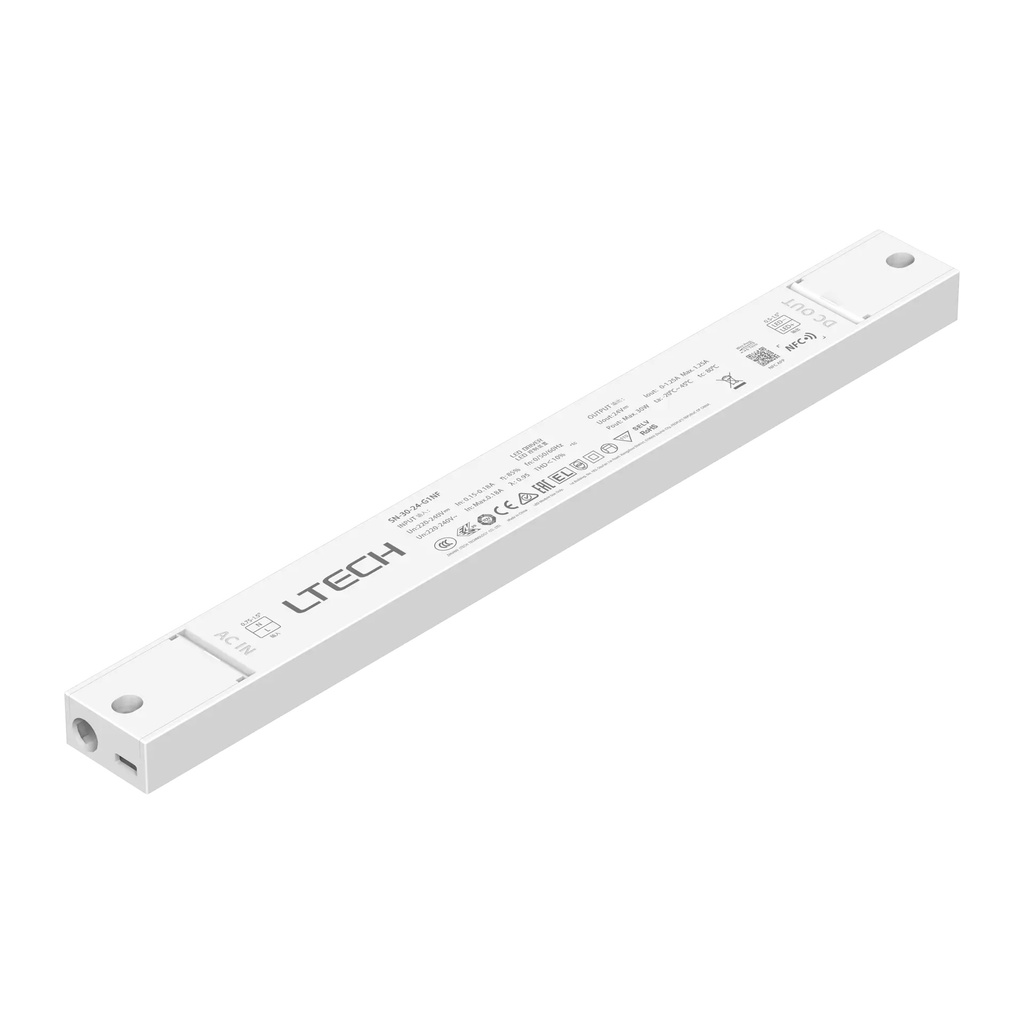

LTECH LTSYS Driver On/Off CV 30W 24V NFC - SN-30-24-G1NF


LED Driver (Constant Voltage)
This ultra-thin, compact LED driver features a housing made from V0 flame-retardant PC materials. It has a clamshell twist-screw integrated wire structure with a wide opening angle and an auxiliary buckle for secure closure. The maximum brightness, power transition time, and other parameters can be adjusted via a mobile app, allowing seamless driver data interaction. It supports soft-on and fade-in dimming for enhanced visual comfort. Innovative thermal management technology extends the driver’s lifespan, and it includes protection against overheat, overvoltage, overload, and short circuits with automatic recovery. It is suitable for indoor LED strip lights and magnetic track lights.


€ 0.00 € 0.00 /Unit

  • Input Voltage
  • Input Voltage Domain
  • Input Voltage Domain
  • Working Temperature
  • IP Rating
  • Output Voltage
  • Output Power
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Maximum Current
  • Maximum Output Current

Internal Reference: 2510411
Barcode: 6971379116538
Internal Reference: 2510411
HS Code: 85044095

Input Voltage
AC (220-240 V)
Input Voltage Domain
AC · DC
Maximum Current
1.25 A
Output Voltage
24 V
Output Power
30 W
Maximum Output Current
1.25 A
Working Temperature
-20°C to 45°C
IP Rating
IP20
Weight (g)
190g
Dimensions (LxWxH) (mm)
L300xW30xH17(mm)
PDF
SN-30-24-G1NF User Manual.pdf
2.0 MB
Download
Document
