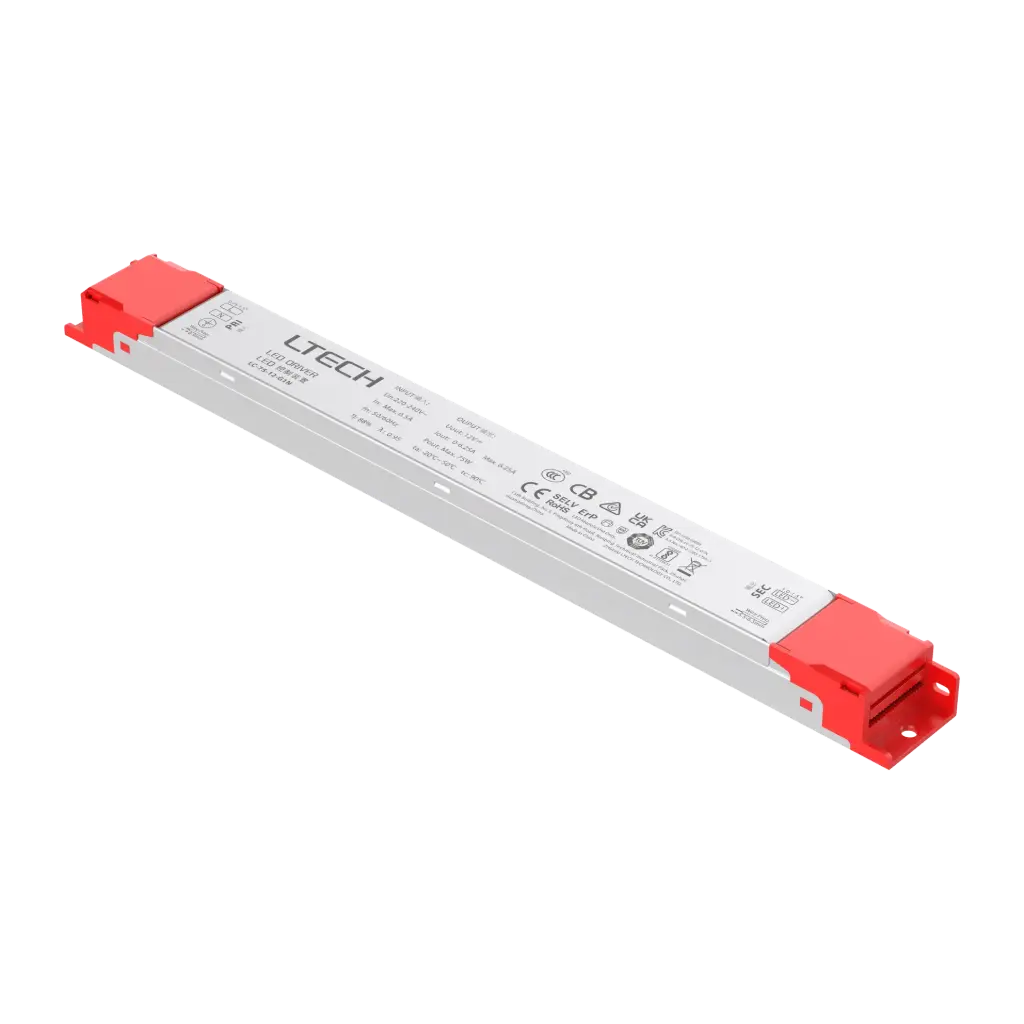

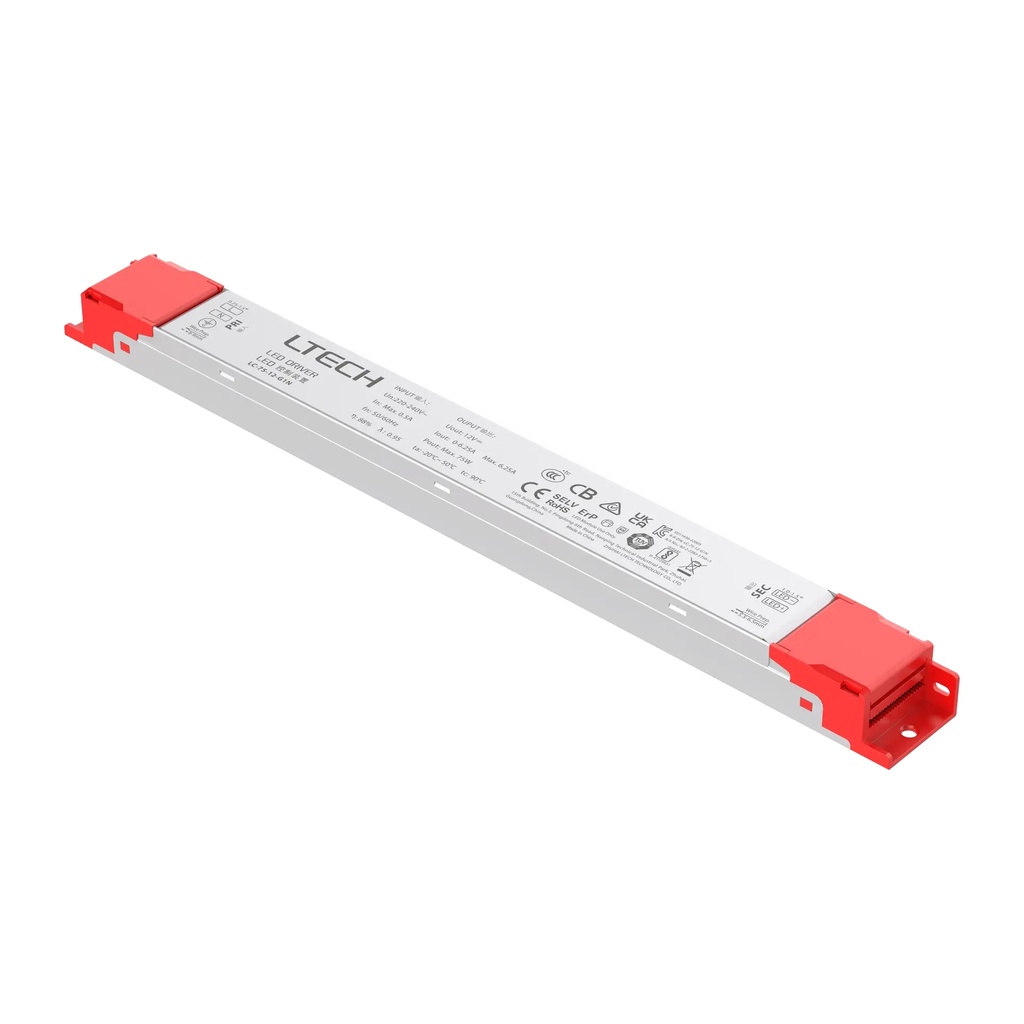

LTECH LTSYS Driver On/Off CV 75W 12V - LC-75-12-G1N


Non-Dimmable LED Driver (Constant Voltage)
an independent external driver designed with a clamshell, screwless structure for strain relief. It delivers high performance and efficiency, featuring a power efficiency of 89%, power factor above 0.95, and low total harmonic distortion (THD < 15%). Innovative thermal management technology protects the driver and extends its lifespan. Built-in safety features include overheat, overvoltage, overload, and short circuit protection, with automatic recovery. Its isolated design makes it suitable for indoor lighting applications of Type I, II, or III, and it is ideal for office, decorative, and commercial lighting projects.


€ 0.00 € 0.00 /Unit

Quantity Unit Price
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Current
  • Maximum Output Current
Products in stock ordered before 15:00 on working days are shipped the same day.

Internal Reference: 2510112
Barcode: 6971379111892
HS Code: 85044095

Input Voltage
AC (220-240 V)
Input Voltage Domain
AC
Maximum Current
6.25 A
Output Voltage
12 V
Output Power
75 W
Maximum Output Current
6.25 A
Working Temperature
-20°C to 55°C
Weight (g)
260g
Dimensions (LxWxH) (mm)
L315xW31xH21(mm)
Package Size
L335xW265xH120(mm)
PDF
LC-75-12-G1N User Manual.pdf
1.3 MB
Download
Document
