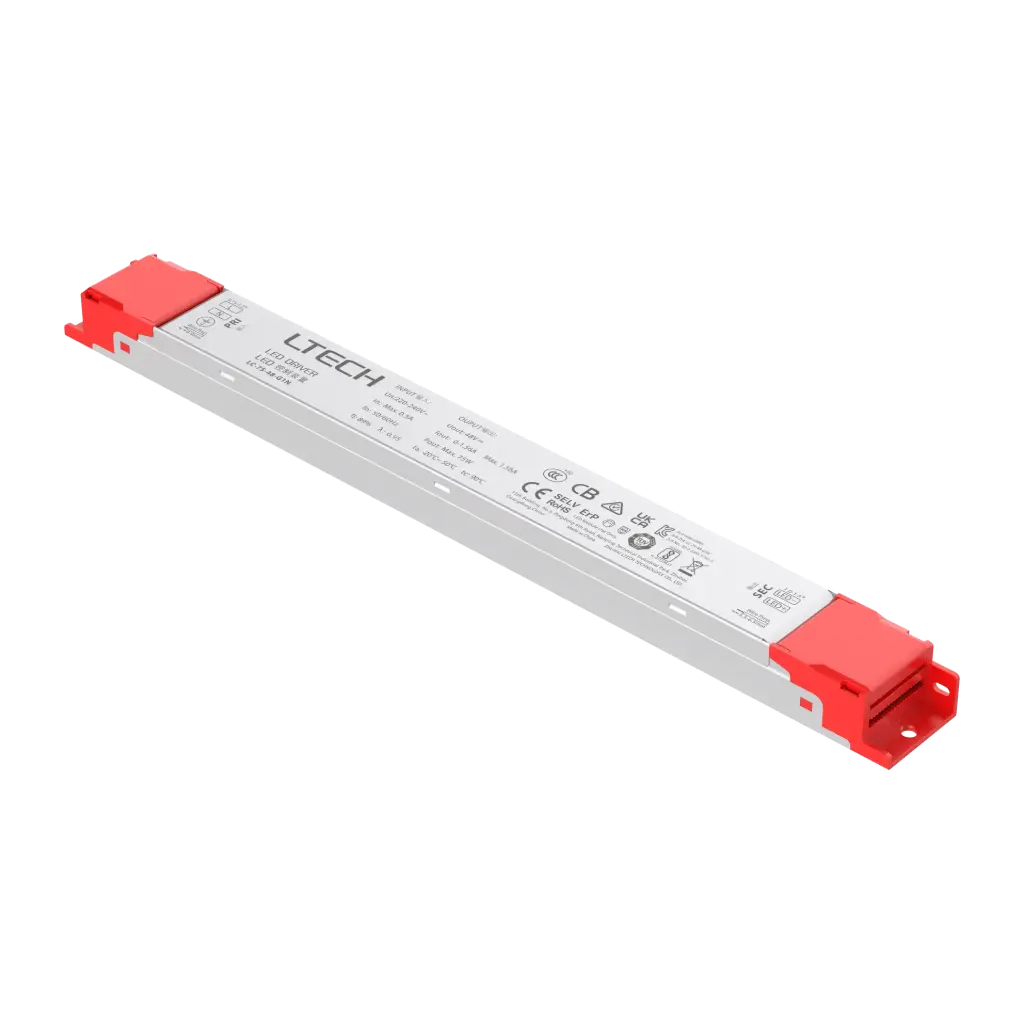

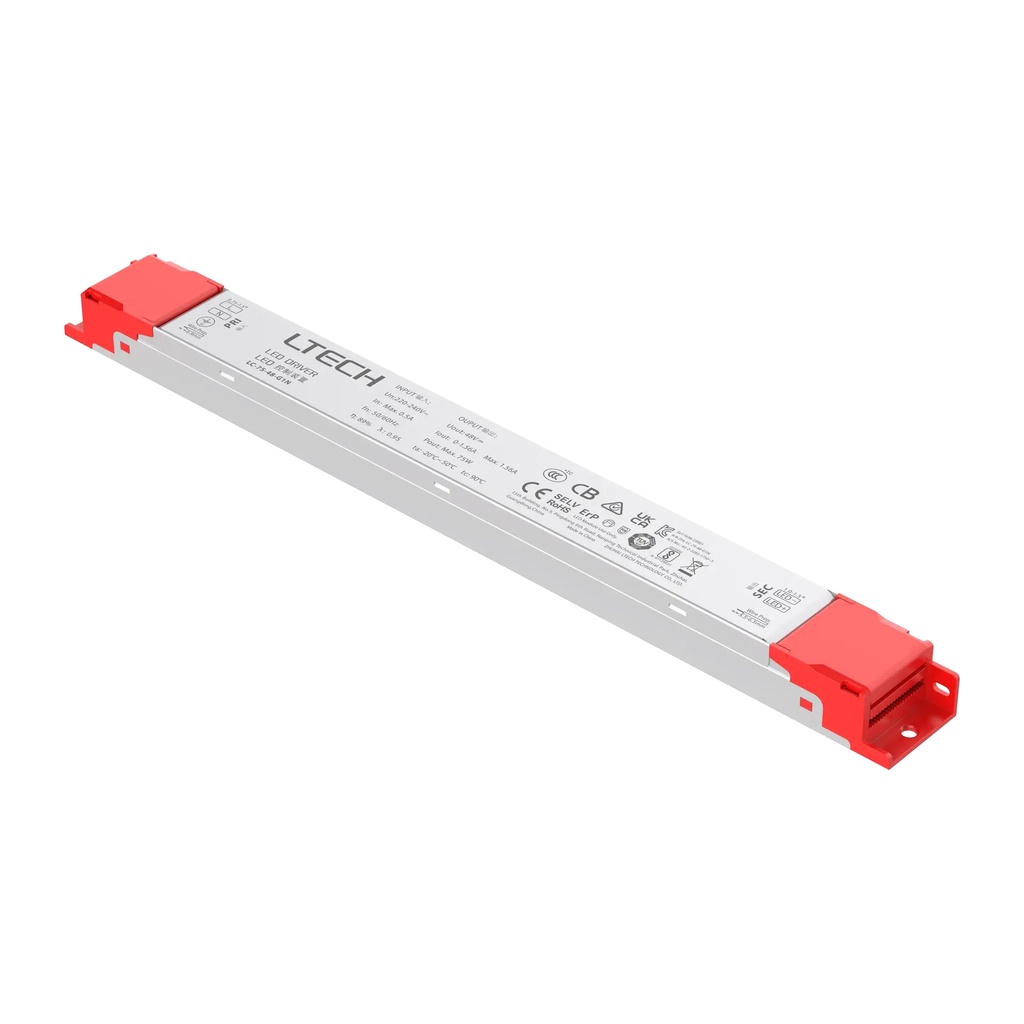

LTECH LTSYS Driver On/Off CV 75W 48V - LC-75-48-G1N

Non-Dimmable LED Driver (Constant Voltage)

An independent external driver designed with a clamshell, screwless structure for strain relief. It delivers high performance and efficiency, featuring a power efficiency of 89%, power factor above 0.95, and low total harmonic distortion (THD < 15%). Innovative thermal management technology protects the driver and extends its lifespan. Built-in safety features include overheat, overvoltage, overload, and short circuit protection, with automatic recovery. Its isolated design makes it suitable for indoor lighting applications of Type I, II, or III, and it is ideal for office, decorative, and commercial lighting projects.

Input Voltage: 220-240Vac
Output Voltage: 48Vdc
Output Current: Max. 1.56A
Working Temperature: ta:-20~50°C tc:90°C
Dimensions: L315 x W233 x H21 (mm)

Input Voltage
- AC (220-240 V)
Input Voltage Domain
- AC
Working Temperature
- -20°C to 55°C
Output Voltage
- 48 V
Output Power
- 75 W
Curent load max
- 1.56A
Weight (g)
- 260g
Dimensions (LxWxH) (mm)
- L315xW31xH21(mm)
Package Size
- L335xW265xH120(mm)

Internal Reference: 2510148
Barcode: 6971379111915
Internal Reference: 2510148
HS Code: 85044095

General

5 specifications

Input Voltage

AC (220-240 V)

Input Voltage Domain

Output Voltage

Output Power

Curent load max

1.56A

Operating

1 specification

Working Temperature

-20°C to 55°C

Physical

3 specifications

Weight (g)

Dimensions (LxWxH) (mm)

L315xW31xH21(mm)

Package Size

L335xW265xH120(mm)

User Manuals

1 file

LC-75-48-G1N User Manual.pdf

1.3 MB

Download
