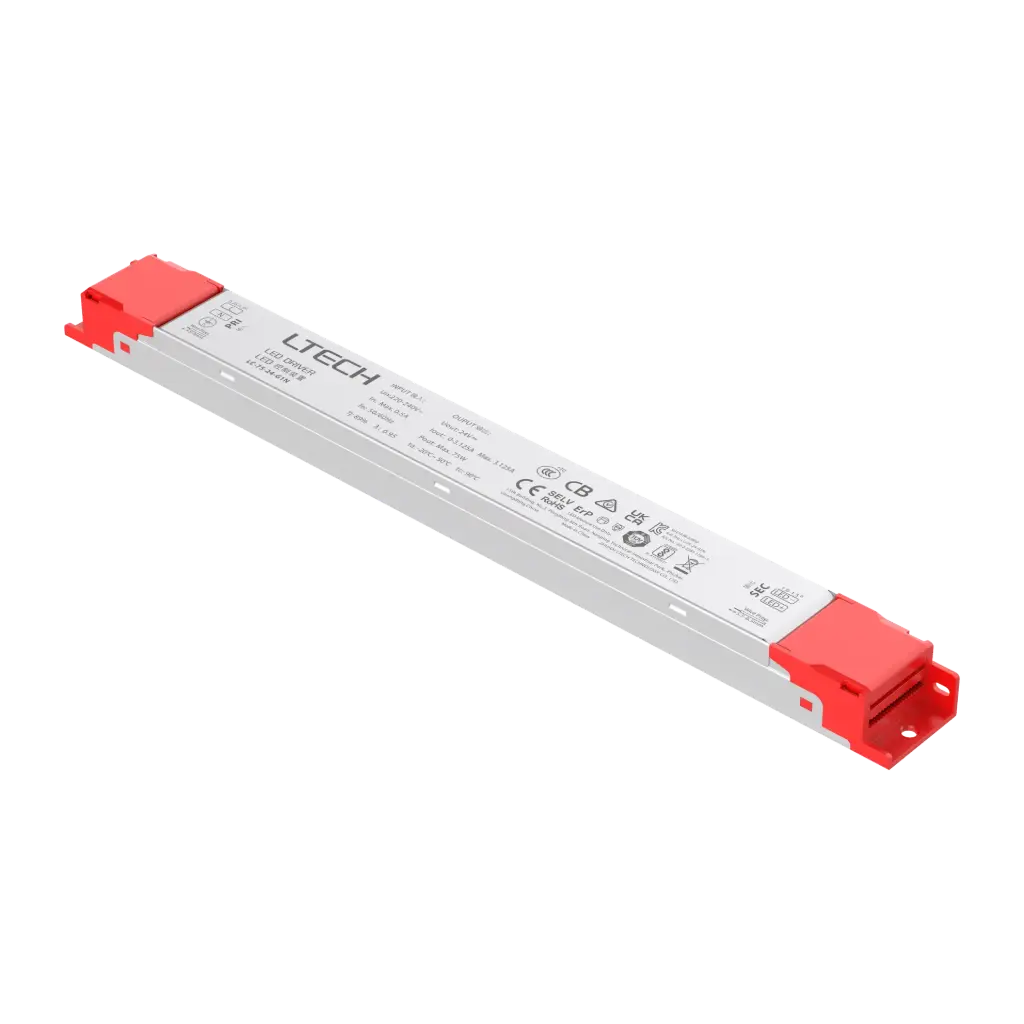

LTECH LTSYS Driver On/Off CV 75W 24V - LC-75-24-G1N

Non-Dimmable LED Driver (Constant Voltage)

An independent external driver designed with a clamshell, screwless structure for strain relief. It delivers high performance and efficiency, featuring a power efficiency of 89%, power factor above 0.95, and low total harmonic distortion (THD < 15%). Innovative thermal management technology protects the driver and extends its lifespan. Built-in safety features include overheat, overvoltage, overload, and short circuit protection, with automatic recovery. Its isolated design makes it suitable for indoor lighting applications of Type I, II, or III, and it is ideal for office, decorative, and commercial lighting projects.

Input Voltage: 220-240Vac
Output Voltage: 24Vdc
Output Current: Max. 3.125A
Working Temperature: ta:-20~50°C tc:90°C
Dimensions: L315 x W233 x H21 (mm)

Input Voltage
- 220-240 V
Input Voltage Domain
- AC
Output Voltage
- 24 V
Output Power Range
- 75 W
Curent load max
- 3.125A
Weight
- 260g
Dimensions
- L315xW31xH21(mm)
Package Size
- L335xW265xH120(mm)
Working Temperature
- -20°C-55°C

Internal Reference: 2510124
HS Code: 85044031

General

5 specifications

Input Voltage

220-240 V

Input Voltage Domain

Output Voltage

Output Power Range

Curent load max

3.125A

Operating

1 specification

Working Temperature

-20°C-55°C

Physical

3 specifications

Weight

Dimensions

L315xW31xH21(mm)

Package Size

L335xW265xH120(mm)

All Files

1 file

LC-75-24-G1N User Manual.pdf

1.3 MB
