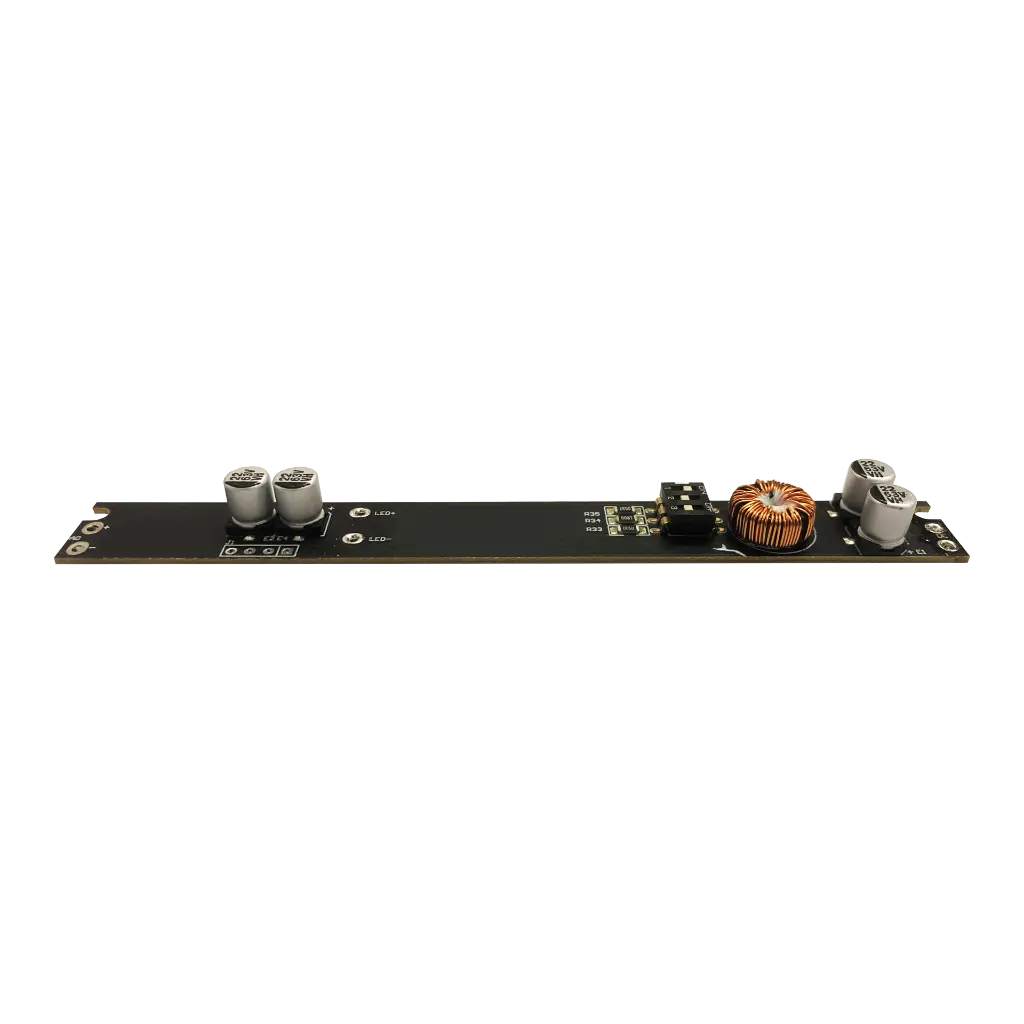

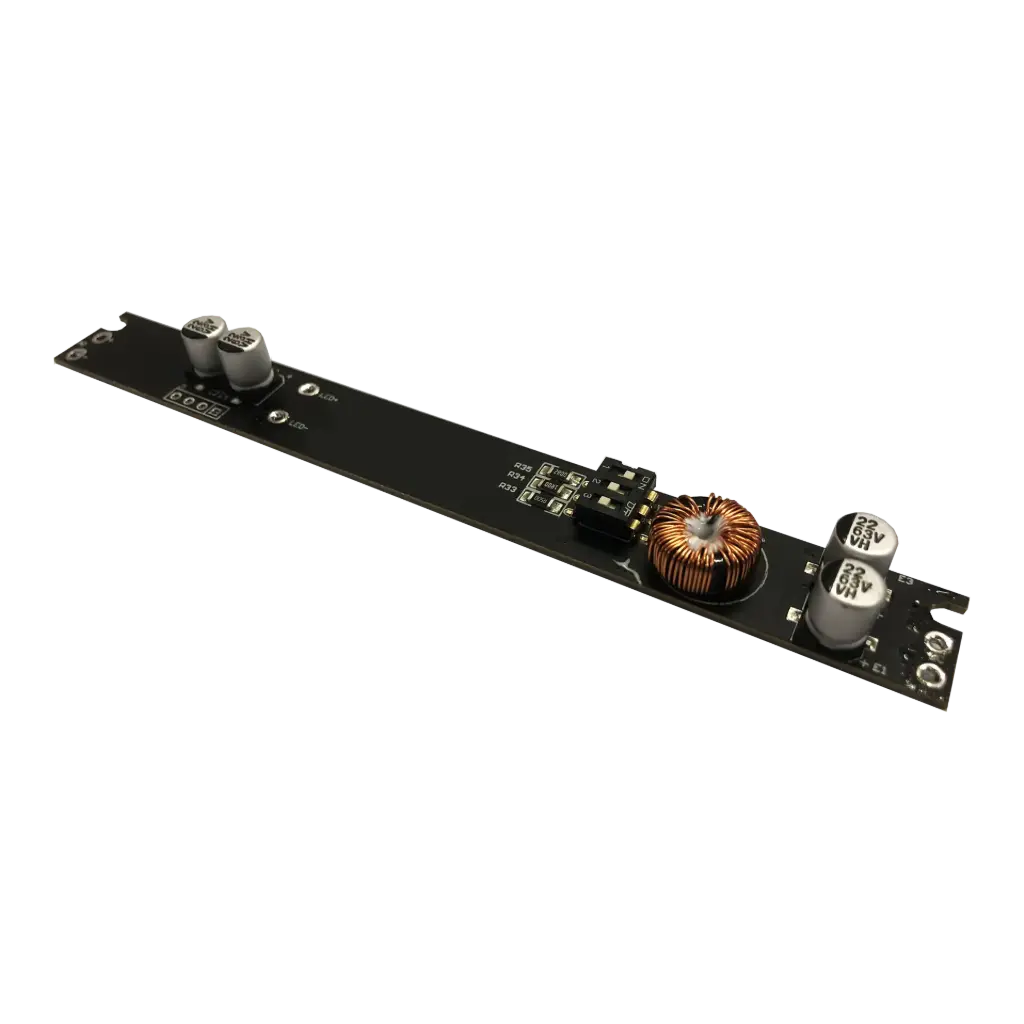

0-10V Constant Current Driver
Designed for magnetic and linear lamps. No input polarity required. Offers multiple output current settings with DC-to-DC constant current output. Automatically recognizes 0-10V or 1-10V input signals. Compact, suitable for STUCCHI standard housings. Magnetic installation ensures quiet operation without high-frequency noise. Smooth, flicker-free dimming. Built-in protections for short circuit, overload, no-load, and reverse connection. 5-year warranty.
- Input Voltage: 48Vdc ±5% (No polarity)
- Input Current: 0.38A
- Output Voltage: 10-42Vdc
- Output Current: 100-400mA
- Output Power: 1W-16.8W
- Working Temperature: ta: -30~60°C tc: 87°C
- Dimensions: L125 × W14 × H10 (mm)
- Weight (G.W.): 15g±2g
