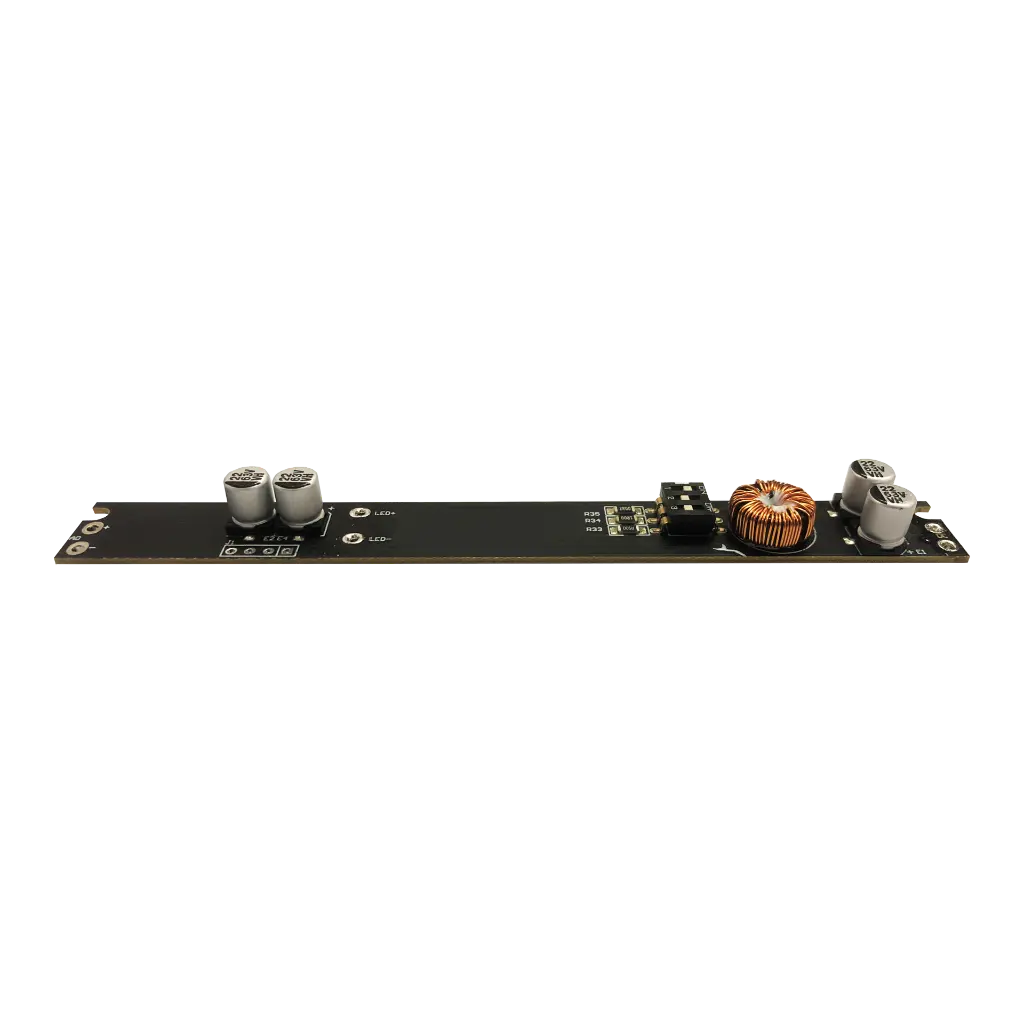

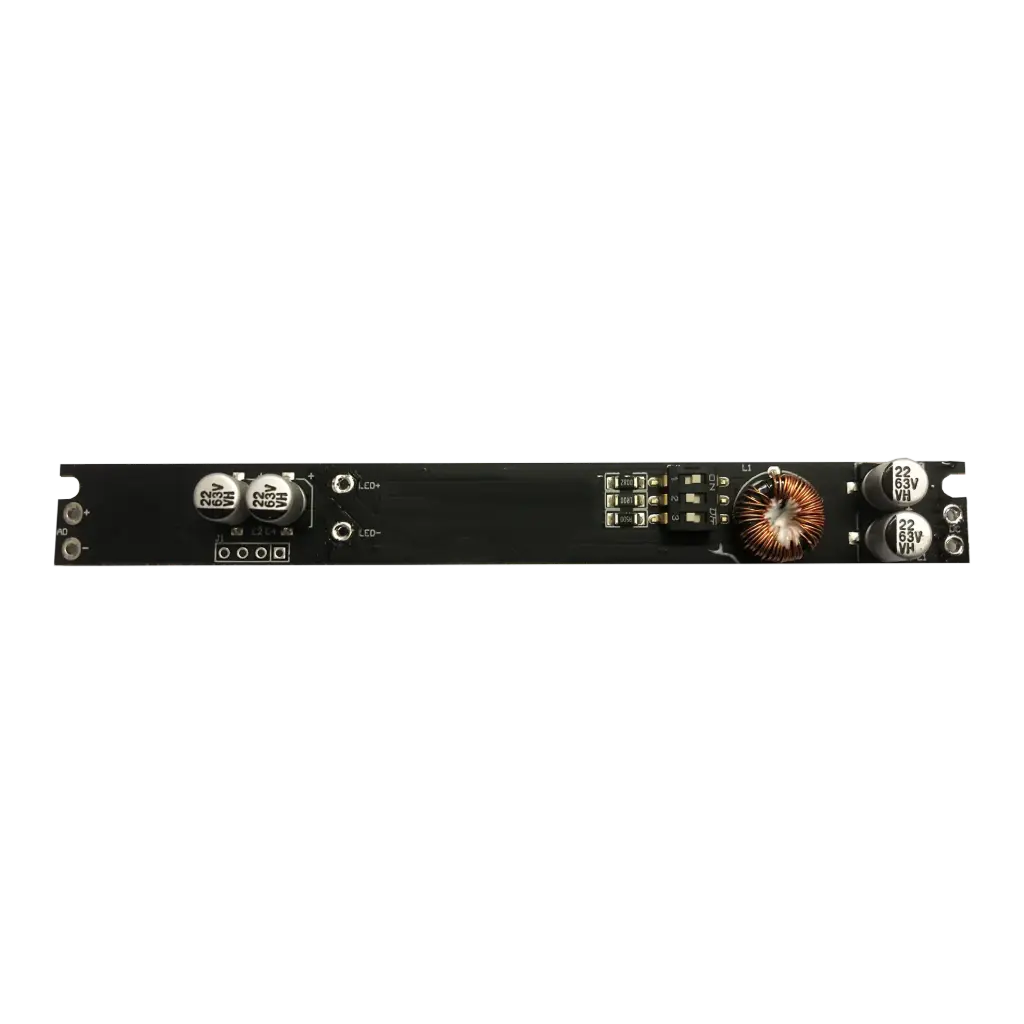

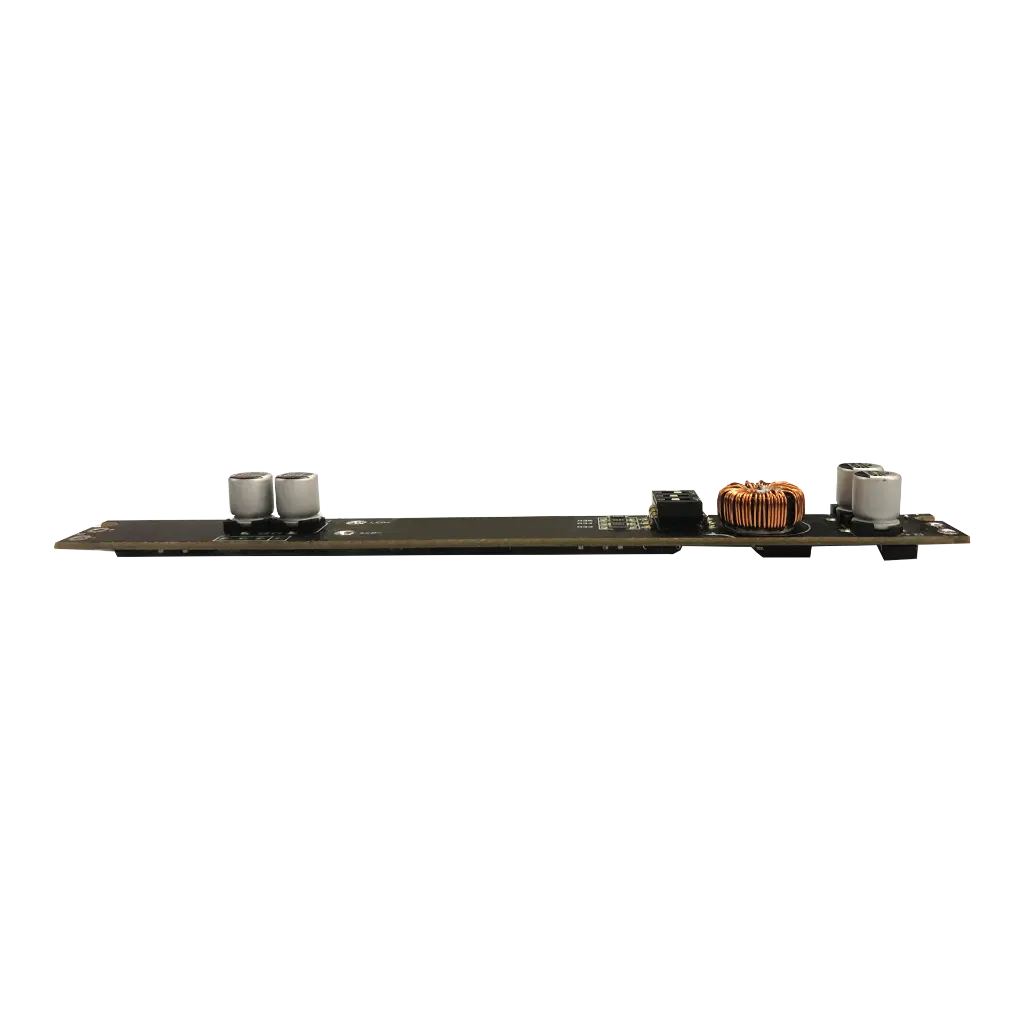

LTECH LTSYS Track Driver CC 0-10V 1CH 350-700mA 48V - MT-350-700-D1A1


0-10V Constant Current Driver
Designed for magnetic and linear lamps. No input polarity required. Offers multiple output current settings with DC-to-DC constant current output. Automatically recognizes 0-10V or 1-10V input signals. Compact, suitable for STUCCHI standard housings. Magnetic installation ensures quiet operation without high-frequency noise. Smooth, flicker-free dimming. Built-in protections for short circuit, overload, no-load, and reverse connection.

€ 0.00 € 0.00

  • Input Voltage Domain
  • Output Current
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2900105
HS Code: 85044031

General
Input Voltage Domain DC
Output Current 350-700mA
Channels 1
Control 0-10V
Output Power Range 29.4 W
Input Voltage 48 V
Output Voltage 10-42 V
Dimming Range 0-100% down to 1%
Operating
Certificates CE , RoHS , FCC
Warranty 5 Years
  • MT-350-700-D1A1 User Manualpdf
