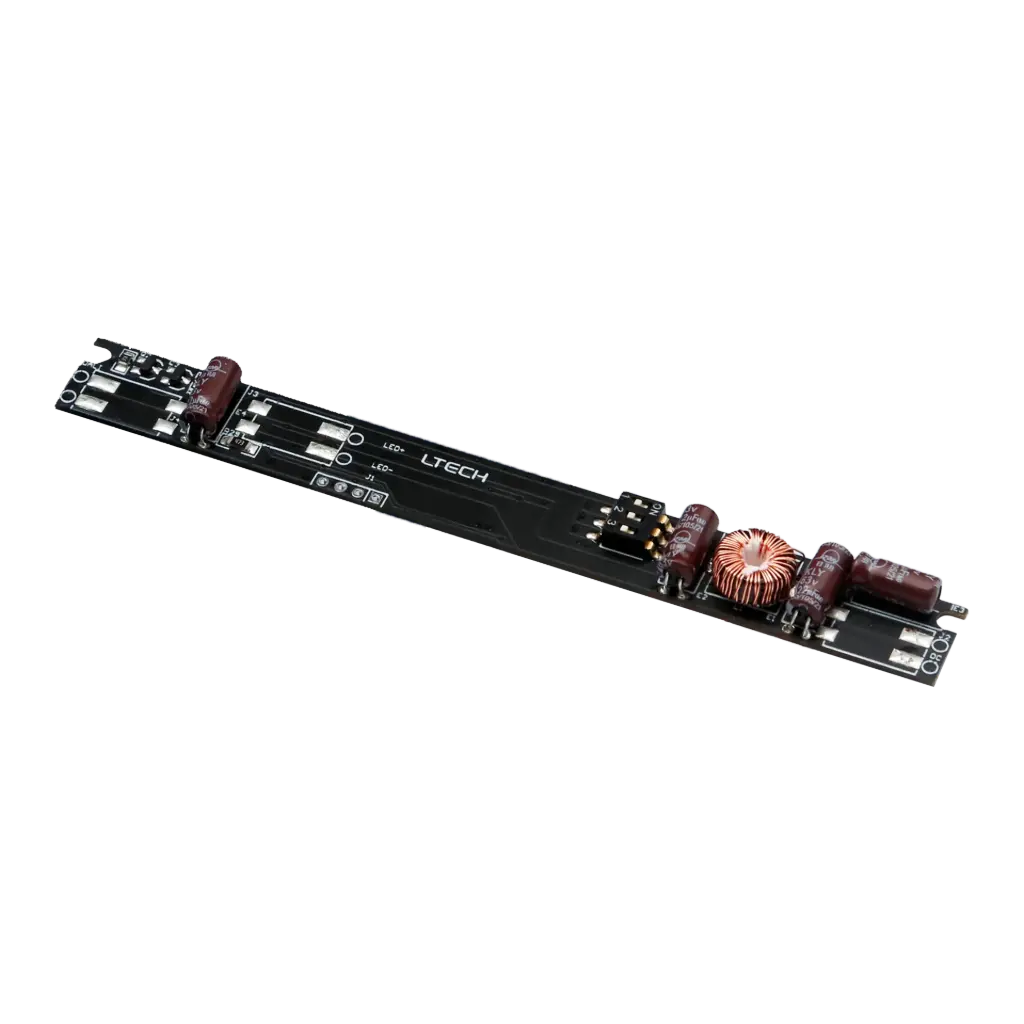

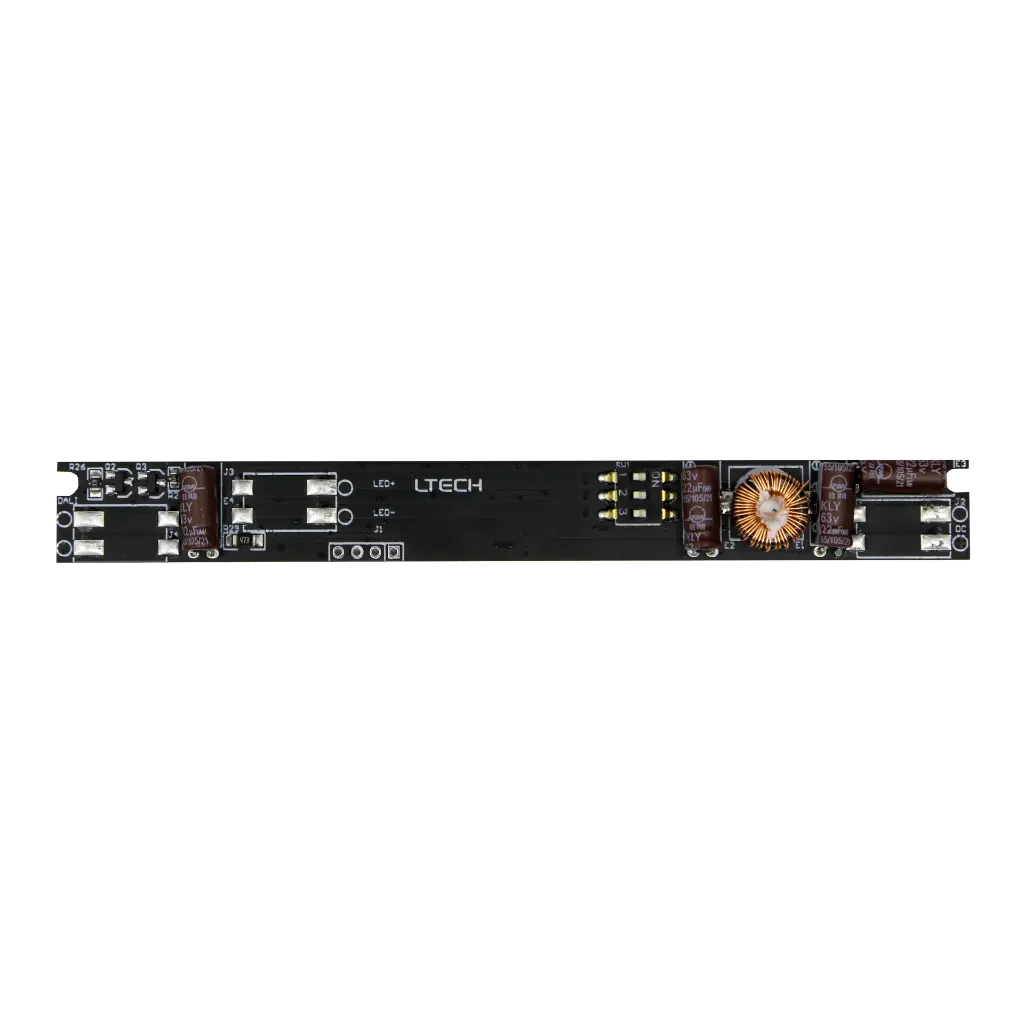

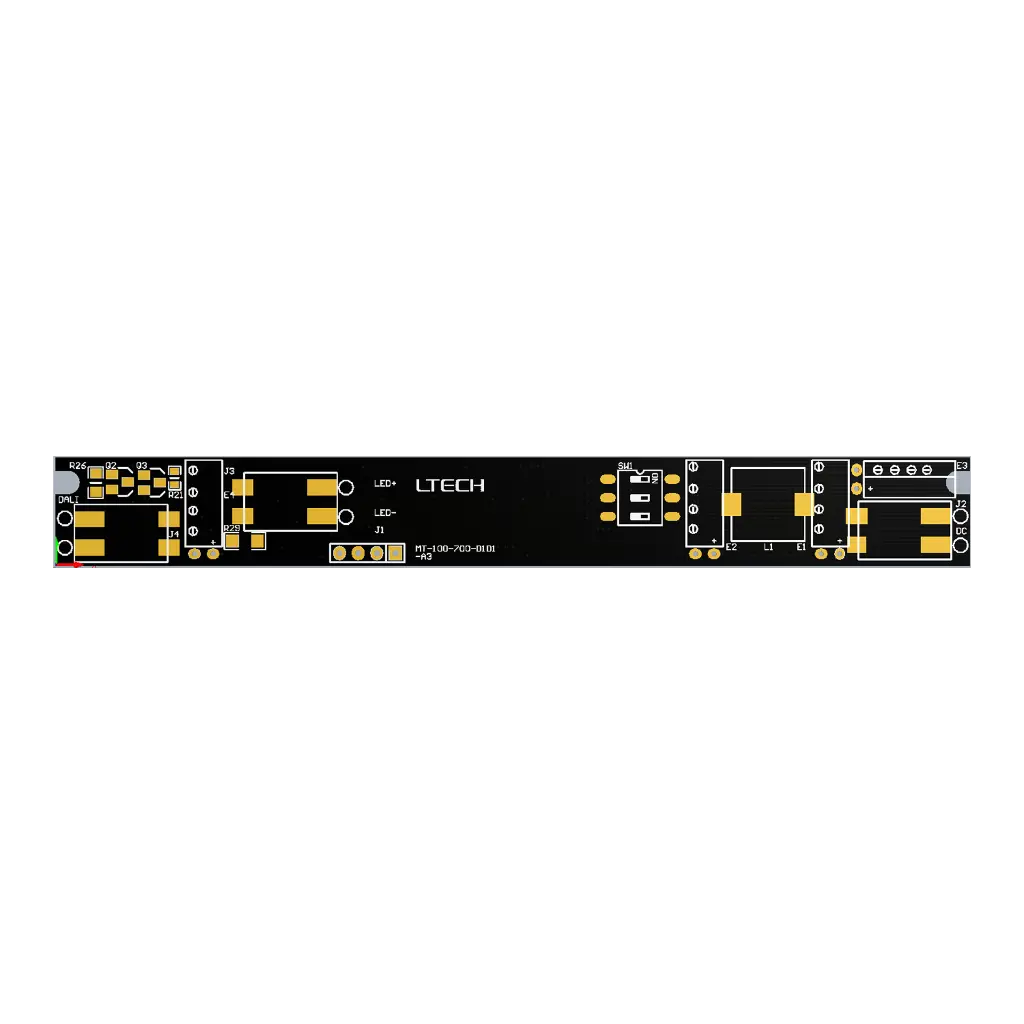

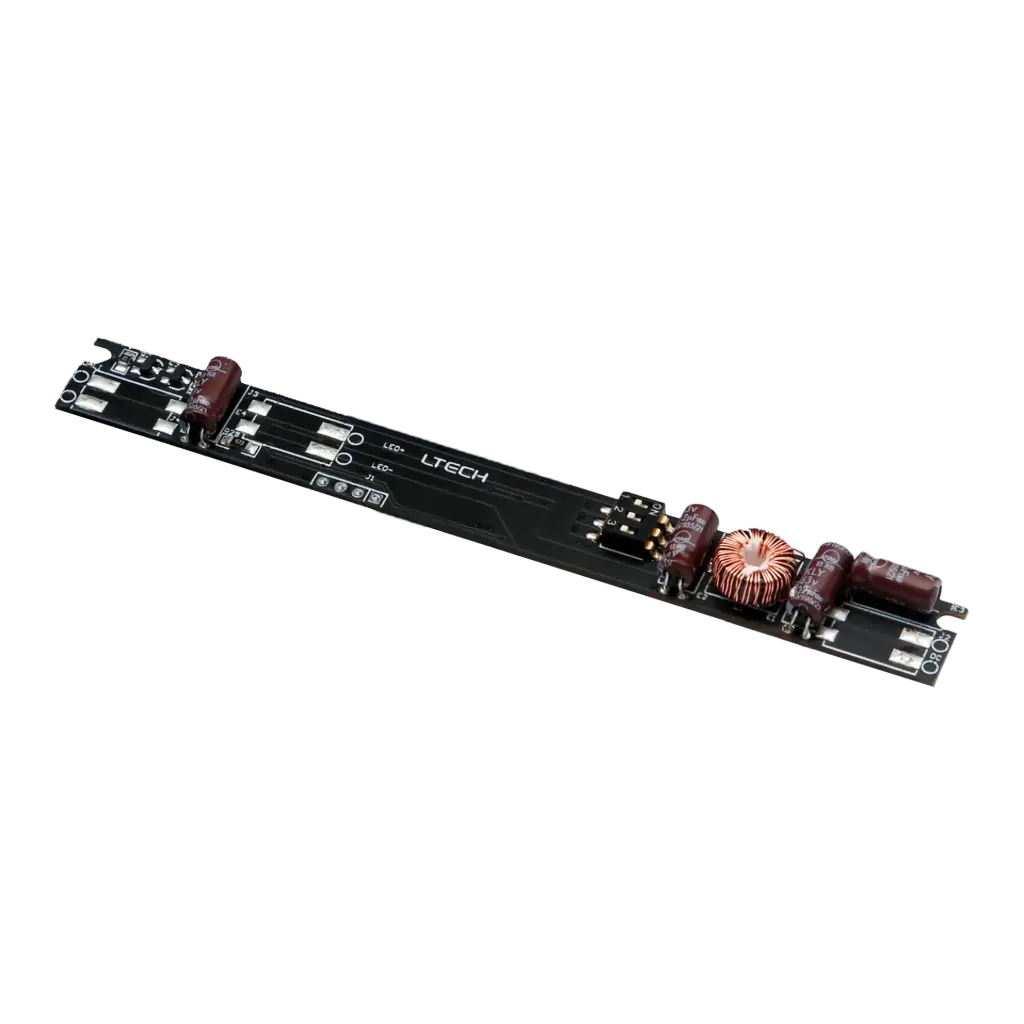

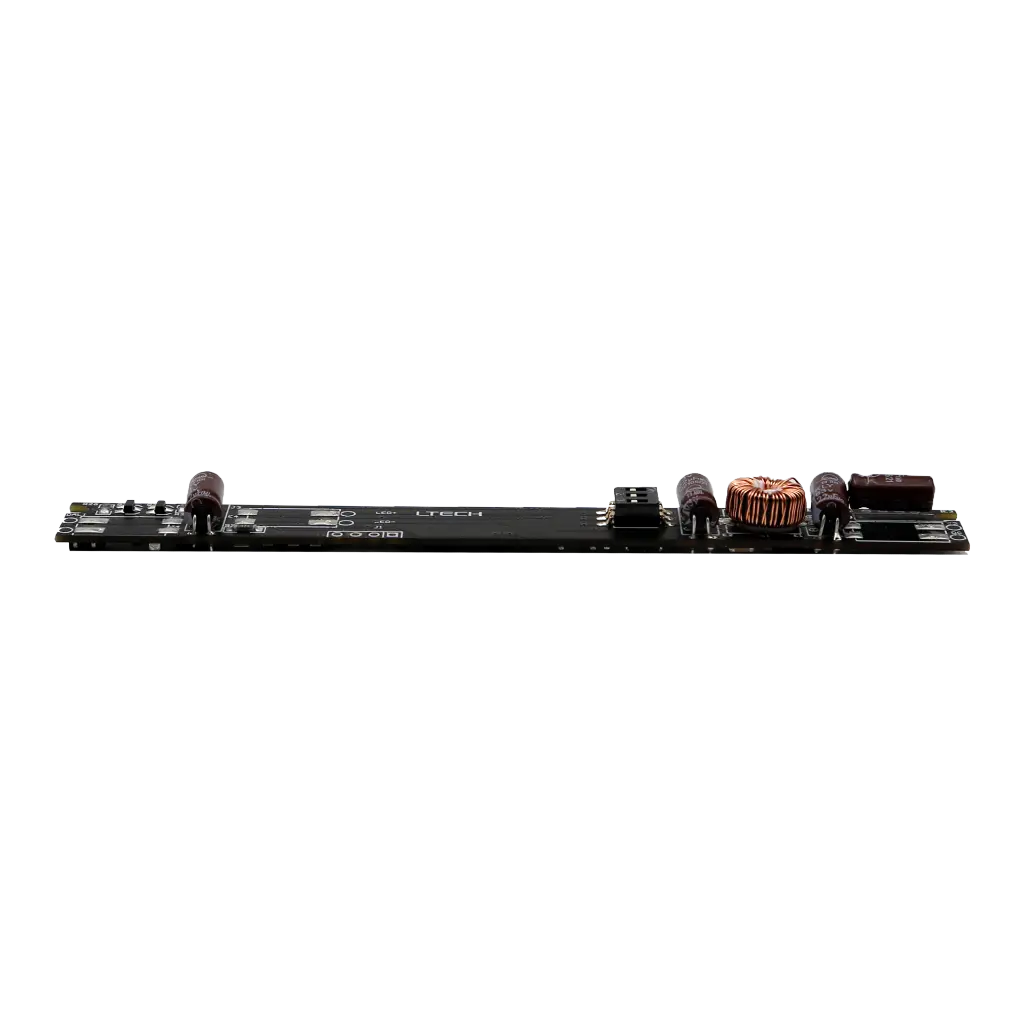

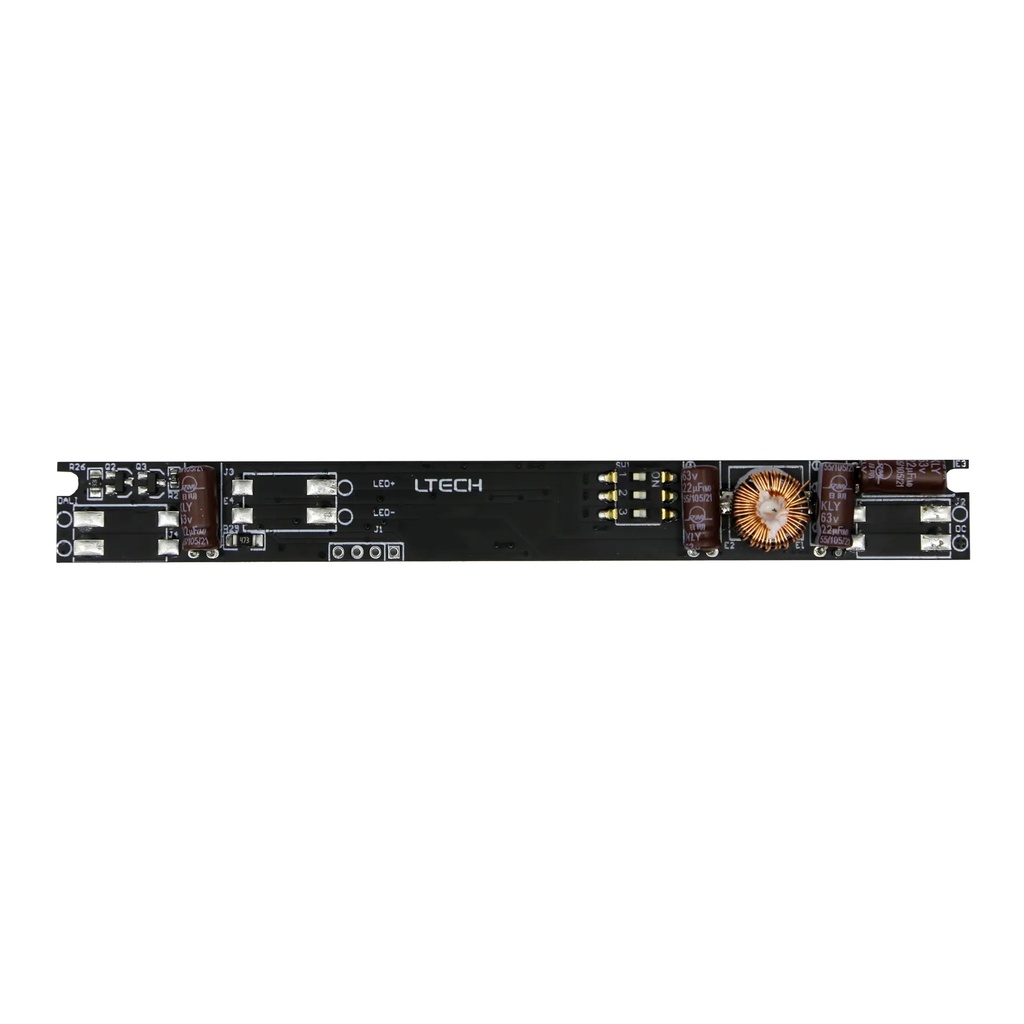

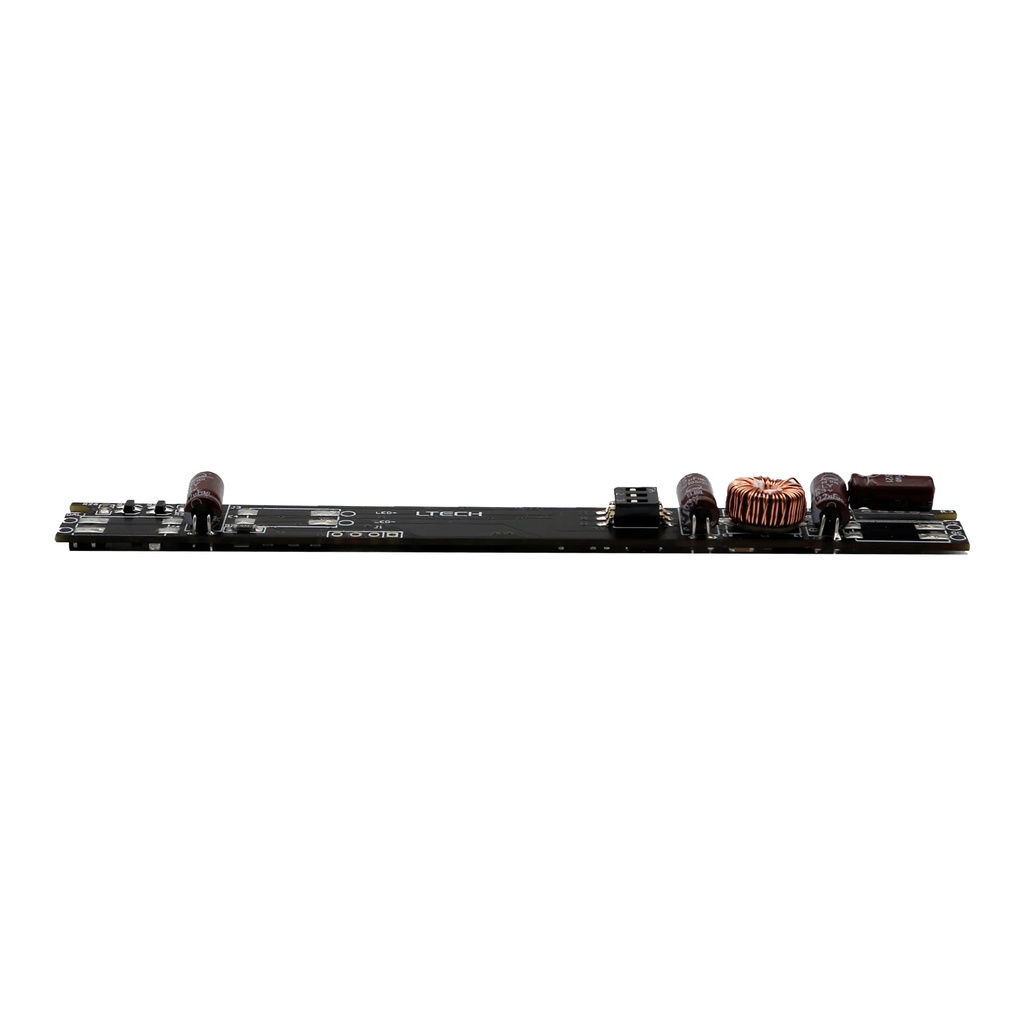

DALI Constant Current Driver
Designed for magnetic absorption lamps and linear lighting. Features DC-to-DC constant current output with multiple current settings and DALI 2.0 protocol. Polarity-free and suitable for STUCCHI standard housings. Magnetic installation ensures quiet operation without high-frequency noise. Smooth, flicker-free dimming. Built-in protections for short circuit, overload, no-load, and reverse connection. 5-year warranty.
• Input Voltage: 48V DC ±5% (No polarity)
• Input Current: 0.38A
• Output Voltage: 9-42V DC
• Output Current Range: 100-400mA
• Output Power: 1W-16.8W
• Channel: 1
• Dimming Range: 0~100%, dimming depth 1%
• Dimming Interface: DALI
• Working Temperature: ta: -30~60°C tc: 87°C
• Dimensions: L125 × W14 × H10 (mm)
• Weight (G.W.): 15g±2g
