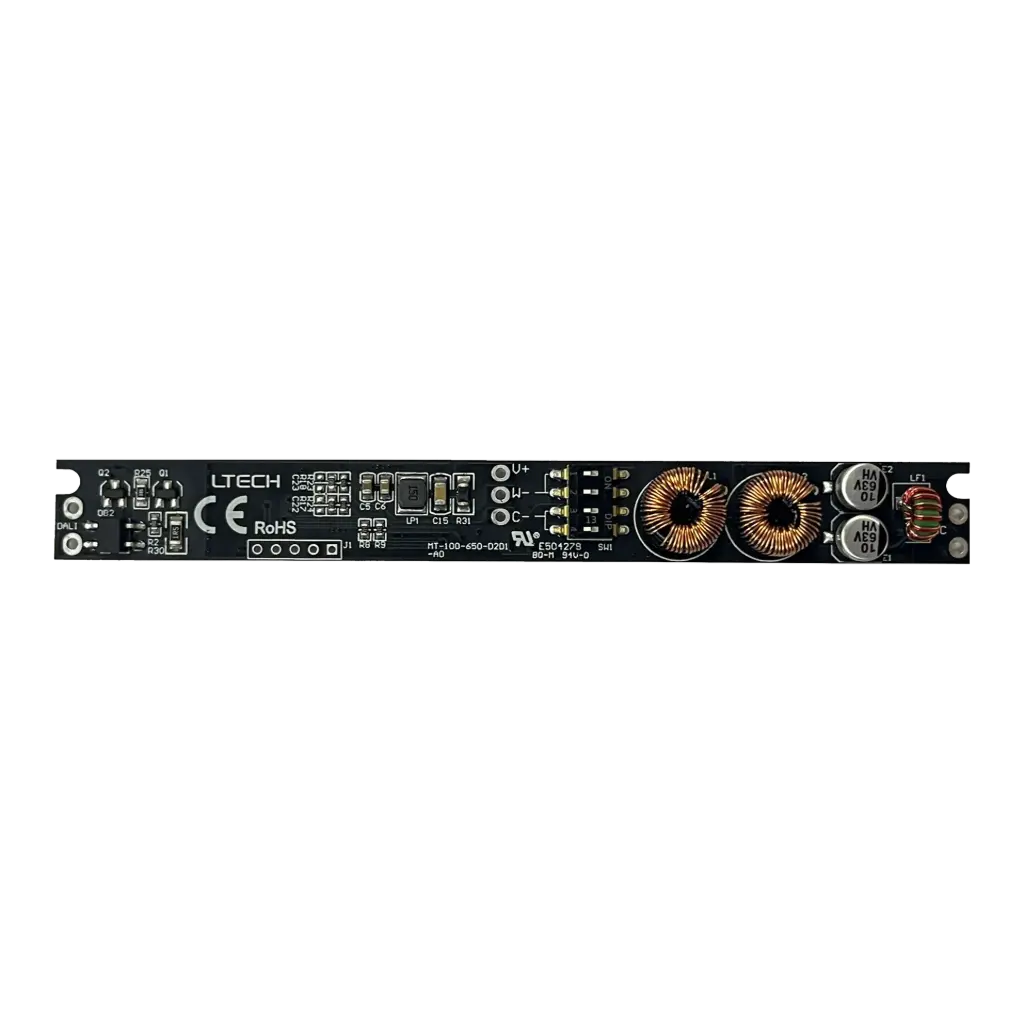

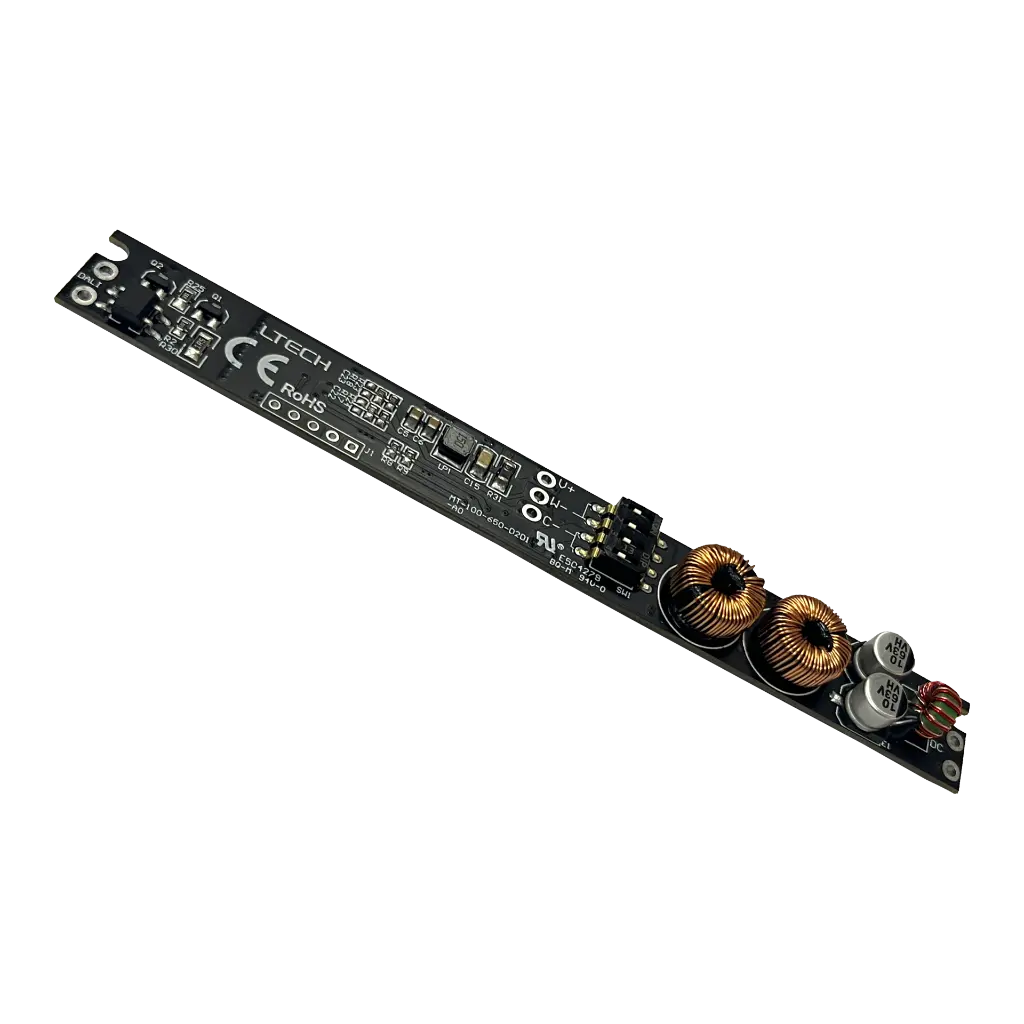

Designed for magnetic and linear lamps. Features DC-to-DC constant current output with no input polarity requirement. Supports DALI 2.0 protocol. Ultra-compact, compatible with STUCCHI standard housings. Quiet magnetic installation with no high-frequency noise. Smooth dimming curves without kicker. Built-in protections against short circuit, overload, and reverse connection.
• Input Voltage: 48V DC ±5% (No polarity)
• Input Current: <0.65A
• Output Voltage: 9-39V DC
• Output Current Range: 500-650mA
• Output Power: 4.5W-25.35W
• Channel: 2
Dimming Range: 0-100%, down to 0.1%
• Dimming Interface: DALI-2 DT8
• Working Temperature: ta: -30~55°C tc: 87°C
• Dimensions: L125 × W14 × H9.5 (mm)
• Weight (G.W.): 12.5g±2g
