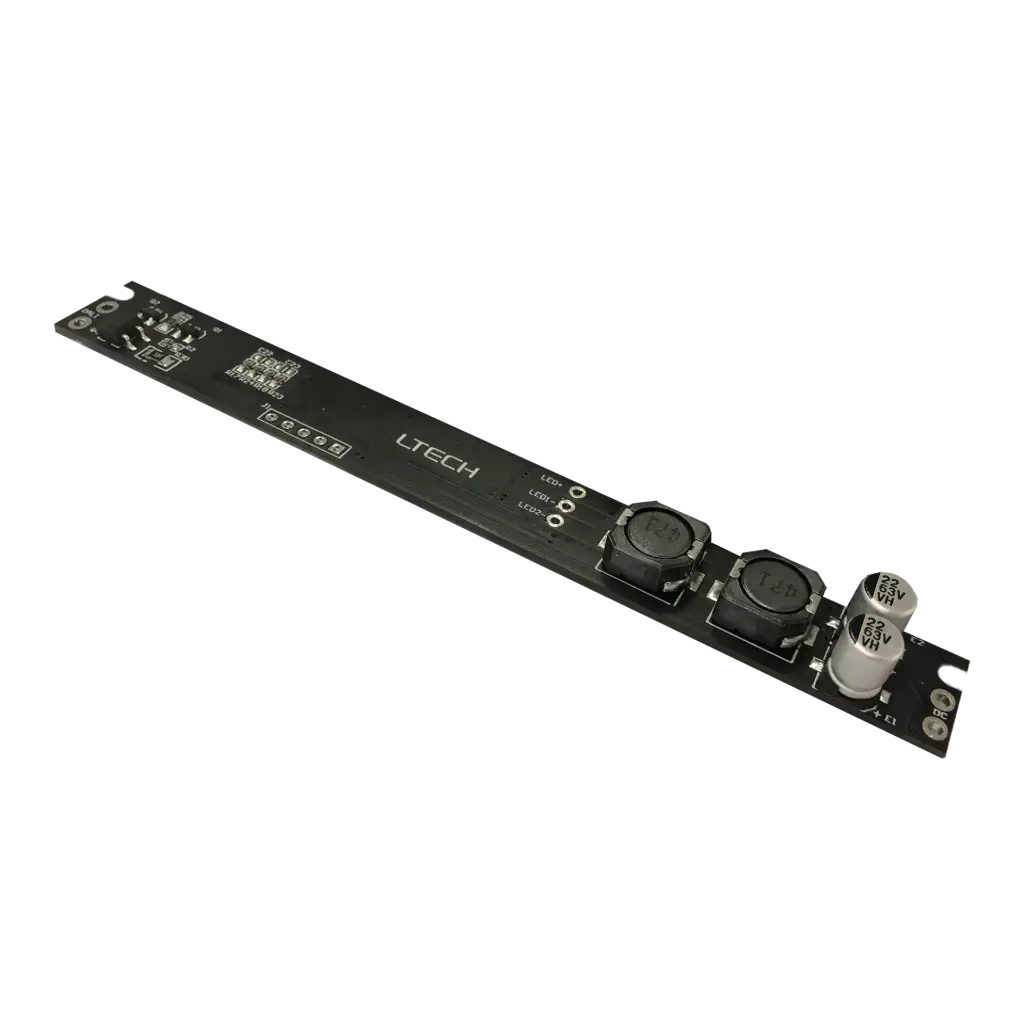

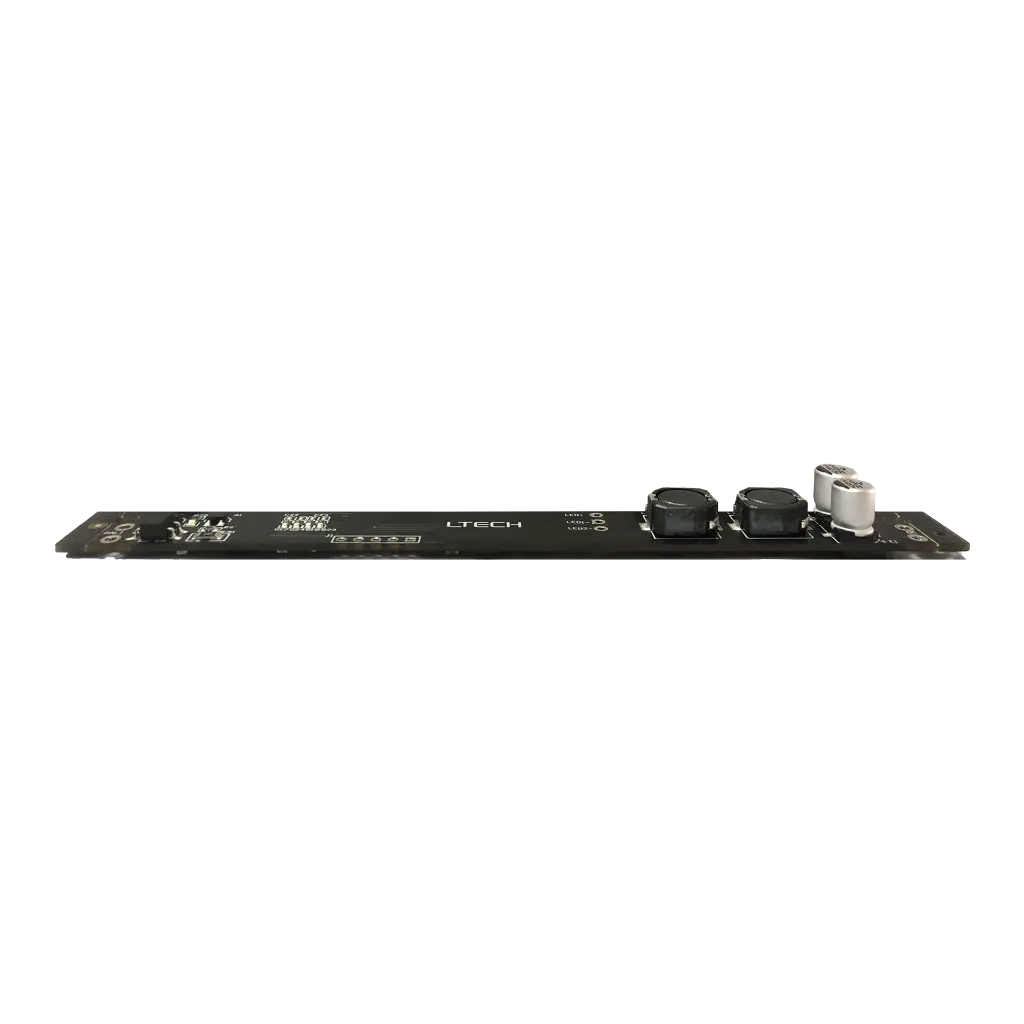

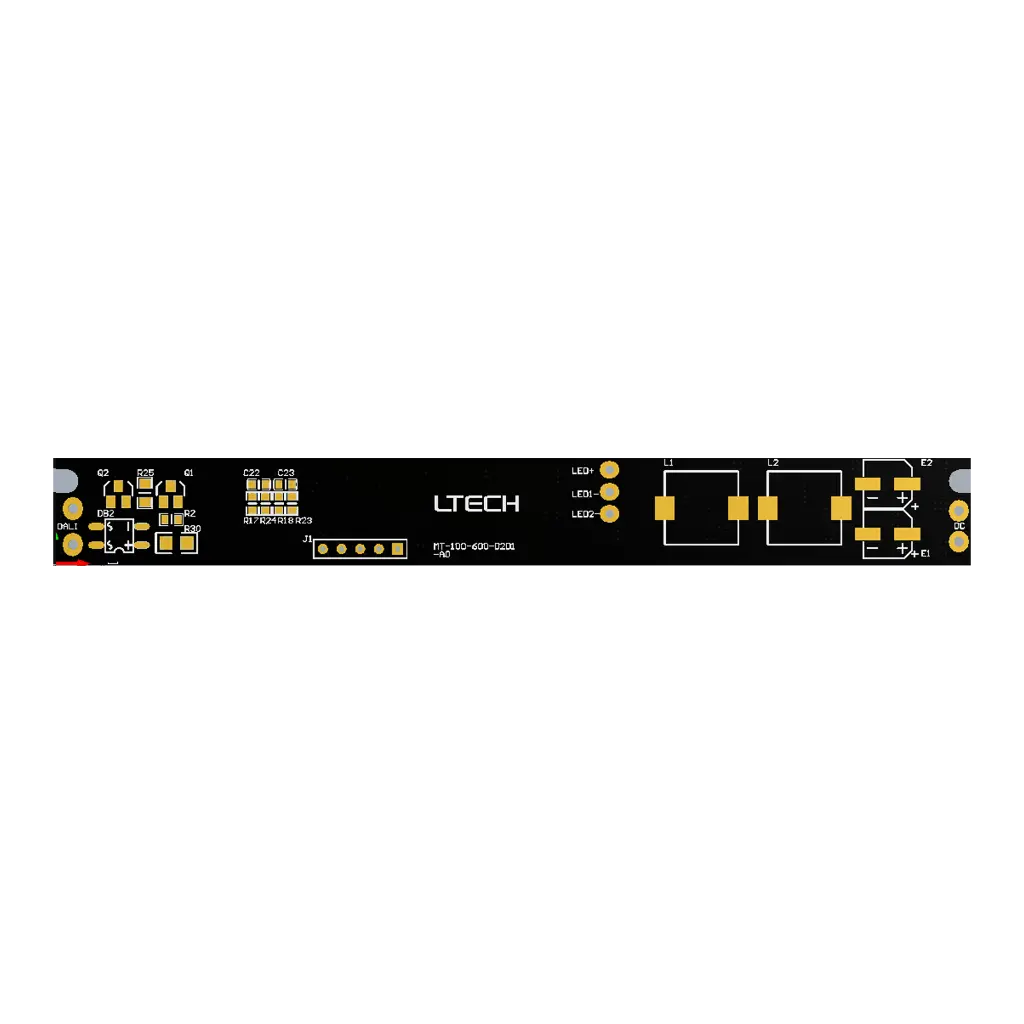

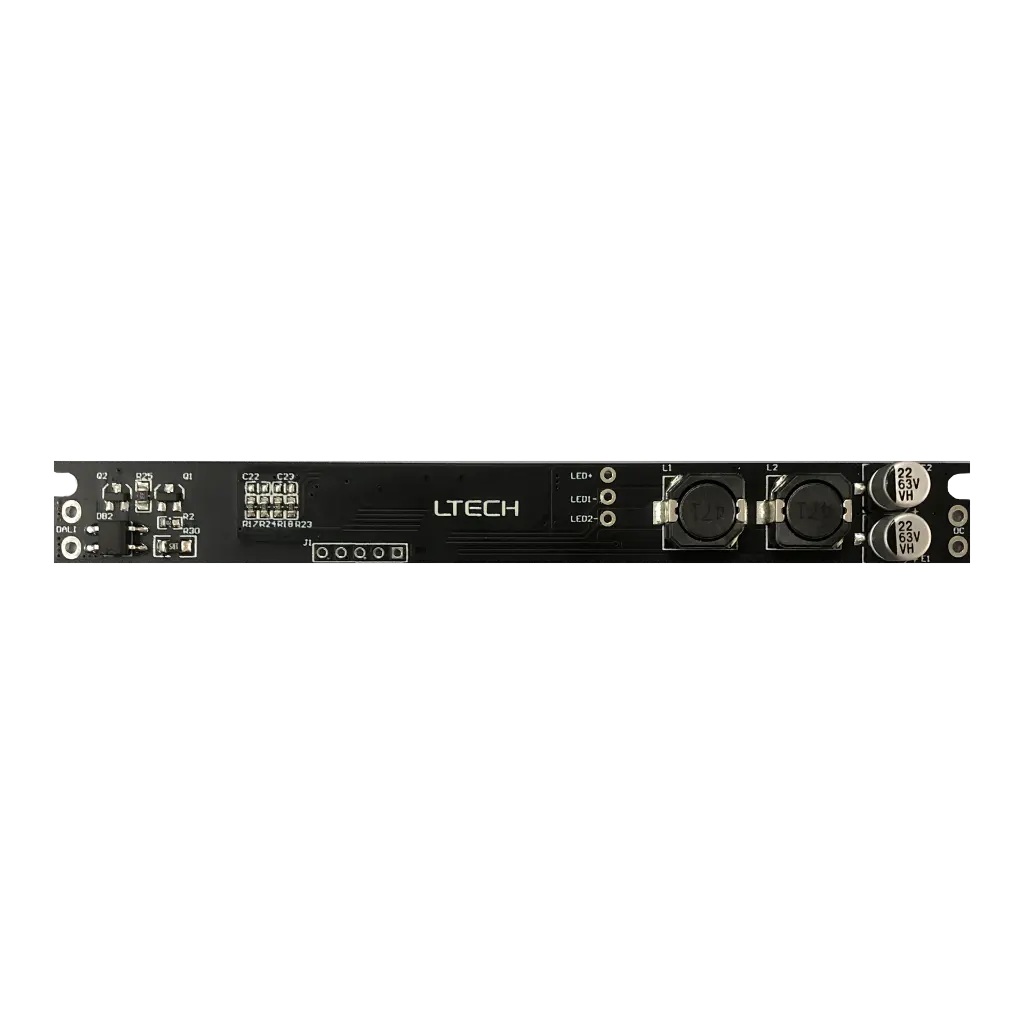

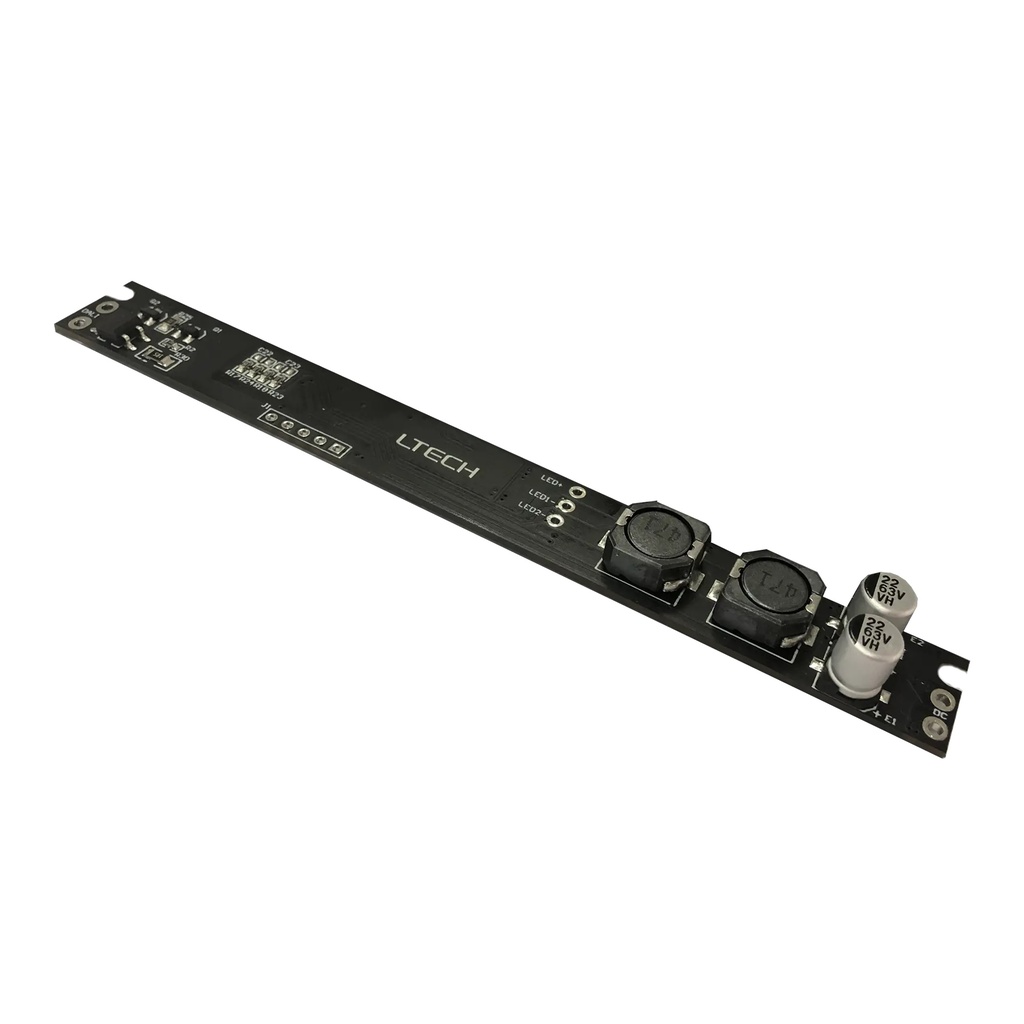

DALI Constant Current Driver
This ultra-compact driver is designed for magnetic and linear lamps, supporting the DALI 2.0 protocol with reliable DC to DC constant current output. It fits STUCCHI standard housings and enables quiet magnetic installation without high-frequency noise. With smooth, flicker-free dimming and built-in protection against short circuit, overload, and reverse polarity, it ensures safe and stable performance.
• Input Voltage: 48V DC ±5% (No polarity)
• Input Current: 0.28A
• Output Voltage Range: 10-42V DC
• Output Current Range: 100-300mA
• Output Power: 1W-12.6W
• Channel: 2
• Dimming Range: 0-100%, down to 0.1%
• Dimming Interface: DALI
• Working Temperature: ta: -30~55°C tc: 87°C
• Dimensions: L125 × W14.8 × H10 (mm)
• Weight: 15g±2g
