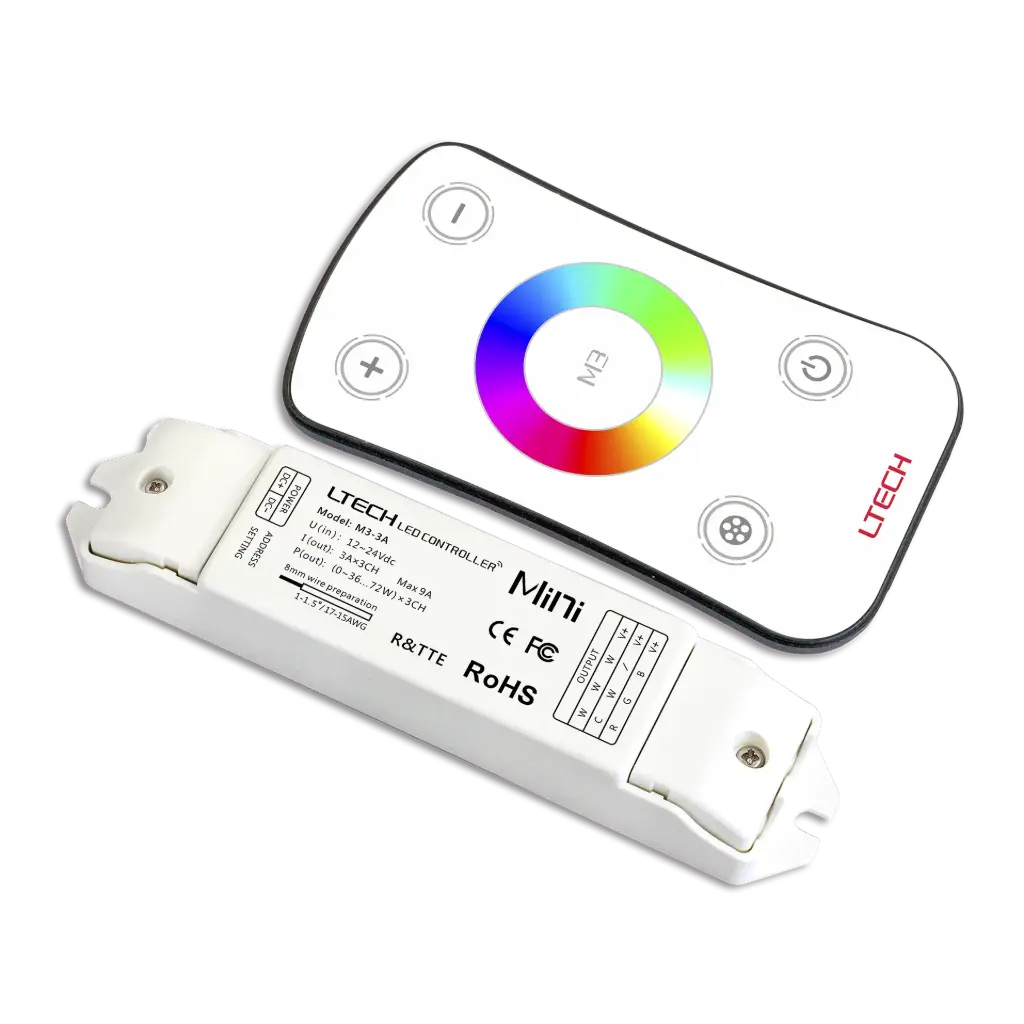

LTECH Mini RF remote + receiver CV 3x3A RGB - M3+M3-3A


Receiver Model: M3-3A
  • Power Input: 12~24Vdc
  • Current Load: 3A × 3 channels, maximum 9A
  • Output Power: (0~36W...72W) × 3CH
  • Working Temperature: -30℃~55℃
  • Dimensions: L135 × W30 × H20 (mm)
  • Weight (N.W): 47g
Remote Model: M3
  • Working Voltage: 3V (battery CR2032)
  • Working Frequency: 433.92MHz
  • Working Temperature: -30°C~55°C
  • Dimensions: L104 x W58 x H9 (mm)
  • Weight (N.W): 42g
€ 0.00 € 0.00

  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Weight
  • Weight
  • Dimensions
  • Working Temperature
Add to cart
Contact Us

Internal Reference: 2266300
HS Code: 85044031

01
General
6 specifications
Input Voltage
12-24 V
Input Voltage Domain
DC
Channels
3
Output Power Range
72 W
Current load/ ch
3A
Curent load max
9A
02
Operating
1 specification
Working Temperature
-30°C-55°C
03
Physical
2 specifications
Weight
135g · 47g
Dimensions
L135xW30xH20(mm)
01
All Files
1 file
PDF
M3+M3-3A User Manual.pdf
576 KB
Download
