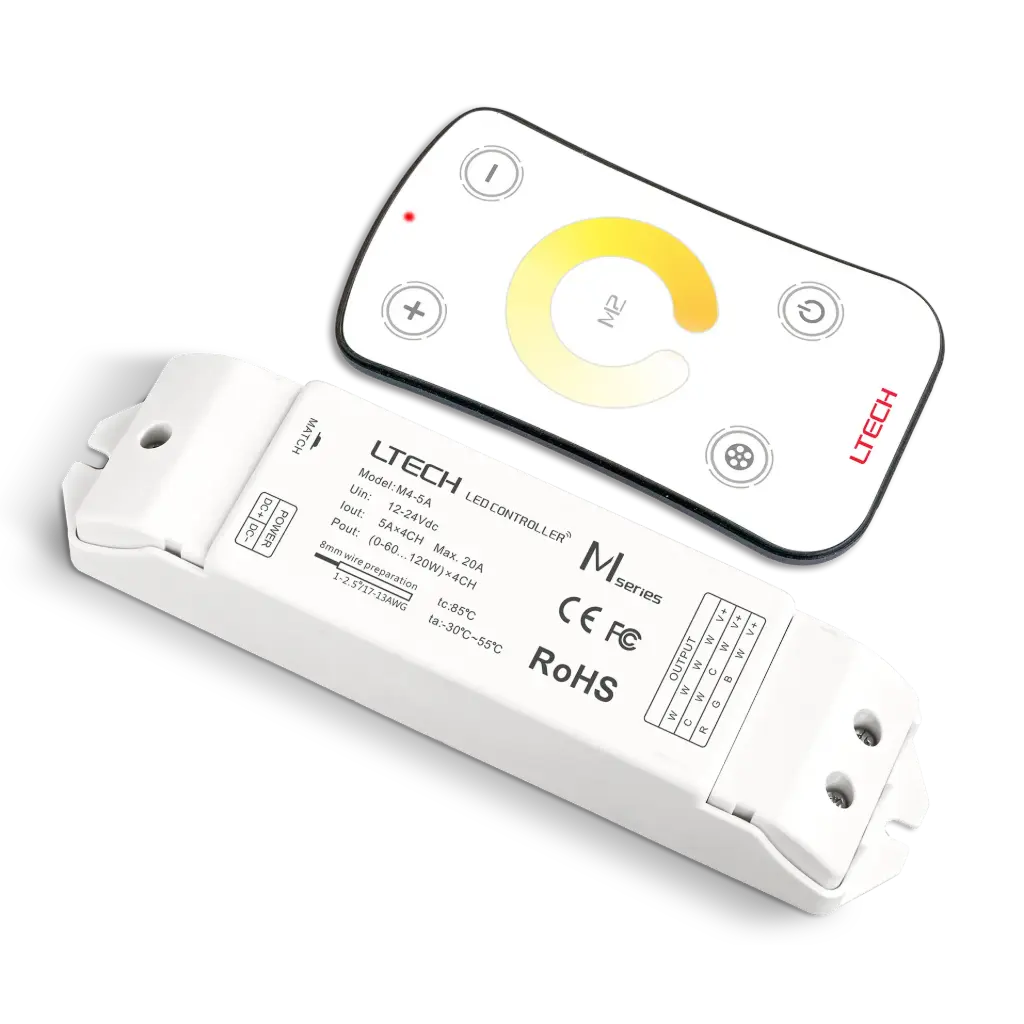

LTECH Mini RF remote + receiver CV 4x5A CT - M2+M4-5A

The M series LED controller supports eight types of remotes (patented technology), allowing one receiver to handle single color/CT dimming and RGB/RGBW control. RF remotes enable brightness and speed adjustments, as well as customizable color and dynamic lighting modes.

Receiver Model: M4-5A

Input voltage: 12~24Vdc
Maximum load current: 5A × 4CH, maximum 20A
Maximum load power: (0~60W...120W) × 4 CH, maximum 480W
Protection: short circuit/overcurrent protection
Working temperature: -30℃~55℃
Product size: L175 × W44 × H30(mm)
Weight (net weight): 125g

Remote Model: M2

Working Voltage: 3Vdc (battery CR2032)
Working Frequency: 433.92MHz
Remote Distance: 30m
Working Temp.: -30°C~55°C
Remote Dimensions: L104 x W60 x H9 (mm)
Remote Weight (N.W.): 42g

Input Voltage
- 12-24 V
Input Voltage Domain
- DC
Channels
- 4
Output Power Range
- 120 W
Current load/ ch
- 5A
Curent load max
- 20A
Weight
- 125g
Dimensions
- L175xW44xH30(mm)
Working Temperature
- -30°C-55°C

Internal Reference: 2266210
HS Code: 85044031

General

6 specifications

Input Voltage

12-24 V

Input Voltage Domain

Channels

Output Power Range

120 W

Current load/ ch

Curent load max

Operating

1 specification

Working Temperature

-30°C-55°C

Physical

2 specifications

Weight

Dimensions

L175xW44xH30(mm)

All Files

1 file

M2+M4-5A User Manual.pdf

1.2 MB

Download
