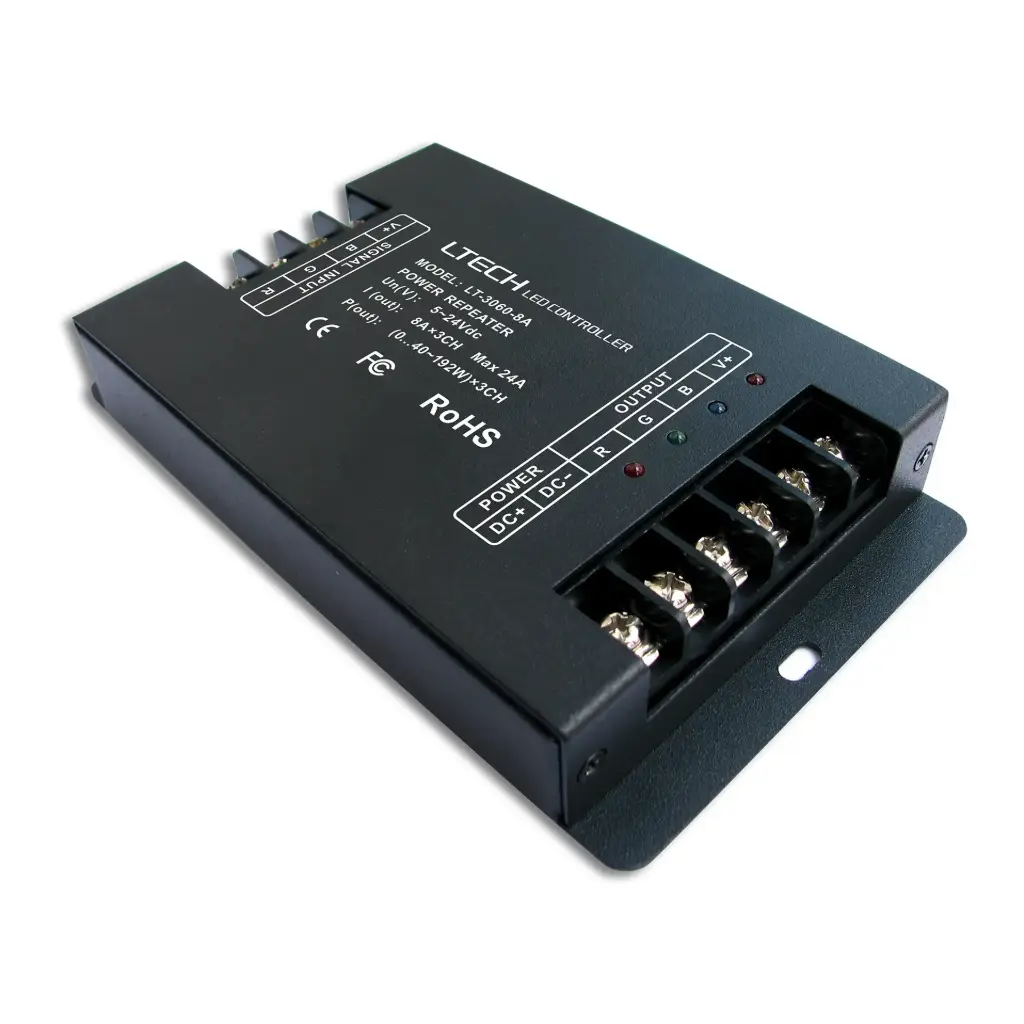

LED Power Repeater is designed for LTECH DIM, CT, and RGB controllers to expand output capacity. It accepts PWM control and can double or triple LED load with each added repeater. Unlimited units can be connected theoretically. Features short circuit, over current, and anti-reverse connection protection. Supports both constant voltage and constant current repeaters, allowing mixed connection for different voltage and power LED lamps under one controller.
• Input Voltage: 5~24V DC
• Input Signal: PWM (200Hz-2000Hz)
• Max Current Load: 8A × 3CH Max. 24A
• Output Power: (0~40W...192W) × 3CH Max. 57-6W
• Working Temperature: -30°C~65°C
• Dimensions: L148 x W87 x H23 (mm)
• Weight: 380g
