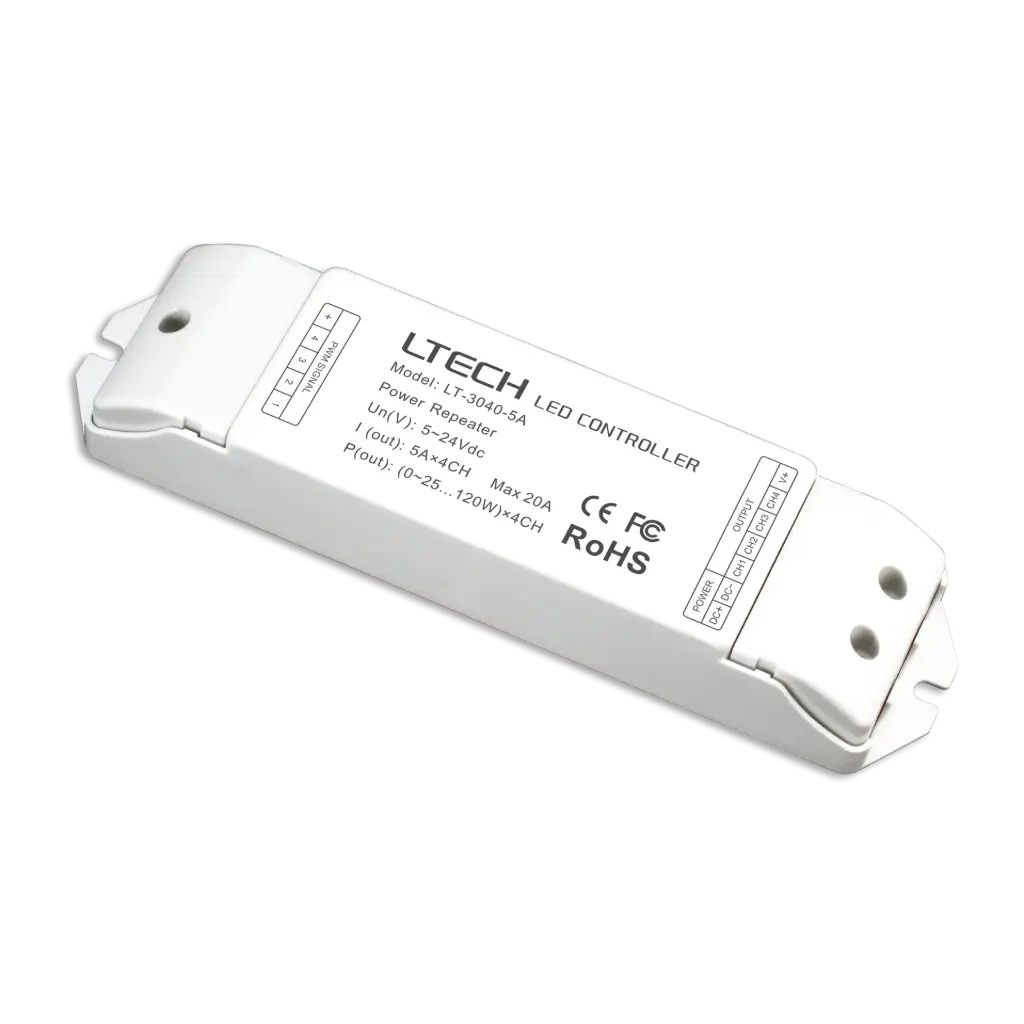

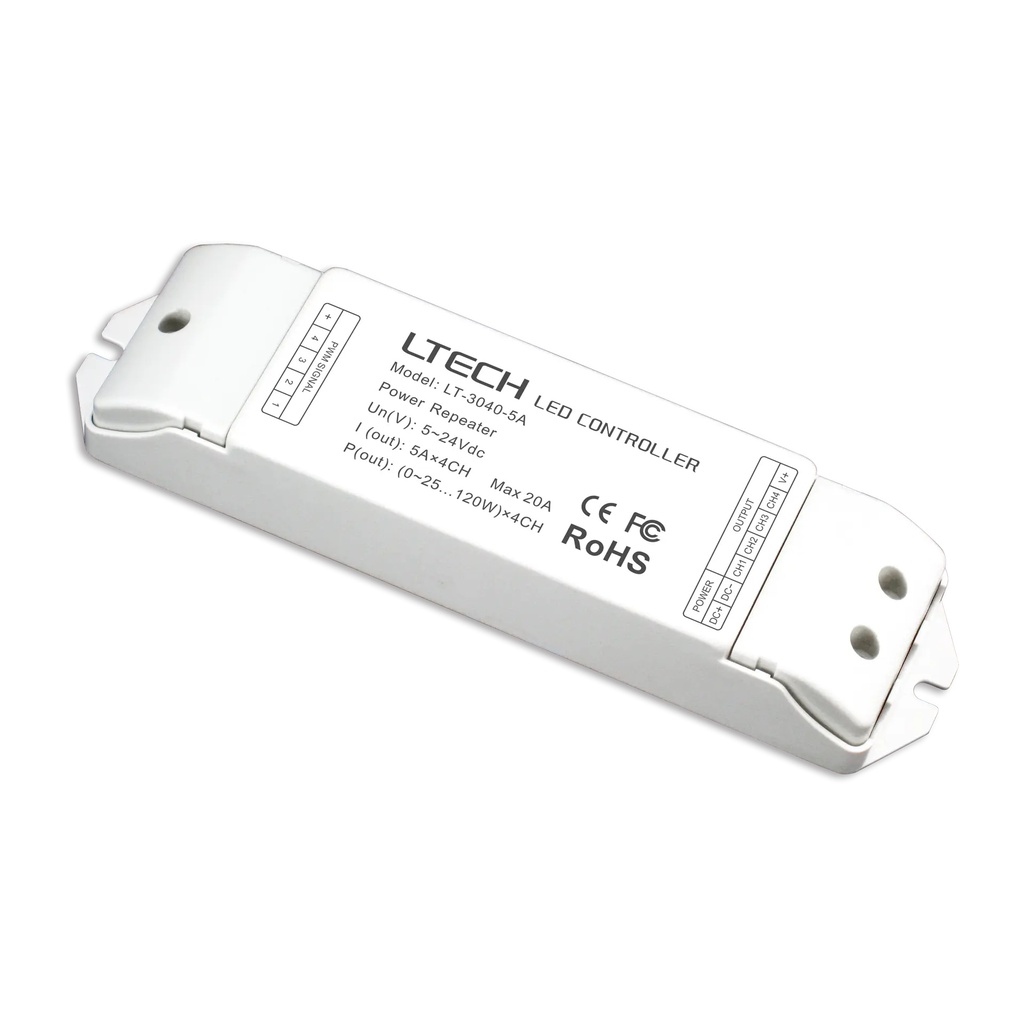

LTECH Power repeater CV 4x5A - LT-3040-5A

LTECH Power repeater CV 4x5A - LT-3040-5A


LED Power Repeater is designed for power expansion of all our power-output controllers. It accepts PWM control, doubling the connected LED load with each repeater. Unlimited repeaters can be added in theory. Signal input and output feature 3KV photoelectric isolation for reliable protection.

  • Input Signal: PWM (200Hz~2000Hz)
  • Input Voltage: 5~24Vdc
  • Max Current Load: 5A × 4CH Max. 20A
  • Max Power Load: (0~25...120W) × 4CH Max. 480W
  • Working Temperature: -30°C~55°C
  • Dimensions: L175 × W44 × H30 (mm)
  • Weight: 145g
€ 0.00 € 0.00

  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature
Add to cart
Contact Us

Internal Reference: 2310900
HS Code: 85044031

01
General
6 specifications
Input Voltage
5-24 V
Input Voltage Domain
DC
Channels
4
Output Power Range
480 W
Current load/ ch
5A
Curent load max
20A
02
Operating
1 specification
Working Temperature
-30°C-55°C
03
Physical
3 specifications
Weight
145g
Dimensions
L175xW44xH30(mm)
Package Size
L178xW48xH33(mm)
01
All Files
1 file
PDF
LT-3040-5A User Manual.pdf
4.9 MB
