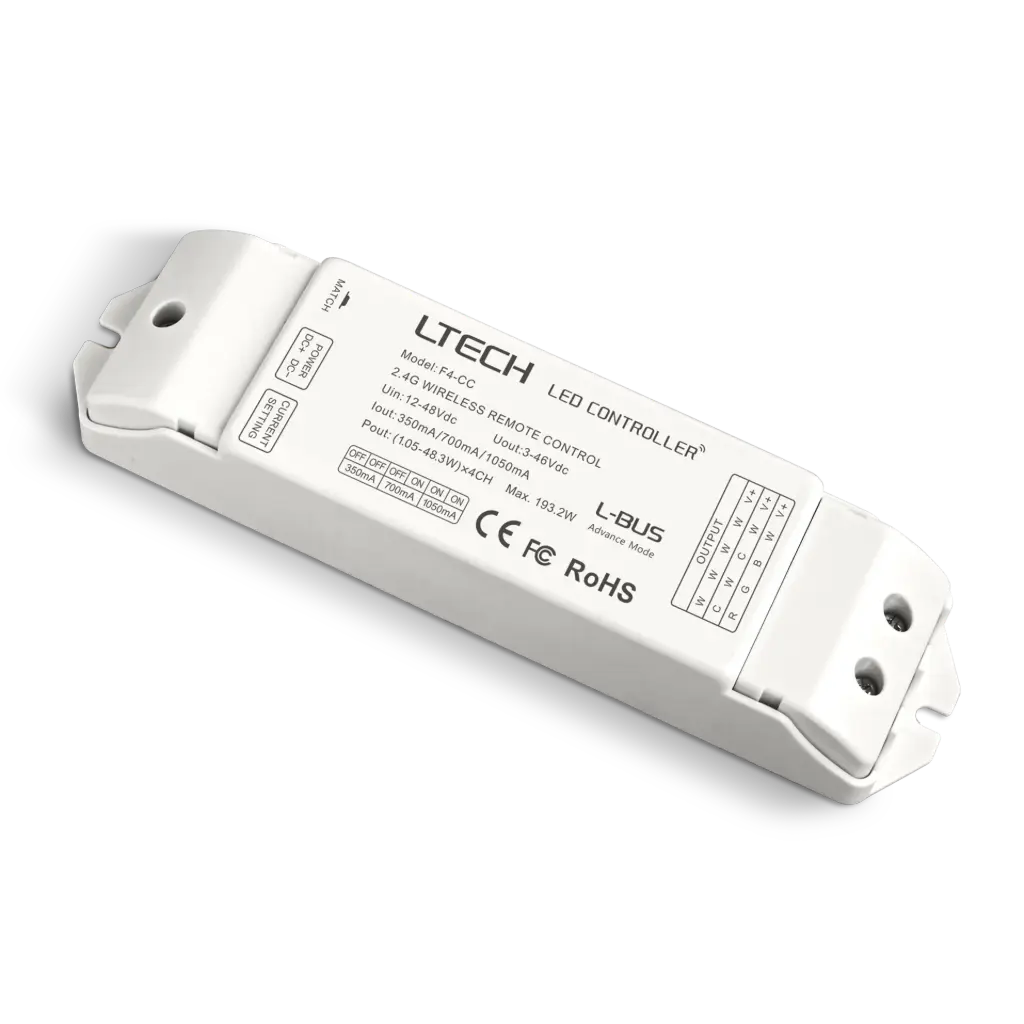

LTECH RF receiver CC 4xCC - F4-CC

LTECH RF receiver CC 4xCC - F4-CC


2.4GHz wireless LED controller no signal cable needed. Supports dimming, CT, RGB, and RGBW control. Compatible with F-series remotes, EX/EXC touch panels, and app or smart speaker control when paired with WiFi-108 gateway. Features reverse connection protection and integrates with cloud, human sensors, scene panels, and various wireless/wired LED drivers. Advanced mode requires L-BUS identity.

  • Wireless Signal: RF 2.4GHz
  • Input Voltage: 12-48Vdc
  • Output Voltage: 3-46Vdc
  • Current Load: CC 350/700/1050mA x 4CH
  • Output Power: (1.05~48.3W) x 4CH Max. 193.2W
  • Working Temperature: -30°C~55°C
  • Dimensions: L175 x W44 x H30 (mm)
  • Weight: 165g
€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Channels
  • Output Voltage
  • Output Power Range
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature
Add to cart
Contact Us

Internal Reference: 2258900
HS Code: 85371098

01
General
7 specifications
Control
RF
Input Voltage
12-48 V
Input Voltage Domain
DC
Output Current
350-700-1050mA
Channels
4
Output Voltage
3-46 V
Output Power Range
193 W
02
Operating
1 specification
Working Temperature
-30°C-55°C
03
Physical
3 specifications
Weight
165g
Dimensions
L175xW44xH30(mm)
Package Size
L178xW48xH33(mm)
01
All Files
1 file
PDF
F4-CC User Manual.pdf
1.1 MB
Download
