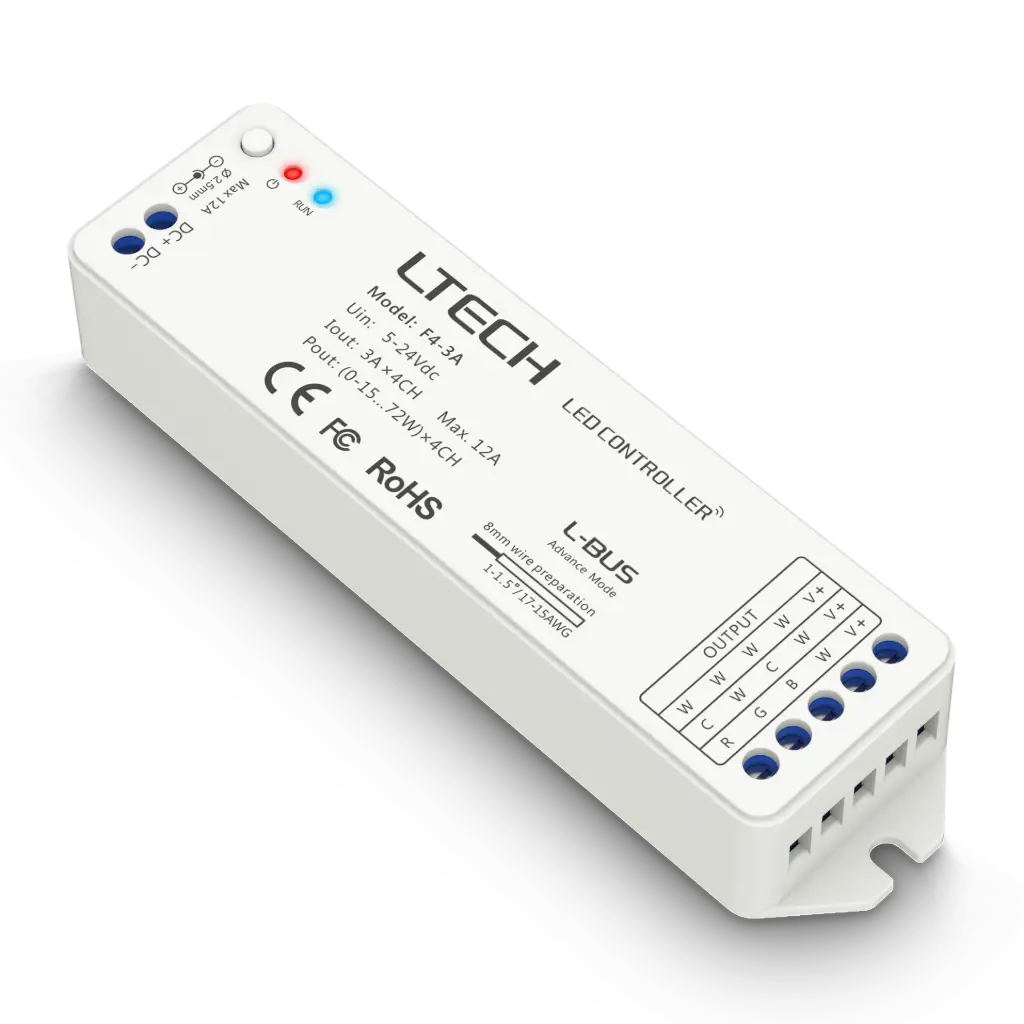

LTECH RF receiver CV 4x3A - F4-3A

RF 2.4GHz wireless LED controller no signal cable needed. Supports dimming, CT, RGB, and RGBW control. Compatible with F-series remotes, EX/EXC touch panels, and app or smart speaker control when paired with WiFi-108 gateway. Features reverse connection protection and integrates with cloud, human sensors, scene panels, and various wireless/wired LED drivers. Advanced mode requires L-BUS identity.

• Wireless Signal: RF 2.4GHz
• Input Voltage: 5-24Vdc
• Output Voltage: 5-24Vdc
• Current Load: 3A x 4CH Max.12A
• Output Power: (0~25W...72W) x 4CH
• Working Temperature: -30°C~55°C
• Dimensions: L175 x W44 x H30 (mm)
• Weight: 150g
