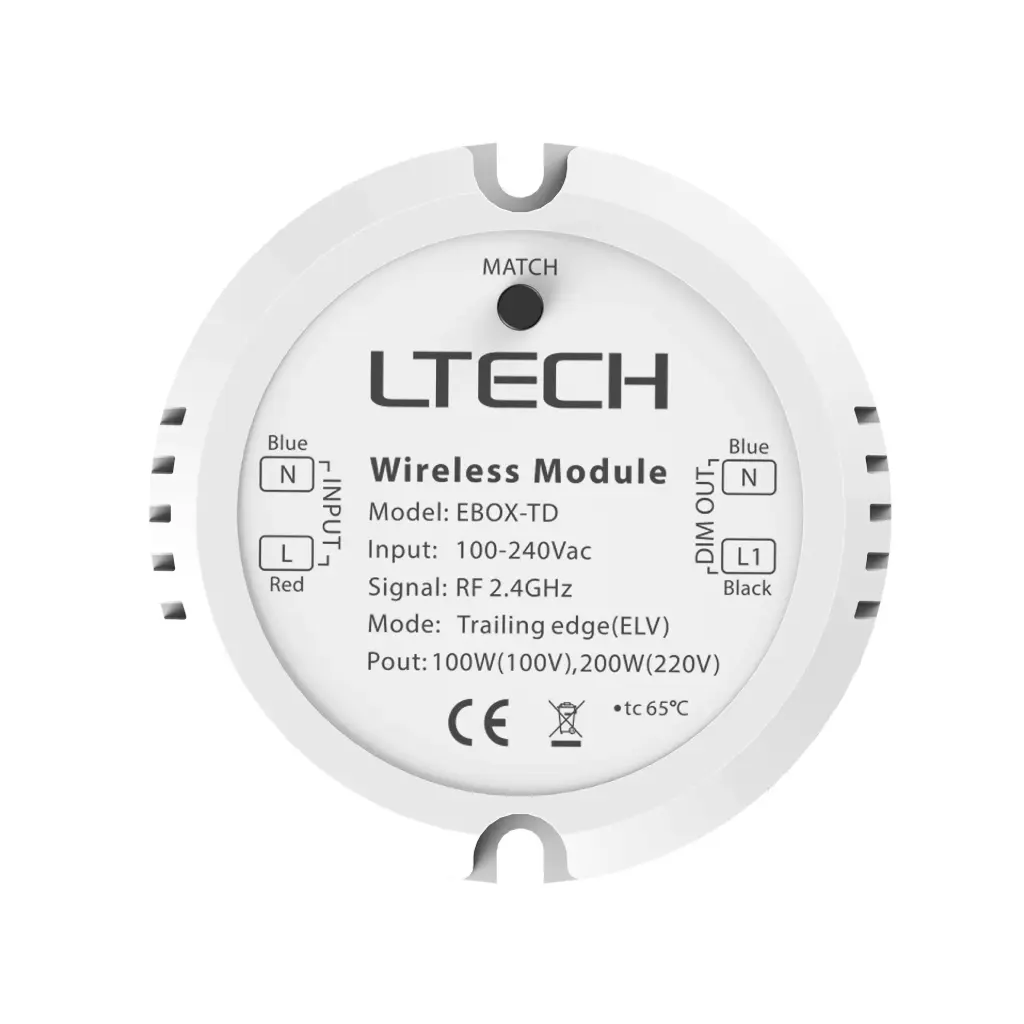

EBOX-TD wireless module uses L-BUS protocol for wireless control via L-BUS terminals. Compatible with dimmable bulbs, traditional lights, and adjustable LED crystal chandeliers. Works best with LTECH LED drivers for smooth dimming. Simplifies new or retrofit installations by eliminating complex wiring and technical setup.
• Input Voltage: 100~240V AC
• Frequency Range: 50/60 GHz
• Wireless Signal: RF 2.4GHz
• Dimming Mode: Trailing Edge (ELV)
• Working Current: Max. 12A
• Working Temperature: Ta: -30°C~55°C Tc: 65°C
• Dimensions: L55 x W55 x H21 (mm)
• Weight: 70g
