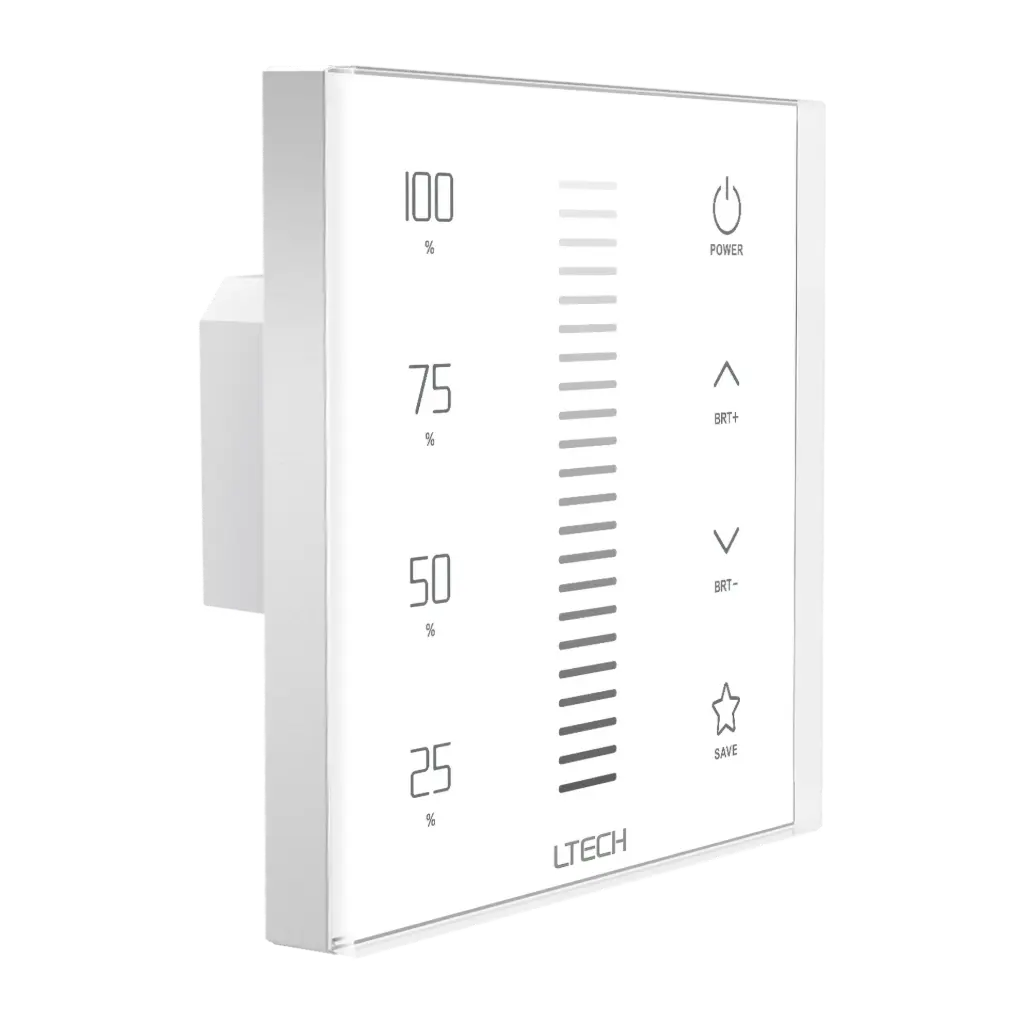

Capacitive touch LED panel with touch keys, chord, and LED indicators for user-friendly color selection. Supports 2-in-1 RF wireless and touch panel control with trailing-edge output for direct lamp connection. Operable via remote or smartphone with a gateway
• Input Voltage: 100~240V AC
• Frequency range: 50/60Hz
• Wireless signal: RF 2.4GHz
• Dimming mode: Trailing edge (ELV)
• Working current: Max. 1A
• Load power: Max. 200W
• Load inrush current: Max. 60A
• Working Temperature: -20°C~50°C
• Dimensions: L86 × W86 × H36 (mm)
• Weight: 225g
