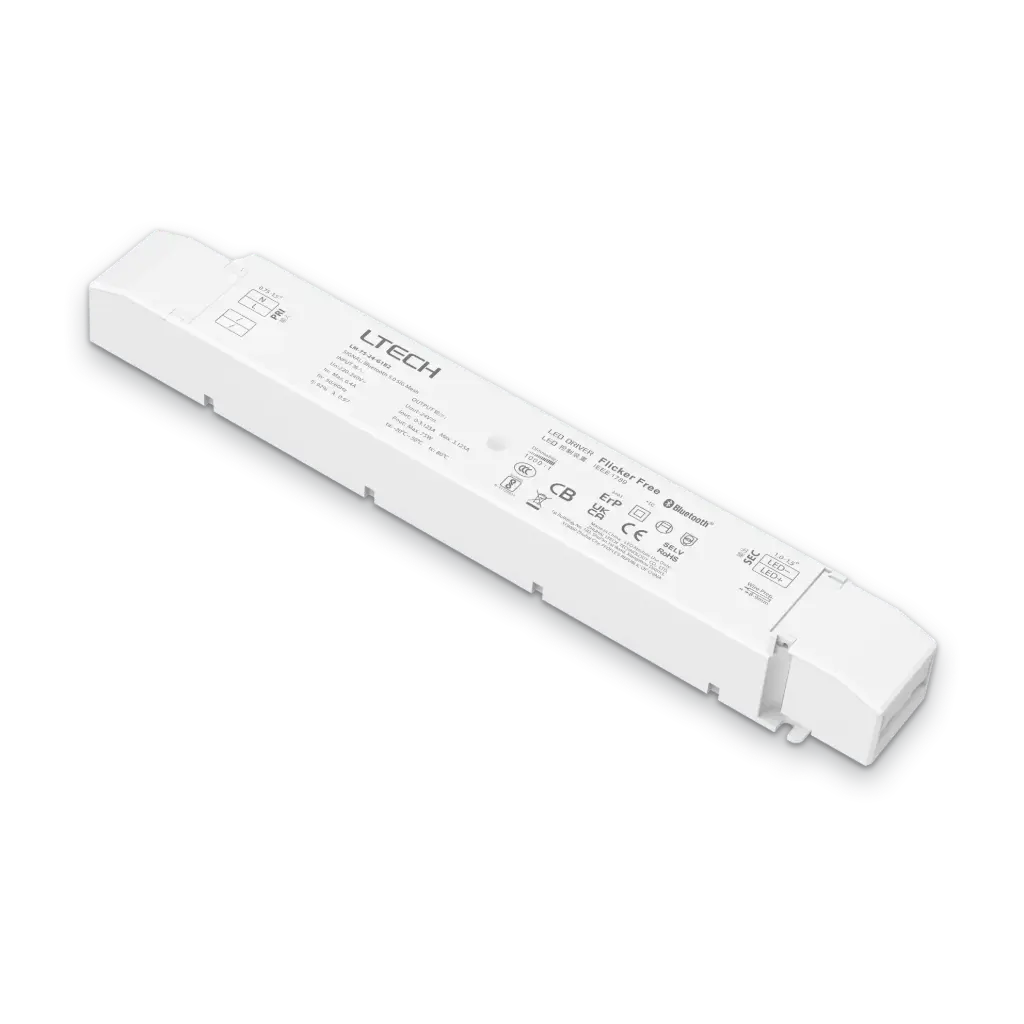

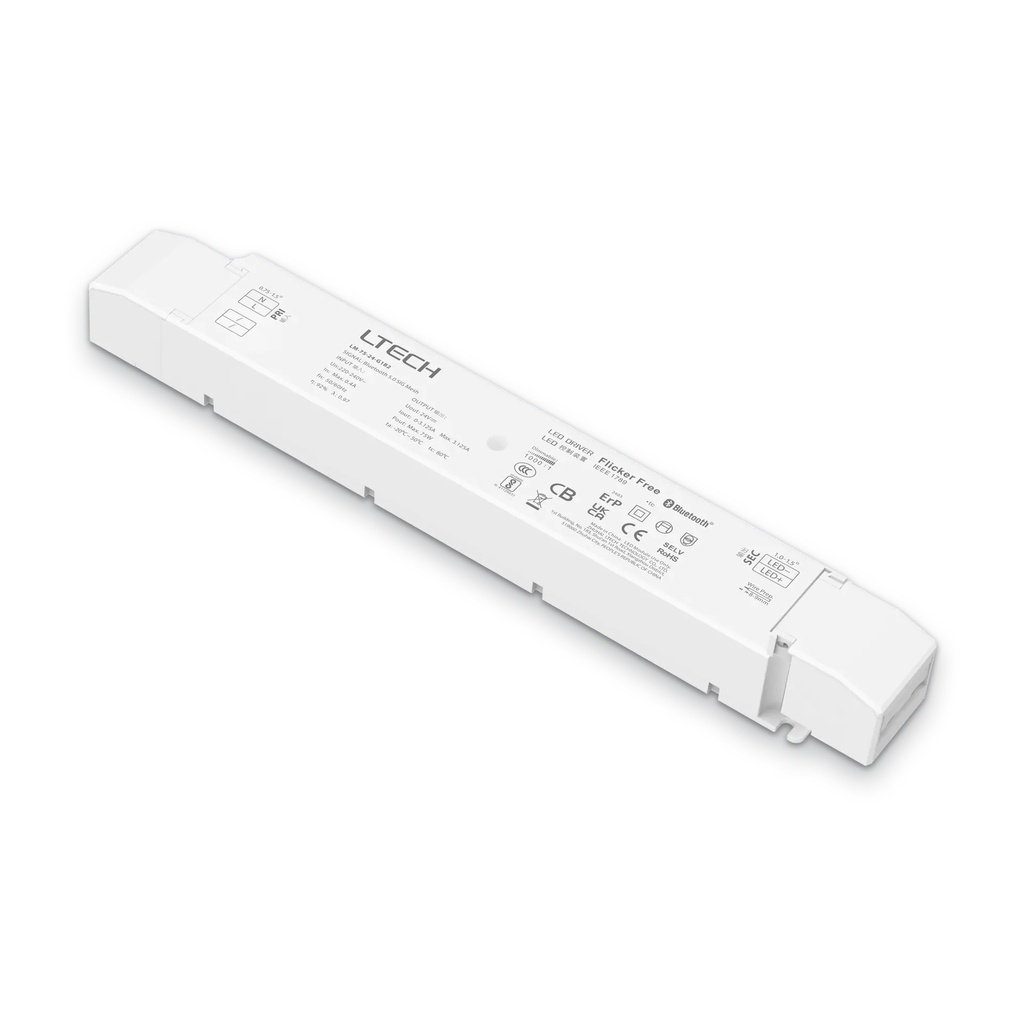

LTECH Xiaolei Driver CV BLE 5.0 1CH 24V 75W - LM-75-24-G1B2

The Intelligent LED Driver (Constant Voltage)

Features a small, lightweight housing made from V0 flame-resistant polycarbonate by Samsung/Covestro. It supports Bluetooth Mesh and Tuya app protocols for reliable, high-capacity networking and allows brightness adjustment on power-on or to the last set level. The driver provides 0-100% flicker-free dimming down to 0.1%, with soft-on and fade-in functionality for enhanced visual comfort. Innovative thermal management ensures long power life, while overheat, overvoltage, overload, and short-circuit protections offer automatic recovery. Suitable for Class I/II/III indoor lighting applications, it delivers up to 50,000 hours of operation and comes with a 5-year warranty (Rubycon capacitor).

Control
- BLE
Channels
- 1
Input Voltage
- 220-240 V
Input Voltage Domain
- AC
Output Voltage
- 24 V
Output Power Range
- 75 W
Curent load max
- 3.125A

Internal Reference: 2110101
HS Code: 85044095

General

7 specifications

Control

Channels

Input Voltage

220-240 V

Input Voltage Domain

Output Voltage

Output Power Range

Curent load max

3.125A

All Files

1 file

LM-75-24-G1B2 User Manual.pdf

1.6 MB

Download
