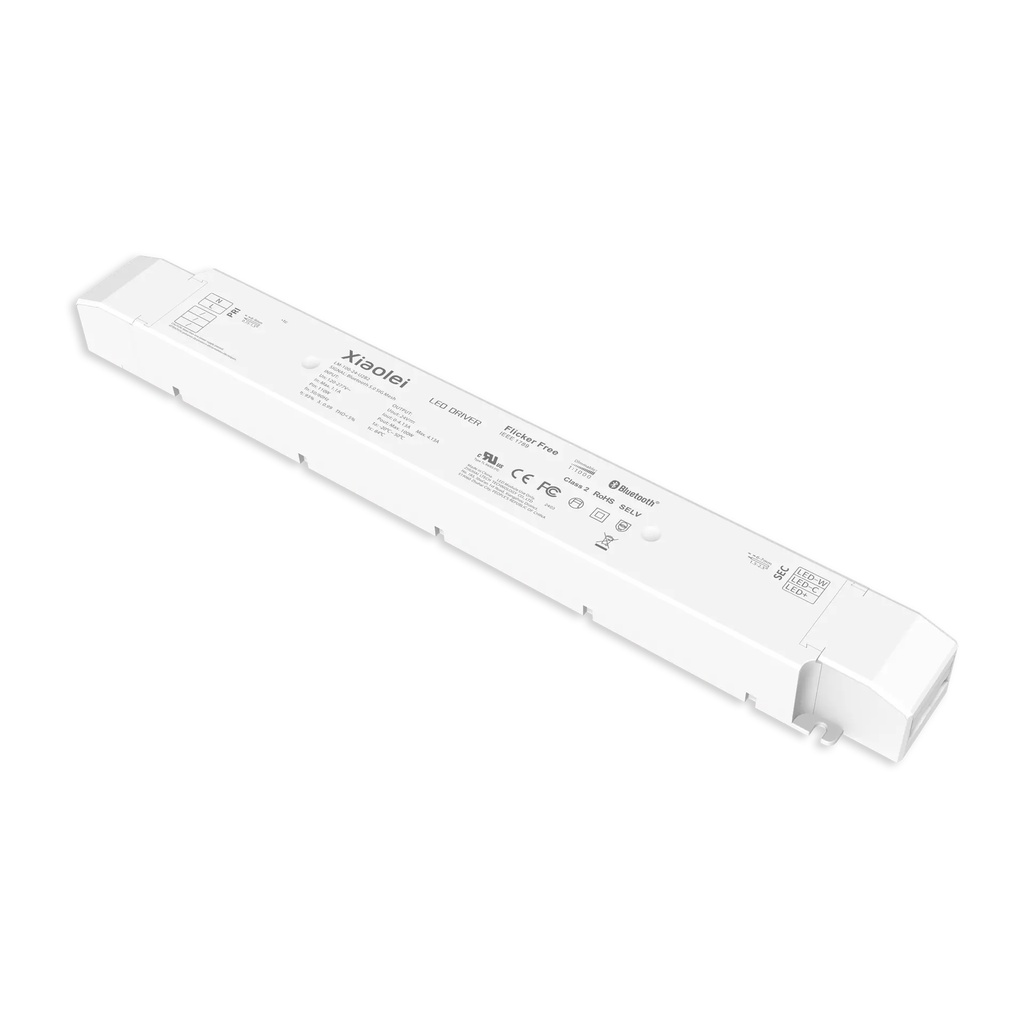

LTECH Xiaolei Driver CV BLE 5.0 2CH 24V 100W UL - LM-100-24-U2B2

Name: LTECH Xiaolei Driver CV BLE 5.0 2CH 24V 100W UL - LM-100-24-U2B2
Brand: LTECH
SKU: 2110152
Availability: InStock

The Intelligent Tunable White LED Driver is compact, lightweight, and made with V0 flame-retardant PC. It supports Bluetooth 5.0 SIG Mesh for control via iOS/Android, smooth 0-100% dimming, and soft-on/fade-in functions. It features thermal management, signal isolation, and protection against overheat, overvoltage, overload, and short circuits. Compliant with EU ErP standards, suitable for Class I/II/III indoor fixtures, with a 50,000-hour lifespan and 5-year Rubycon capacitor warranty.

• Input Voltage: 120-277V AC

• Dimming Interface: Bluetooth 5.0 SIG Mesh

• Output Voltage: 24V DC

• Output Current: Max. 4.13A

• Output Power: Max. 100W

• Output Power Range: 0-100W

• Working Temperature: ta: -20~50°C tc: 85°C

• Dimensions: L352 × W43 × H30 (mm)

• Weight (G.W): 430g

Control
- BLE
Channels
- 2
Input Voltage
- AC (120-277 V)
Input Voltage Domain
- AC
Output Voltage
- 24 V
Output Power
- 100
Current load/ ch
- 2.1A
Curent load max
- 4.13A
Certificates
- UL

Internal Reference: 2110152
Barcode: 6971379112912
Internal Reference: 2110152
HS Code: 85044095

General

8 specifications

Control

BLE

Channels

Input Voltage

AC (120-277 V)

Input Voltage Domain

Output Voltage

24 V

Output Power

100

Current load/ ch

2.1A

Curent load max

4.13A

Operating

1 specification

Certificates

User Manuals

1 file

PDF

LM-100-24-U2B2 User Manual.pdf

7.0 MB

Download
