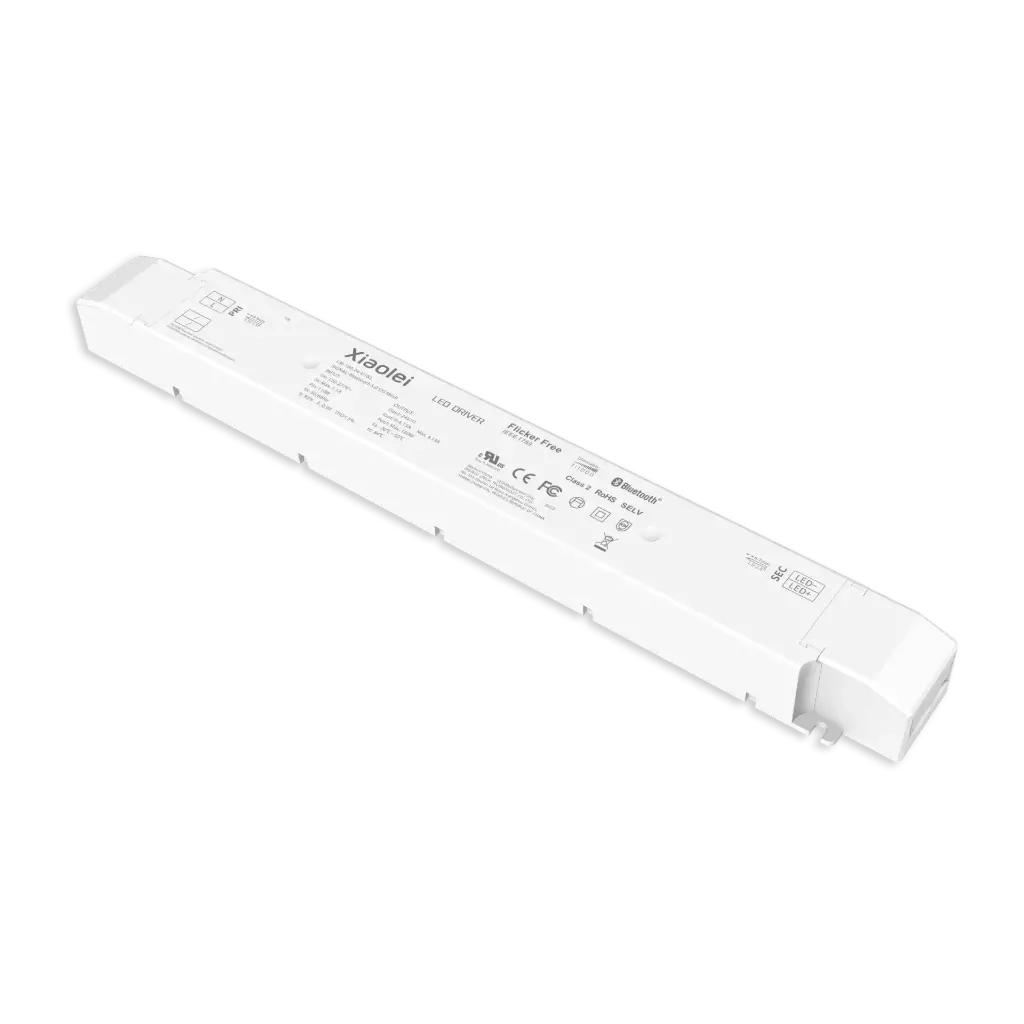

LTECH Xiaolei Driver CV BLE 5.0 1CH 24V 100W UL - LM-100-24-U1B2

Name: LTECH Xiaolei Driver CV BLE 5.0 1CH 24V 100W UL - LM-100-24-U1B2
Availability: InStock

The Intelligent LED Driver (Constant Voltage) is compact and lightweight, with V0 flame-retardant PC housing. Supports 0-100% dimming down to 0.1% with soft-on and fade-in effects. Bluetooth 5.0 SIG Mesh enables stable control via iOS or Android devices. Features advanced thermal management and protection against overheat, overload, overvoltage, and short circuit. Compliant with EU ErP standards, suitable for ClassⅠ/Ⅱ/Ⅲ indoor lighting, with up to 50,000 hours of operation.

• Input Voltage: 120-277V AC

• Dimming Interface: Bluetooth 5.0 SIG Mesh

• Output Voltage: 24V DC

• Output Current: Max. 4.13A

• Output Power: Max. 100W

• Output Power Range: 0-100W

• Working Temperature: ta: -20~50°C tc: 85°C

• Dimensions: L352 × W43 × H30 (mm)

• Weight (G.W): 430g

Control
- BLE
Input Voltage
- 120-277 V
Input Voltage Domain
- AC
Channels
- 1
Output Voltage
- 24 V
Output Power Range
- 100
Curent load max
- 4.13A
Certificates
- UL

Internal Reference: 2110151
HS Code: 85044031

General

7 specifications

Control

BLE

Input Voltage

120-277 V

Input Voltage Domain

Channels

Output Voltage

24 V

Output Power Range

100

Curent load max

4.13A

Operating

1 specification

Certificates

All Files

1 file

PDF

LM-100-24-U1B2 User Manual.pdf

7.0 MB

Download
