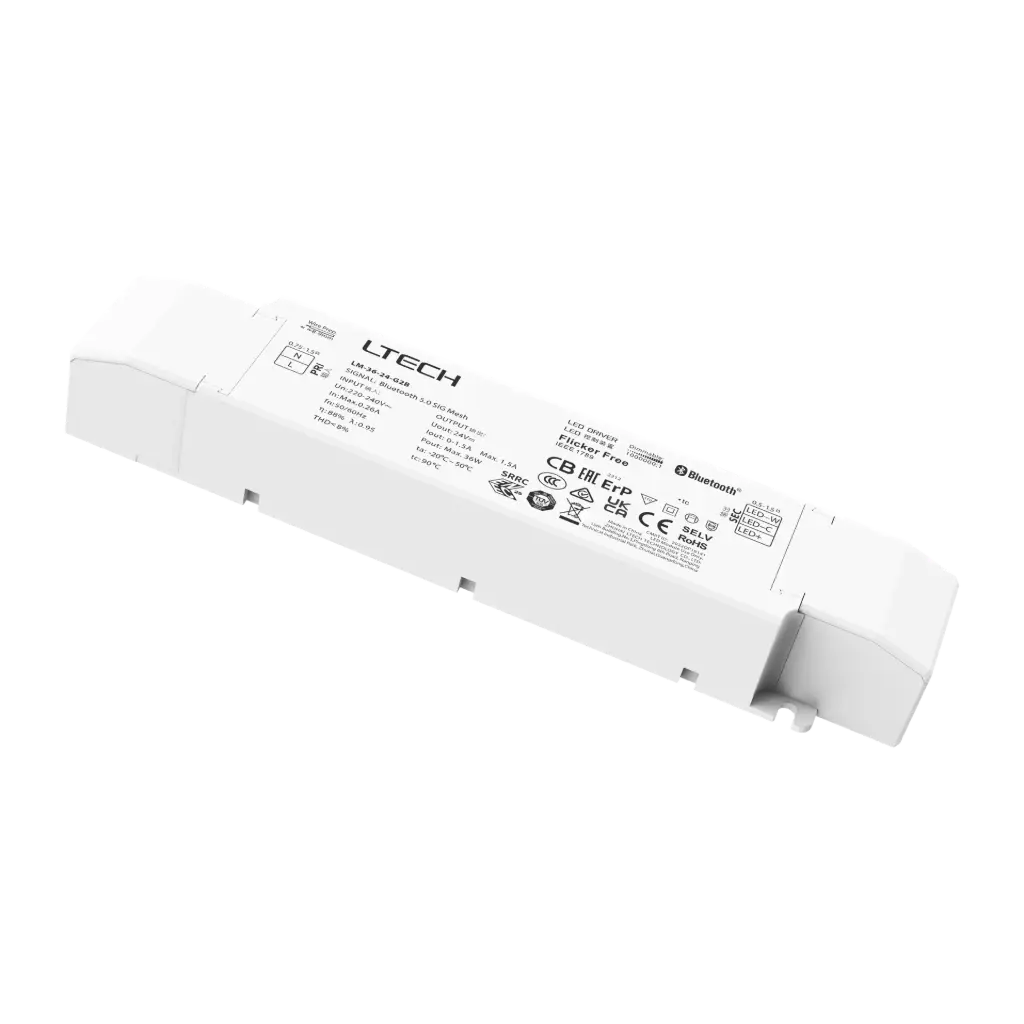

LTECH Xiaolei Driver CV BLE 5.0 2CH 24V 36W - LM-36-24-G2B

Intelligent Tunable White LED Driver (Constant Voltage)

Compact, lightweight driver with V0 flame-retardant PC housing from SAMSUNG/COVESTRO and screwless end cap. Dimming 0-100% with LED start at 0.0001%, full flicker-free dimming, soft-on and fade-in, and video-compatible. Change fade time, power-on status, and other parameters via NFC programmer or App, with Bluetooth 5.0 SIG Mesh for reliable iOS/Android control. Complies with EU ErP Directive, standby <0.5 W. Overheat, overvoltage, overload, and short-circuit protection with auto-recovery. Suitable for Class I/II/III indoor fixtures. Lifetime up to 100,000 hours, 5-year warranty (Rubycon capacitor).

Control
- BLE
Input Voltage
- 220-240 V
Input Voltage Domain
- AC
Channels
- 2
Output Voltage
- 24 V
Output Power Range
- 36 W
Current load/ ch
- 0.75A
Curent load max
- 1.5A

Internal Reference: 2110402
HS Code: 85044031

General

8 specifications

Control

Input Voltage

220-240 V

Input Voltage Domain

Channels

Output Voltage

Output Power Range

Current load/ ch

0.75A

Curent load max

All Files

1 file

LM-36-24-G2B User Manual.pdf

2.8 MB

Download
