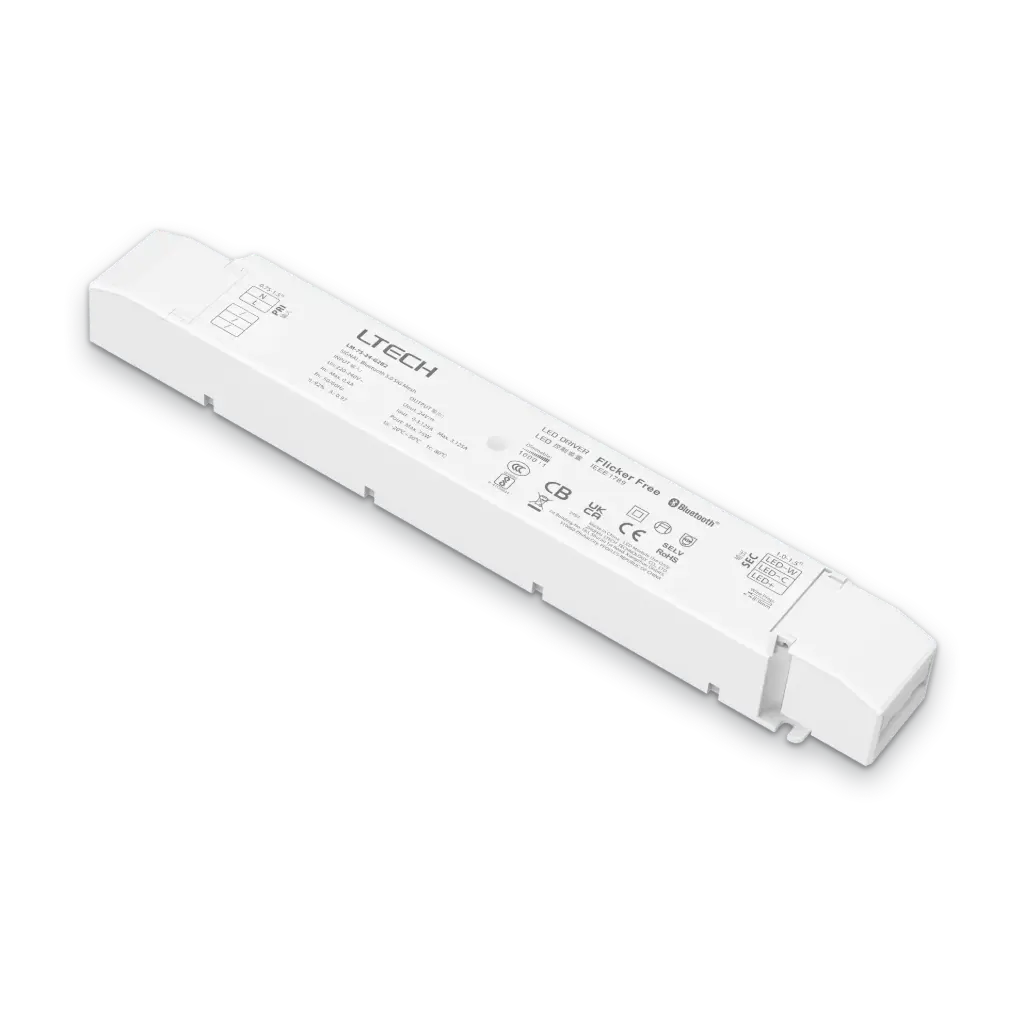

LTECH Xiaolei Driver CV BLE 5.0 2CH 24V 75W - LM-75-24-G2B2

Tunable White LED Driver

This compact constant voltage LED driver is built for easy installation and reliable indoor use. Its lightweight, flame-retardant housing features a screwless clamshell design with adjustable end caps, making it simple to fit into different fixtures. Two SELV output channels support tunable white lighting from 2700K to 6500K, while the constant power design keeps brightness consistent across color temperatures. It delivers smooth, flicker-free dimming from 0 to 100%, down to 0.1%, with soft fade-in for better visual comfort. Bluetooth 5.0 Mesh allows stable wireless control from iOS and Android devices. Designed with advanced thermal management and full safety protection, it offers dependable performance for Class I, II, and III indoor luminaires. Up to 50,000-hour lifetime. 2-year warranty (Rubycon capacitor).

Input Voltage: 220-280Vdc / 198-264Vac
Input Current: Max. 0.4A / 230Vac
Output Current: Max. 3.125A
Output Voltage: 24Vdc
Output Power: Max. 75W
Working Temperature: ta: -20~50°C tc: 80°C
Dimensions: L293 × W43 × H30 (mm)

Control
- BLE
Input Voltage
- 220-240 V
Input Voltage Domain
- AC
Channels
- 2
Output Voltage
- 24 V
Output Power Range
- 75 W
Current load/ ch
- 1.56A
Curent load max
- 3.125A

Internal Reference: 2110102
HS Code: 85044031

General

8 specifications

Control

Input Voltage

220-240 V

Input Voltage Domain

Channels

Output Voltage

Output Power Range

Current load/ ch

1.56A

Curent load max

3.125A

All Files

1 file

LM-75-24-G2B2 User Manual.pdf

6.1 MB

Download
