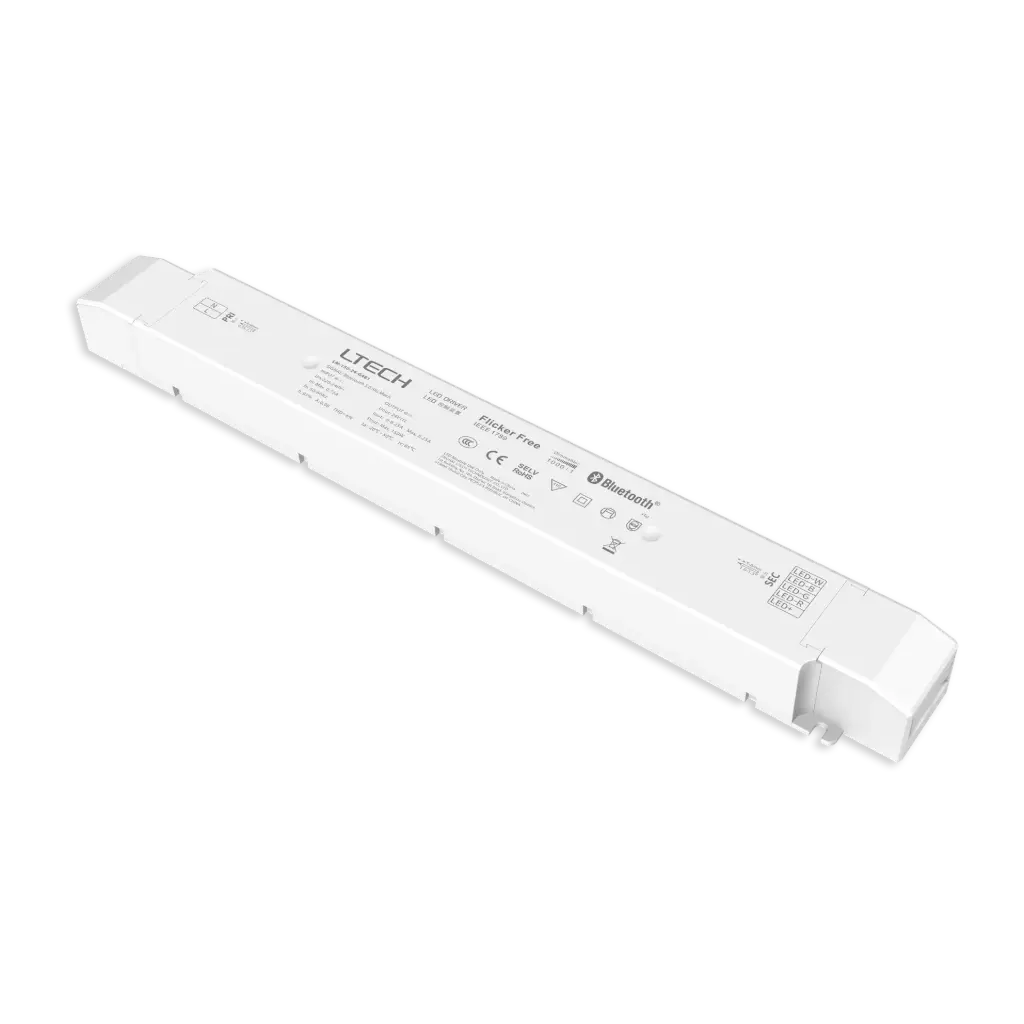

LTECH Xiaolei Driver CV BLE 5.0 4CH 24V 150W - LM-150-24-G4B1

Intelligent Full Color RGBW LED Driver (Constant Voltage)

Small and lightweight with V0 flame-retardant PC housing from SAMSUNG/COVESTRO. Clamshell, screwless design with removable end cap for easy length adjustment. Bluetooth 5.0 SIG Mesh ensures stable, reliable control via iOS or Android devices. Soft-on and fade-in dimming for visual comfort, 0-100% dimming down to 0.1%. Compliant with EU ErP Directive, standby power <0.5W. Features signal isolation, thermal management, and protection against overheat, overvoltage, overload, and short circuit with automatic recovery. Up to 50,000-hour lifetime. 2-year warranty (Rubycon capacitor).

Input Voltage: 198-264Vac / 200-280Vdc
Dimming Interface: Bluetooth 5.0 SIG Mesh
Output Voltage: 24Vdc
Output Current: Max. 6.25A
Output Power: Max. 150W
Working Temperature: ta: -20~50°C tc: 85°C
Dimensions: L352 × W43 × H30 (mm)
Weight (G.W): 430g

Control
- BLE
Input Voltage
- 220-240 V
Input Voltage Domain
- AC
Channels
- 4
Output Voltage
- 24 V
Output Power Range
- 150
Current load/ ch
- 1.56A
Curent load max
- 6.25A

Internal Reference: 2110204
HS Code: 85044031

General

8 specifications

Control

Input Voltage

220-240 V

Input Voltage Domain

Channels

Output Voltage

Output Power Range

Current load/ ch

1.56A

Curent load max

6.25A

All Files

1 file

LM-150-24-G4B1 User Manual.pdf

8.4 MB

Download
