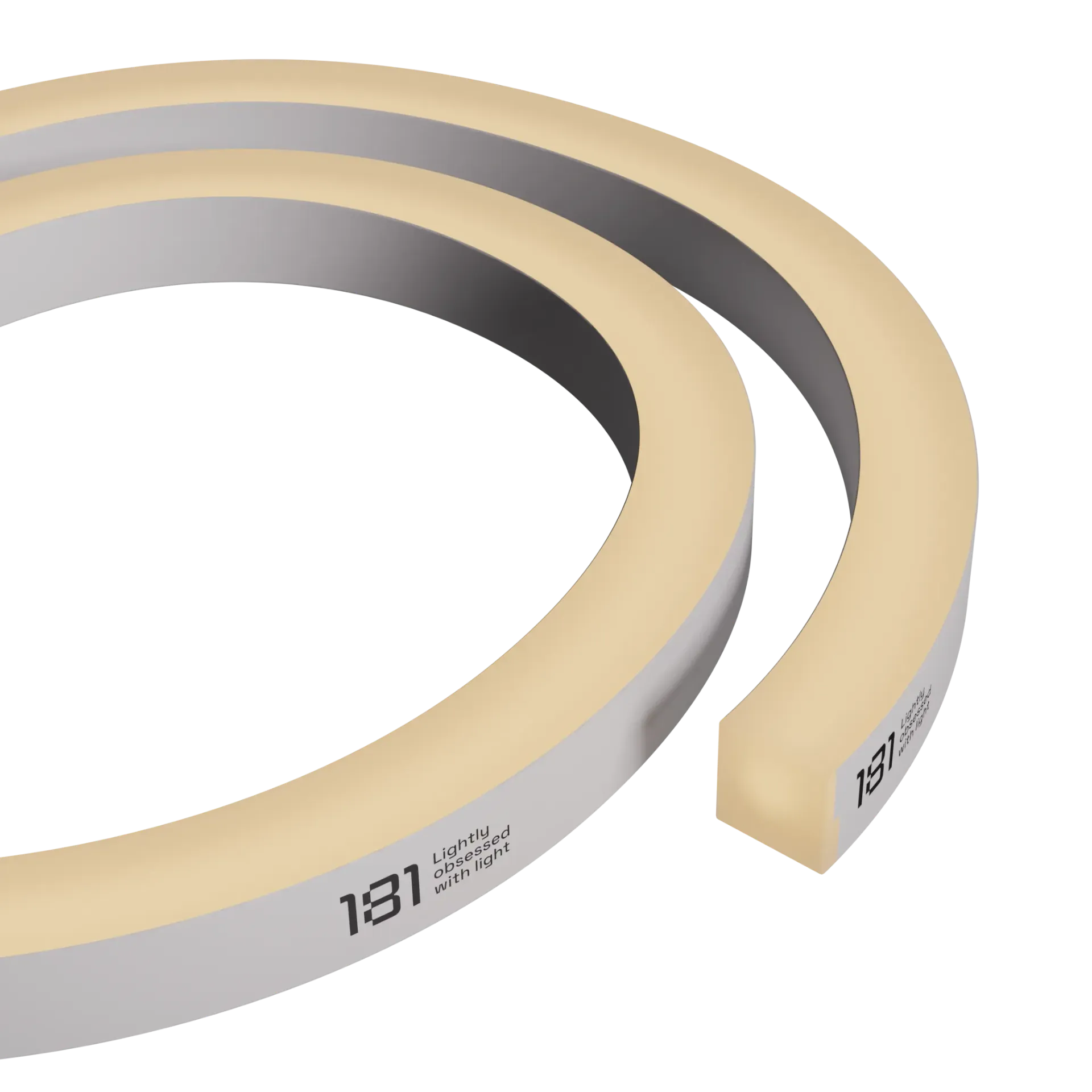

Neonflex Side Bend White

€ 0.00 € 0.00

  • Shape
  • Optics
  • Color Range
  • Power Consumption
  • Power Consumption
  • Power Consumption
  • CRI
  • CRI
  • Lumen Maintenance Hours (h)
  • Environment
  • Installation Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Connector Material
  • Connector Type
  • Housing Color - White
  • Cover Material
  • Color / CCT
  • Control
  • Input Voltage
  • Power Consumption
  • Cable entry - Direct (Single / Double feed)
  • Cable configuration

HS Code: 85395210

General
Optics 120°
Color Range White
Power Consumption 10 W/m , 12 W/m , 15 W/m
CRI ≥80 , ≥90
Control PWM
Installation Conditions & Lighting Data
Lumen Maintenance Hours (h) 70.000 Hours L70 @ 25°C 50.000 Hours L70 @ 50°C
Installation Temperature (°C) 0 to +50
Operating
Environment Outdoor
Working Temperature (°C) -40 to +55
Saltwater Resistant Yes
UV Resistant Yes
Flame Resistant Yes
IK Rating IK08
IP Rating IP68
Certificates RoHS , CE , UL , UKCA , CB , FCC
Warranty 5 Years
Physical
Housing Material Silicone
Connector Material Nylon (PA66)
Connector Type Bare Wire/M12
Housing Color White
Cover Material Silicon
  • Neonflex Side Bend White 48V Specification Sheet.pdf
  • Neonflex Side Bend White 24V Specification Sheet.pdf
  • Neonflex Side Bend Configuration Form.pdf
  • M12 Connector Cables PWM.pdf
