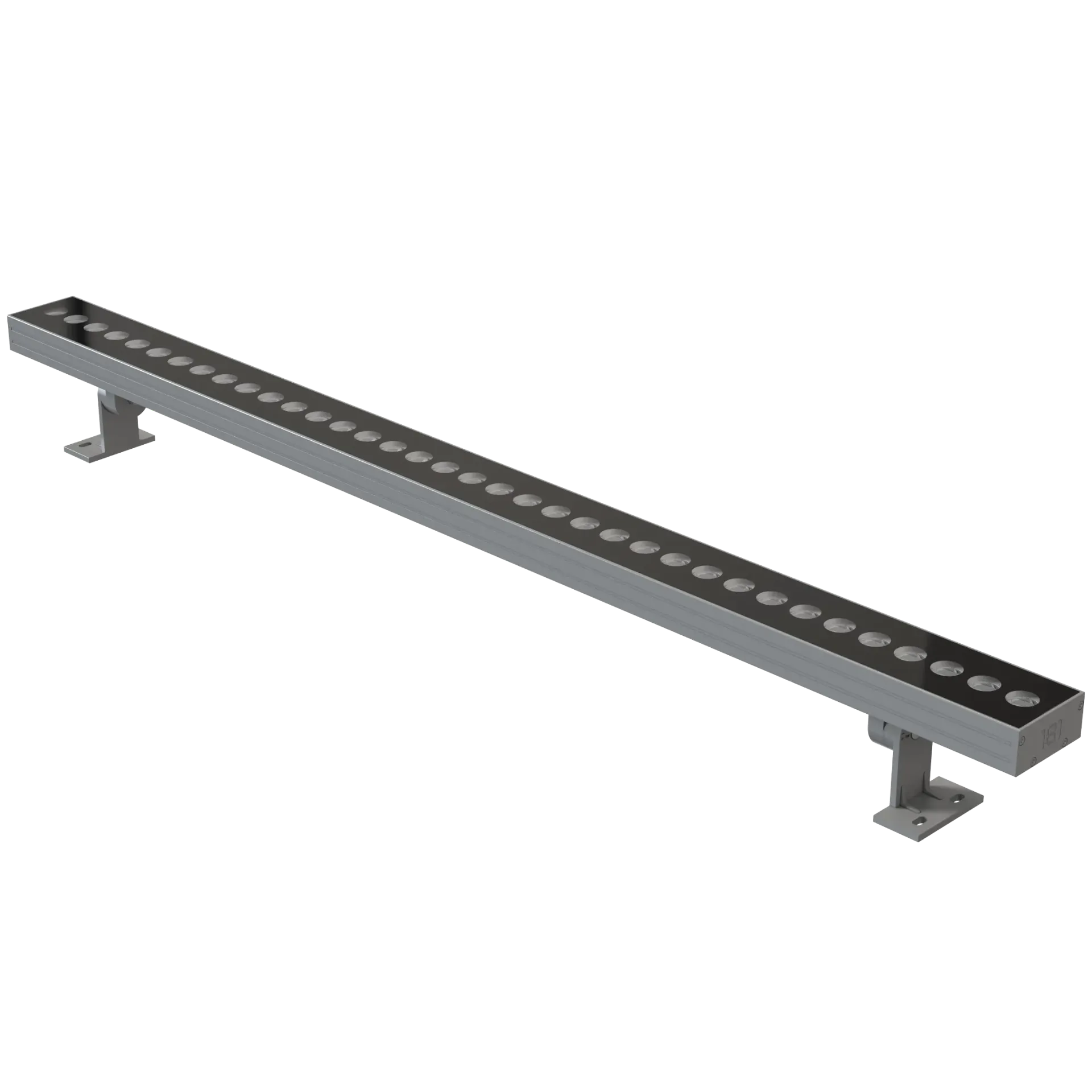

Linear G100 Multi Color

The Linear G100 RGBW is a high-performance outdoor luminaire for dynamic architectural lighting, including façade grazing, washing, and landscape applications. It combines full RGB color with white light (2700K–5000K), delivering smooth transitions and precise illumination for commercial and public spaces. With beam options from 25° to 60° and asymmetric optics, it ensures accurate light control across diverse designs.

↘ Long-Run Performance — Designed for extended runs with reliable DMX (RDM) or PxLNet control

↘ Pixel-Precision Control — 4 pixels per meter for smooth transitions and dynamic architectural effects
€ 0.00 € 0.00

  • Color Range
  • Length
  • Power Consumption
  • LEDs
  • Pixels
  • Channels
  • LED Type
  • CRI
  • CRI
  • Dimming
  • Lumen Maintenance Hours (h)
  • Delivered Lumen (lm)
  • Environment
  • Storage Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • Coastal Environmental Proof
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Dimensions (mm)
  • Color / CCT
  • Optics
  • Control
  • Input Voltage
  • Housing Color - Grey RAL7047
  • Glare control
Add to cart
Contact Us

HS Code: 94051190

01
General
12 specifications
Color Range
Multi Color
Color / CCT
RGBW2700K
CRI
≥80 · (Custom on request)
Control
DMX RDM/ PxLNet
Channels
16/m
Power Consumption
100 W/m
Input Voltage
48 V
LEDs
36/m
Pixels
4/m
Optics
25°
LED Type
4in1
Dimming
16 Bit
02
Installation Conditions & Lighting Data
2 specifications
Lumen Maintenance Hours (h)
L80B10 50.000
Delivered Lumen (lm)
6565 (G 25º)
03
Operating
11 specifications
Environment
Outdoor
Storage Temperature (°C)
-30 to +70
Working Temperature (°C)
-25 to +65
Saltwater Resistant
Yes
Coastal Environmental Proof
Yes
UV Resistant
Yes
Flame Resistant
Yes
IK Rating
IK08
IP Rating
IP67
Certificates
CE · RoHS
Warranty
5 Years
04
Physical
7 specifications
Length
500 mm
Housing Material
Aluminum (AA6063)
Connector Material
Nylon (PA66)
Connector Type
M16 5Pin
Housing Color
Grey RAL7047
Cover Material
Tempered Glass
Dimensions (mm)
67.5 x 103
01
All Files
6 files
PDF
Linear G100 Multi Color RGBW - Specification Sheet.pdf
2.0 MB
Download
PDF
Linear G100 - Dimension Sheet V2.pdf
295 KB
Download
PDF
Installation guide Linear G100.pdf
582 KB
Download
PDF
M16 5Pin Connector Cables DiGi.pdf
687 KB
Download
ZIP
Product Drawings.zip
5.1 MB
Download
ZIP
Linear G100 Multi Color IES ldt.zip
31 KB
Download
6 files
Data Leader cable

Data Leader cable

€ 20.00
55 in stock
M16 5Pin Jumper Cable

M16 5Pin Jumper Cable

€ 22.00
44 in stock
M16 5Pin Leader Cable

M16 5Pin Leader Cable

€ 18.00
97 in stock
M16 5Pin Power Cable

M16 5Pin Power Cable

€ 28.00
185 in stock
[7910162] M16 5Pin Terminator End Cap

[7910162] M16 5Pin Terminator End Cap

€ 6.50
49 in stock
