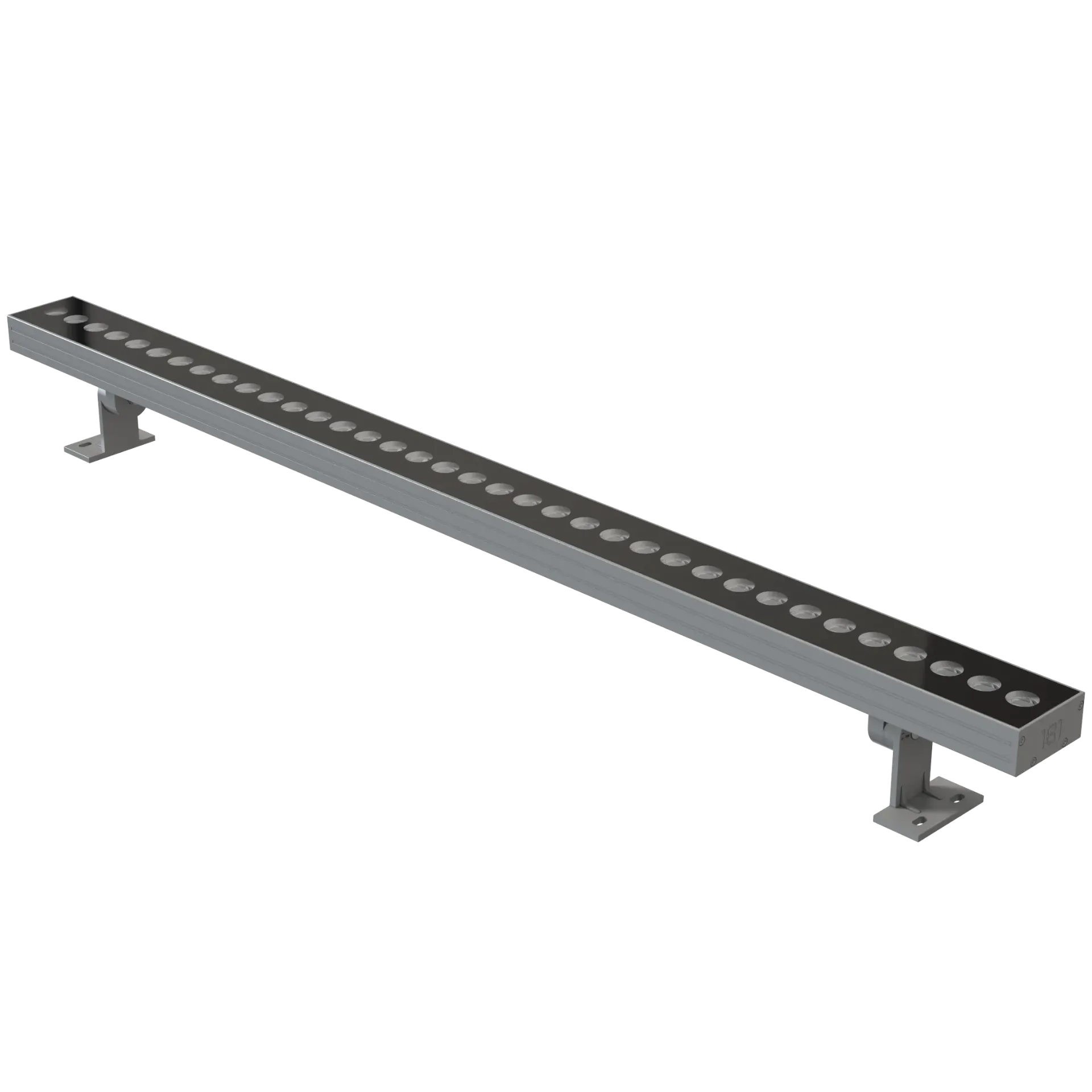

Linear G100 Tunable White

The Linear G100 Tunable White delivers control for outdoor environments requiring adaptive white light. This robust fixture is ideal for grazing and washing applications and offers smooth CCT transitions from warm 1800K to cool 6000K, making it ideal for public plazas, building exteriors, and hospitality areas where tunable white technology supports both human comfort and architectural enhancement in weather-exposed installations. Combined with a range of beam angles from 15° to 60° and specialized asymmetric distribution options, the Linear G100 Tunable White offers exceptional optical versatility for lighting designers while maintaining consistent architectural appeal.

↘ Long-Run Performance – Engineered for extended lighting runs with reliable DMX (RDM) or PxLNet control.

↘ Pixel-Precision Control – 4 pixels per meter enabling smooth color transitions, dynamic effects, and precise architectural lighting design
€ 0.00 € 0.00

  • Color Range
  • Length
  • Power Consumption
  • LEDs
  • Pixels
  • Channels
  • LED Type
  • CRI
  • CRI
  • Dimming
  • Lumen Maintenance Hours (h)
  • Delivered Lumen (lm)
  • Environment
  • Storage Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • Coastal Environmental Proof
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Dimensions (mm)
  • Color / CCT
  • Optics
  • Control
  • Input Voltage
  • Housing Color - Grey RAL7047
  • Glare control
Add to cart
Contact Us

HS Code: 94051190

01
General
12 specifications
Color Range
Tunable White
Color / CCT
1800K+6000K
CRI
≥80 · (Custom on request)
Control
DMX RDM/ PxLNet
Channels
12/m
Power Consumption
100 W/m
Input Voltage
48 V
LEDs
36/m
Pixels
4/m
Optics
15°
LED Type
2in1
Dimming
16 Bit
02
Installation Conditions & Lighting Data
2 specifications
Lumen Maintenance Hours (h)
L80B10 50.000
Delivered Lumen (lm)
6916
03
Operating
11 specifications
Environment
Outdoor
Storage Temperature (°C)
-30 to +70
Working Temperature (°C)
-25 to +65
Saltwater Resistant
Yes
Coastal Environmental Proof
Yes
UV Resistant
Yes
Flame Resistant
Yes
IK Rating
IK08
IP Rating
IP67
Certificates
CE · RoHS
Warranty
5 Years
04
Physical
7 specifications
Length
500 mm
Housing Material
Aluminum (AA6063)
Connector Material
Nylon (PA66)
Connector Type
M16 5Pin
Housing Color
Grey RAL7047
Cover Material
Tempered Glass
Dimensions (mm)
67.5 x 103
