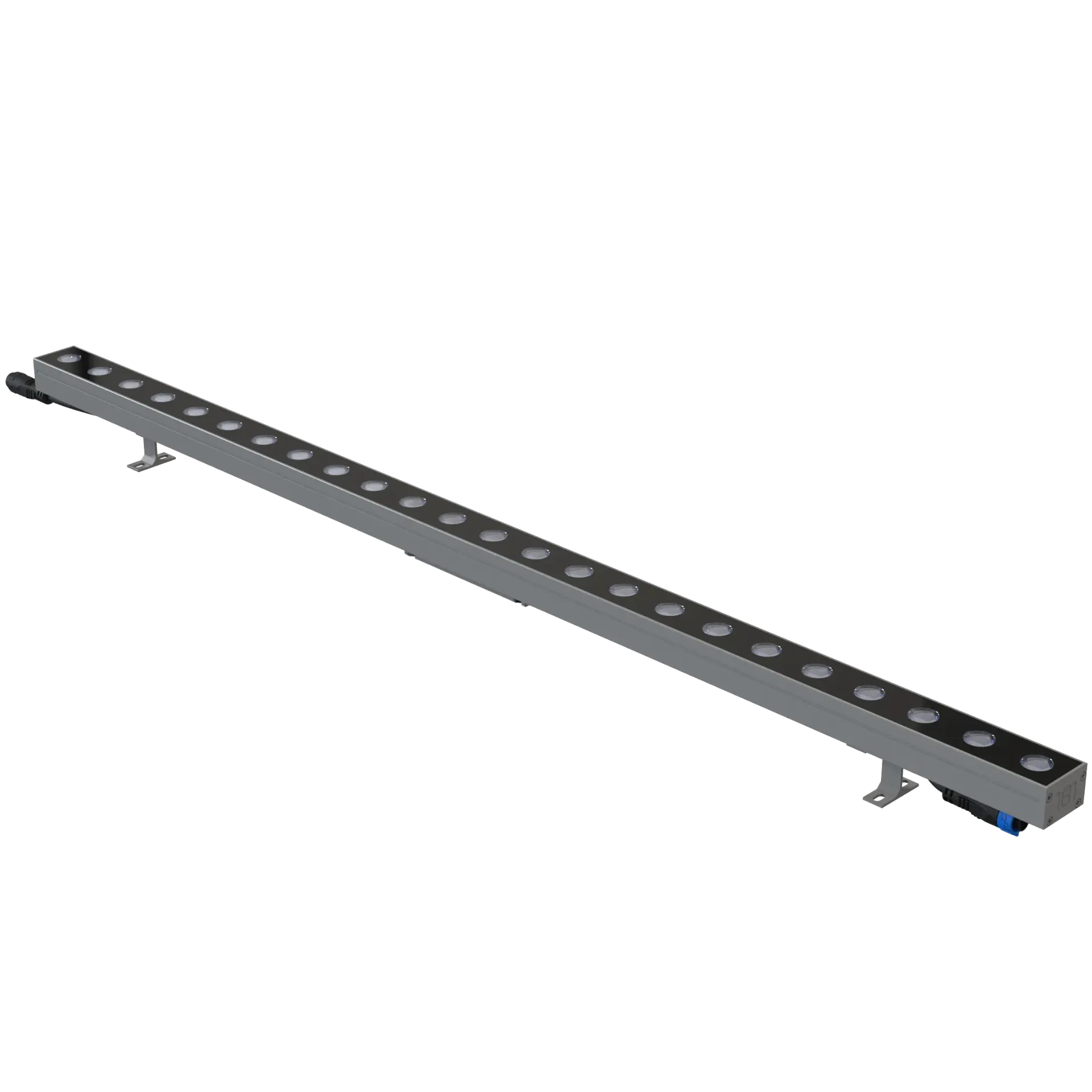

Linear G36 Tunable White

Color Model

• Tunable White

Power Consumption

• 36 W/m

LED Count

• 24/m

Pixels

• 4/m

Channels

• 12/m

LED Type

• 2in1

CRI

• ≥80

CRI

• (Custom on request)

Dimming

• 16 Bit

Lumen Maintenance Hours (h)

• L80B10 50.000

Delivered Lumen (lm)

• 2946

Environment

• Outdoor

Storage Temperature (°C)

• -30 to +70

Working Temperature (°C)

• -25 to +65

Saltwater Resistant

• Yes

Coastal Environmental Proof

• Yes

UV Resistant

• Yes

Flame Resistant

• Yes

IK Rating

• IK08

IP Rating

• IP67

Certificates

• CE

Certificates

• RoHS

Warranty

• 5 Years

Housing Material

• Aluminum (AA6063)

Connector Material

• Nylon (PA66)

Connector Type

• M16 5Pin

Cover Material

• Tempered Glass

Dimensions (LxWxH) (mm)

• 42 x 63.7

Control

• DMX - RDM / PxLNet

Input Voltage

• DC (48 V)

Housing Color - Grey RAL7047
