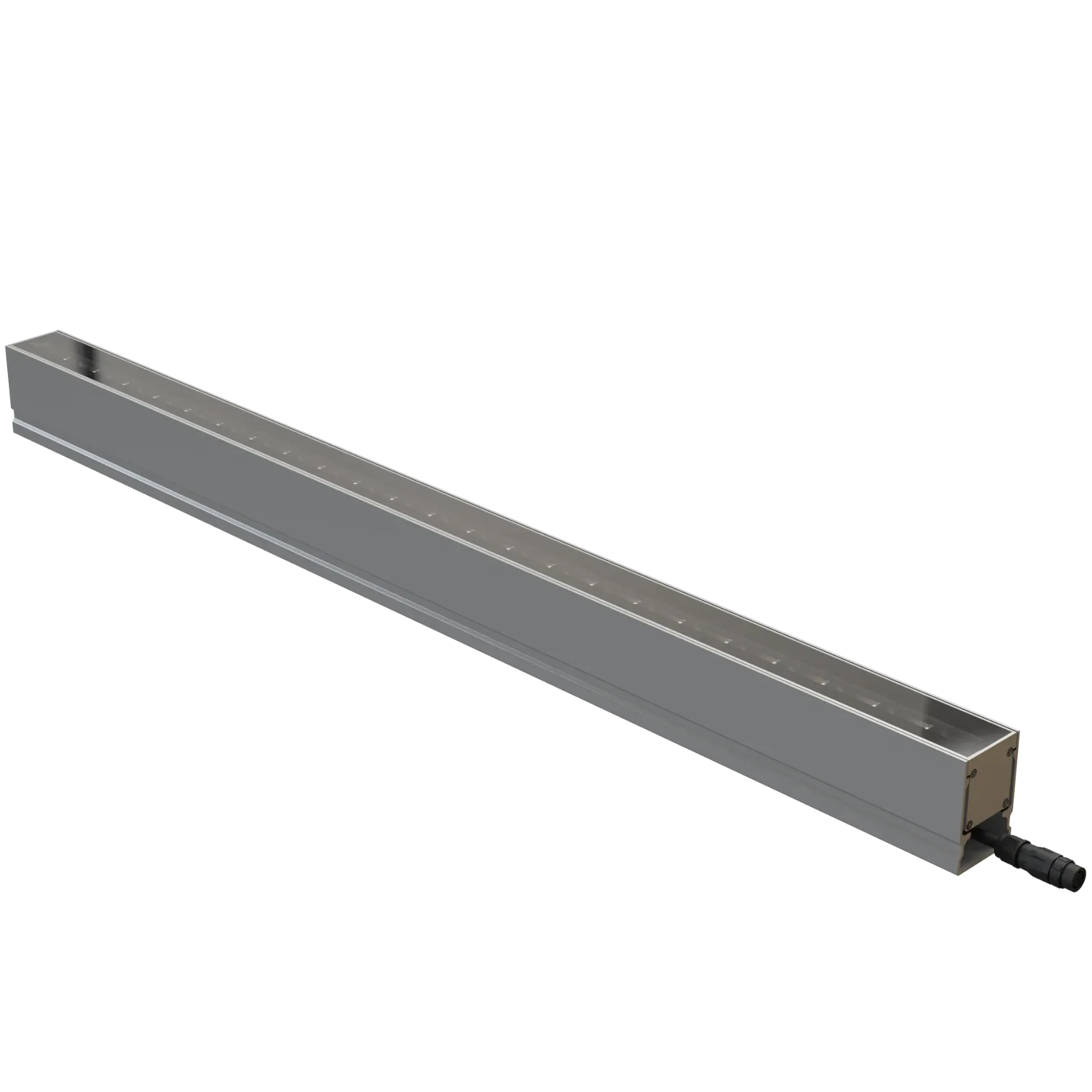

Linear Inground Multi Color

Color Model

• Multi Color

Power Consumption

• 54 W/m

LED Count

• 24/m

Pixels

• 4/m

Channels

• 16/m

LED Type

• 4in1

CRI

• ≥80

CRI

• (Custom on request)

Dimming

• 16 Bit

Lumen Maintenance Hours (h)

• L70B10 50.000

Environment

• Outdoor

Storage Temperature (°C)

• -30 to +70

Working Temperature (°C)

• -25 to +60

Saltwater Resistant

• Yes

UV Resistant

• Yes

Flame Resistant

• Yes

IK Rating

• IK08

IP Rating

• IP68

Certificates

• CE

Certificates

• RoHS

Warranty

• 3 Years

Housing Material

• Aluminum (AA6063)

Connector Material

• Nylon (PA66)

Connector Type

• M17 5Pin

Cover Material

• Tempered Glass

Dimensions (LxWxH) (mm)

• 50 x 62

Control

• DMX - RDM / PxLNet

Input Voltage

• DC (48 V)

Housing Color - Grey RAL7047
