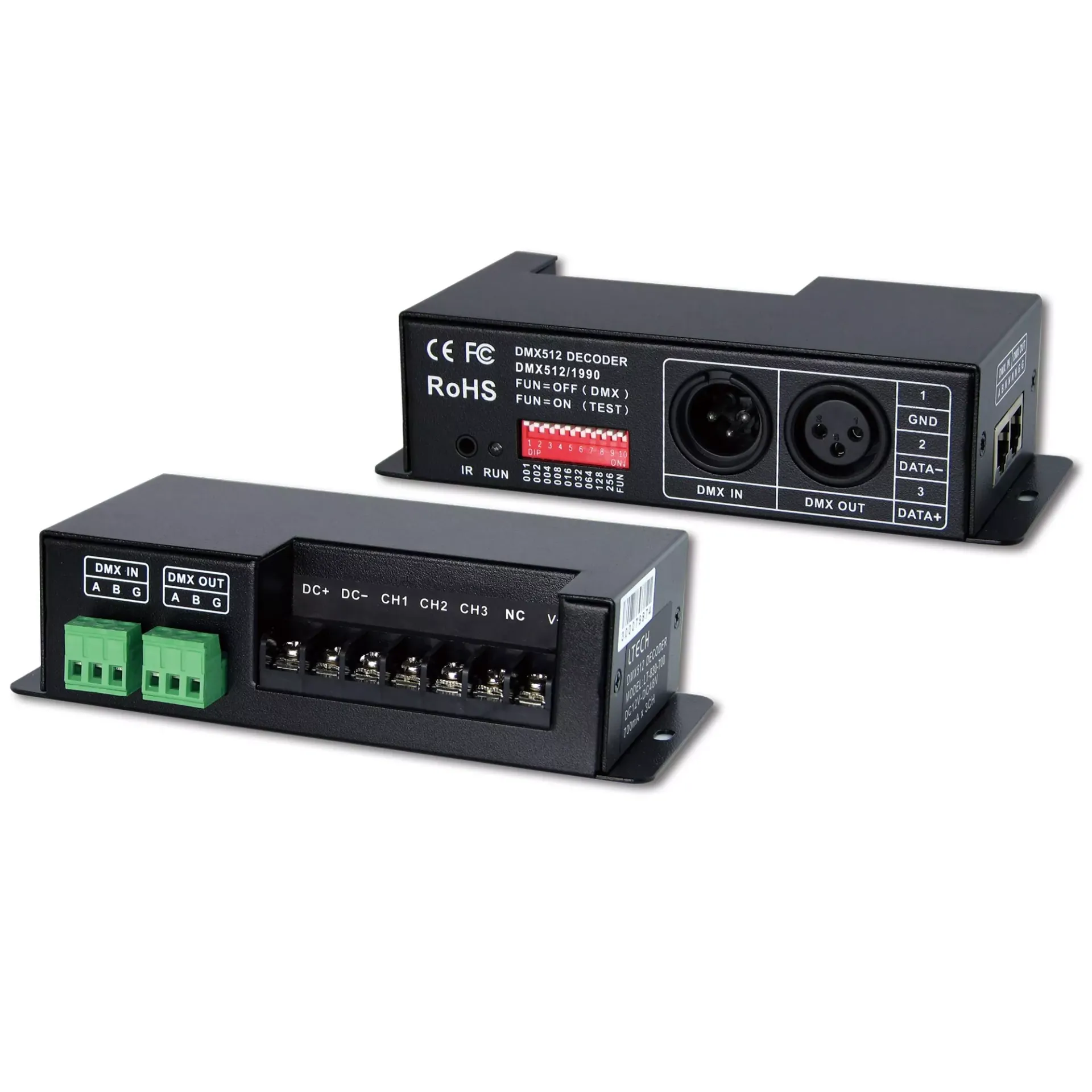

DMX/RDM 3CH CC Decoder
This LED Controller supports bi-directional DMX512 communication with RDM protocol for remote address management (requires RDM-compatible DMX master). It features standard 3-pin XLR, RJ45, and green terminal interfaces, enabling 0-100% dimming and various lighting effects for single color, dual color, or RGB LED lamps.
- Input Signal: DMX512, RDM
- Input Voltage: 12-48Vdc
- Output Voltage: 3-46Vdc
- Current Load: CC 700mA x 3CH
- Output Power: (2.1W~32.2W) x 3CH Max.96.6W
- Working Temperature: -30℃~65℃
- Dimensions: L156 × W78 × H40 (mm)
- Weight (G.W.): 435g
