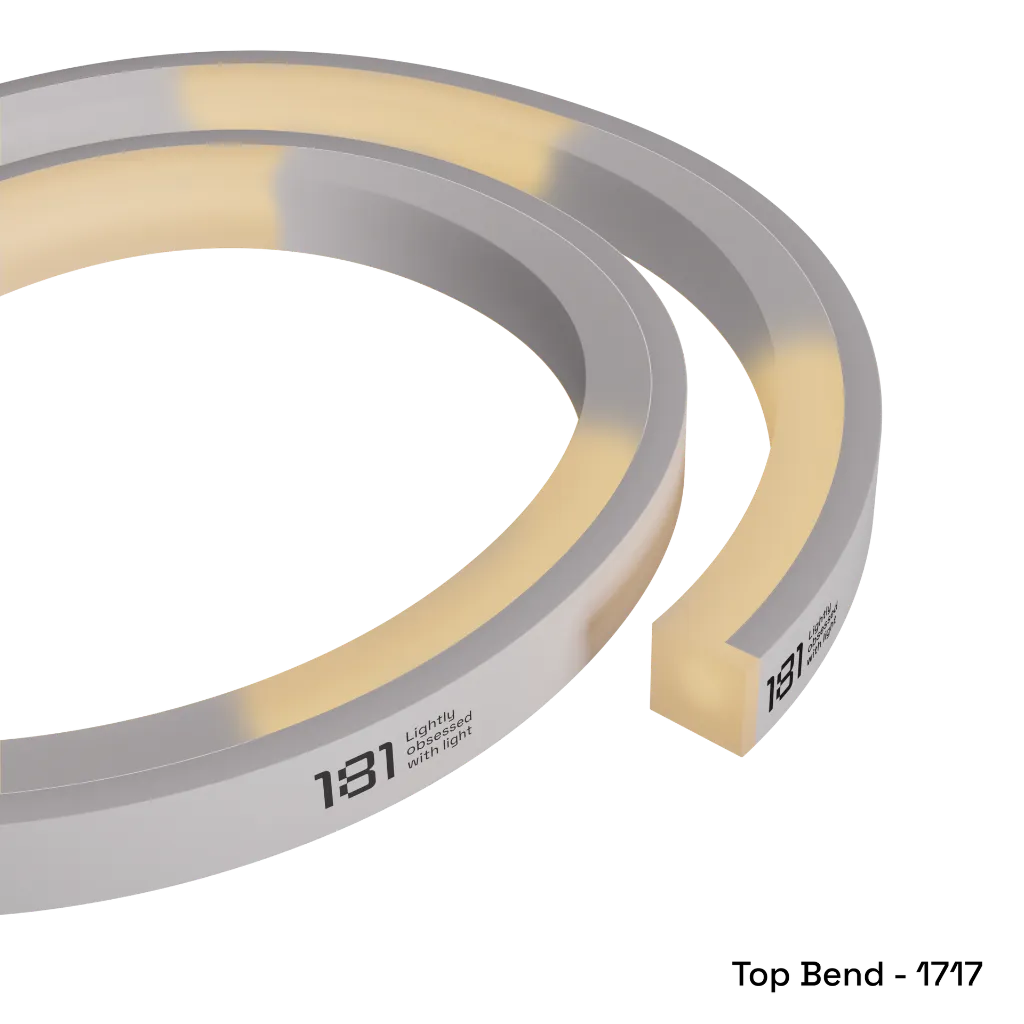

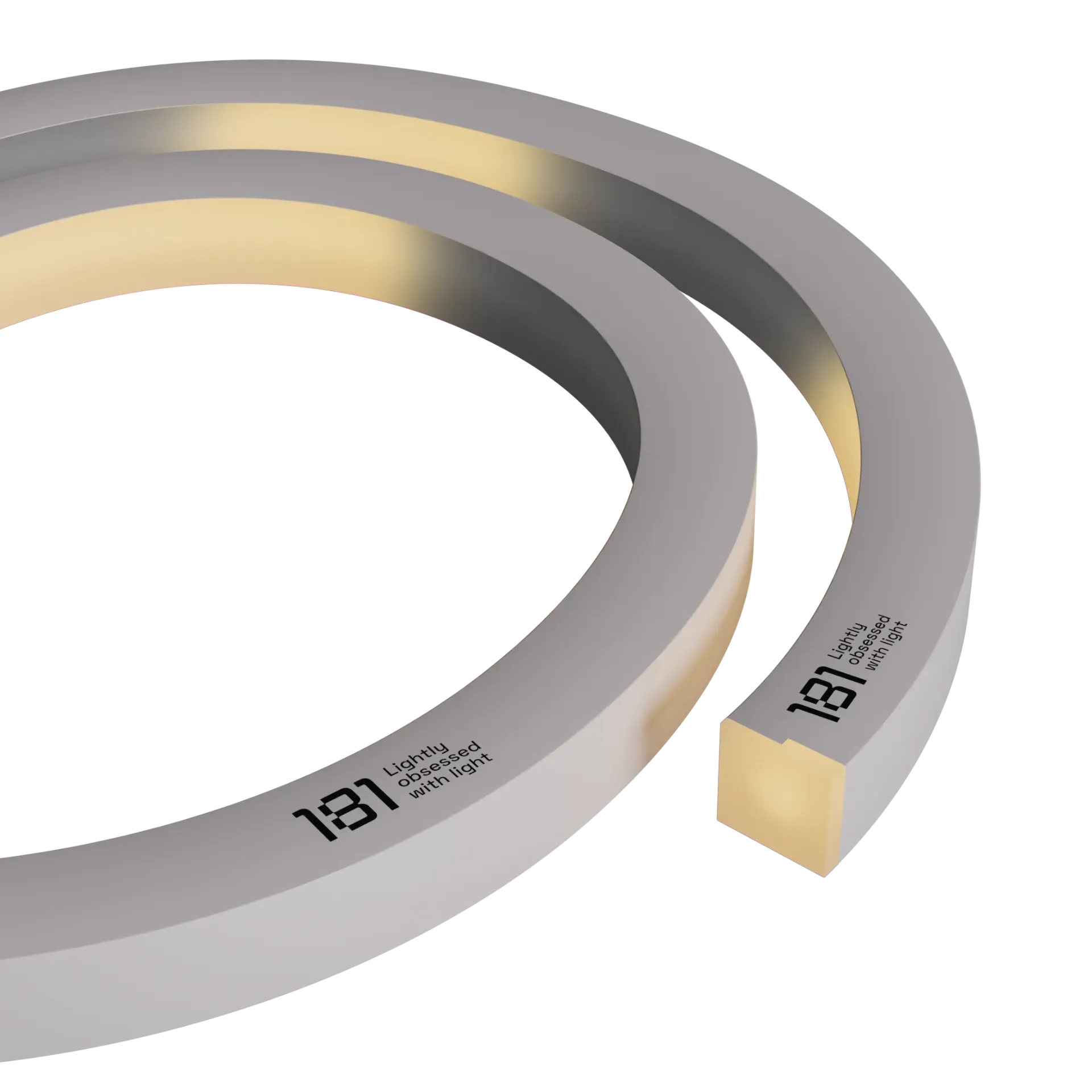

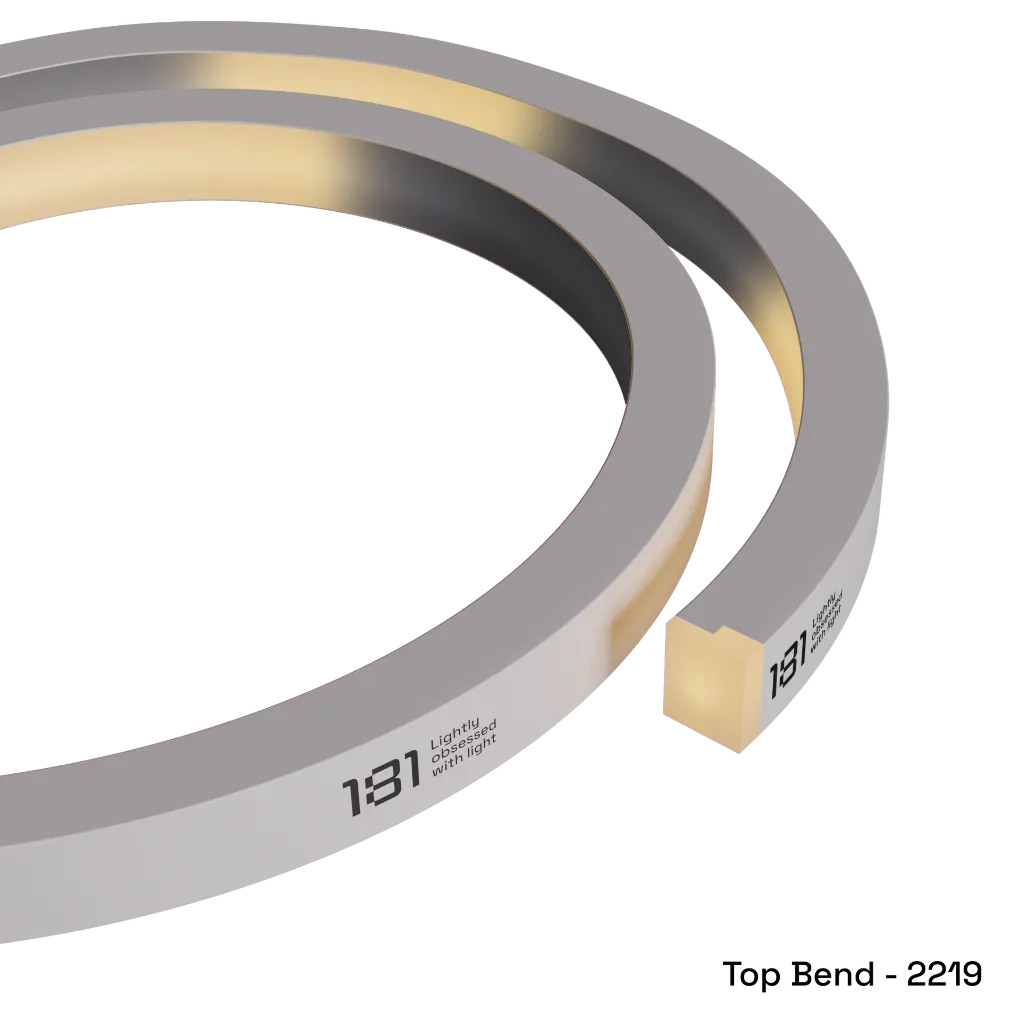

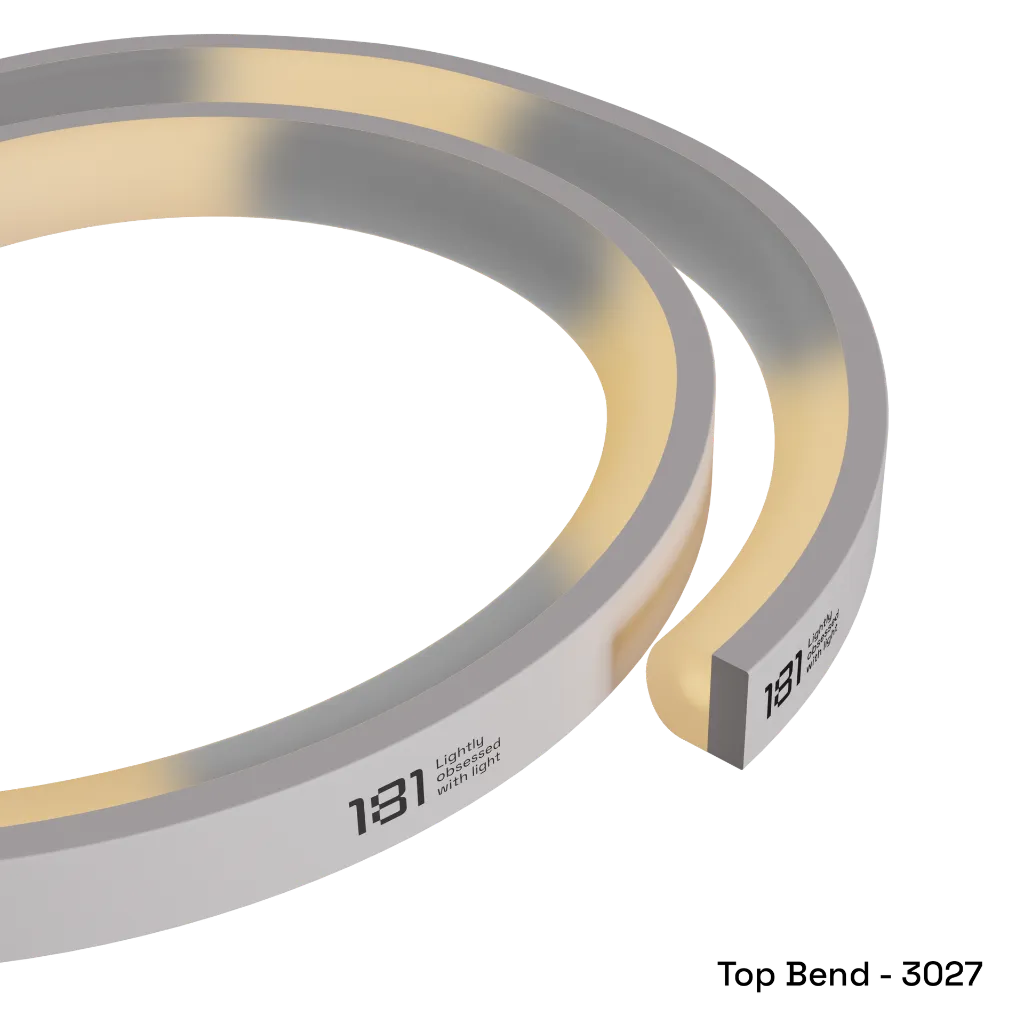

DiGi Neonflex Top Bend White

€ 0.00 € 0.00

  • Shape
  • Power Consumption
  • Power Consumption
  • Color Range
  • CRI
  • CRI
  • Lumen Maintenance Hours (h)
  • Environment
  • Installation Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Connector Material
  • Connector Type
  • Housing Color - White
  • Cover Material
  • Color / CCT
  • Control
  • Input Voltage
  • Cable entry - Direct (Single / Double feed)
  • Cable configuration

HS Code: 85395210

General
Power Consumption 14 W/m , 17 W/m
Color Range White
CRI ≥80 , ≥90
Installation Conditions & Lighting Data
Lumen Maintenance Hours (h) 70.000 Hours L70 @ 25°C 50.000 Hours L70 @ 50°C
Installation Temperature (°C) 0 to +50
Operating
Environment Outdoor
Working Temperature (°C) -40 to +55
Saltwater Resistant Yes
UV Resistant Yes
Flame Resistant Yes
IK Rating IK08
IP Rating IP68
Certificates RoHS , CE , UL , UKCA , CB , FCC
Warranty 5 Years
Physical
Housing Material Silicone
Connector Material Nylon (PA66)
Connector Type Bare Wire/M12
Housing Color White
Cover Material Silicon
  • DiGi Neonflex Top Bend Tunable White 24V Specification Sheet.pdf
  • DiGi Neonflex Top Bend Tunable White 48V Specification Sheet.pdf
  • Neonflex Top Bend Configuration Form.pdf
  • M12 5Pin Connector Cables DiGi.pdf
  • M12 3Pin Connector Cables DiGi.pdf
M12 3Pin Jumper Cable

M12 3Pin Jumper Cable

16.00
801 in stock
M12 3Pin Leader Cable

M12 3Pin Leader Cable

11.00
703 in stock
M12 3Pin Power Cable

M12 3Pin Power Cable

22.00
189 in stock
M12 5Pin Jumper Cable

M12 5Pin Jumper Cable

16.00
620 in stock
M12 5Pin Leader Cable

M12 5Pin Leader Cable

11.00
425 in stock
M12 5Pin Power Cable

M12 5Pin Power Cable

22.00
109 in stock
