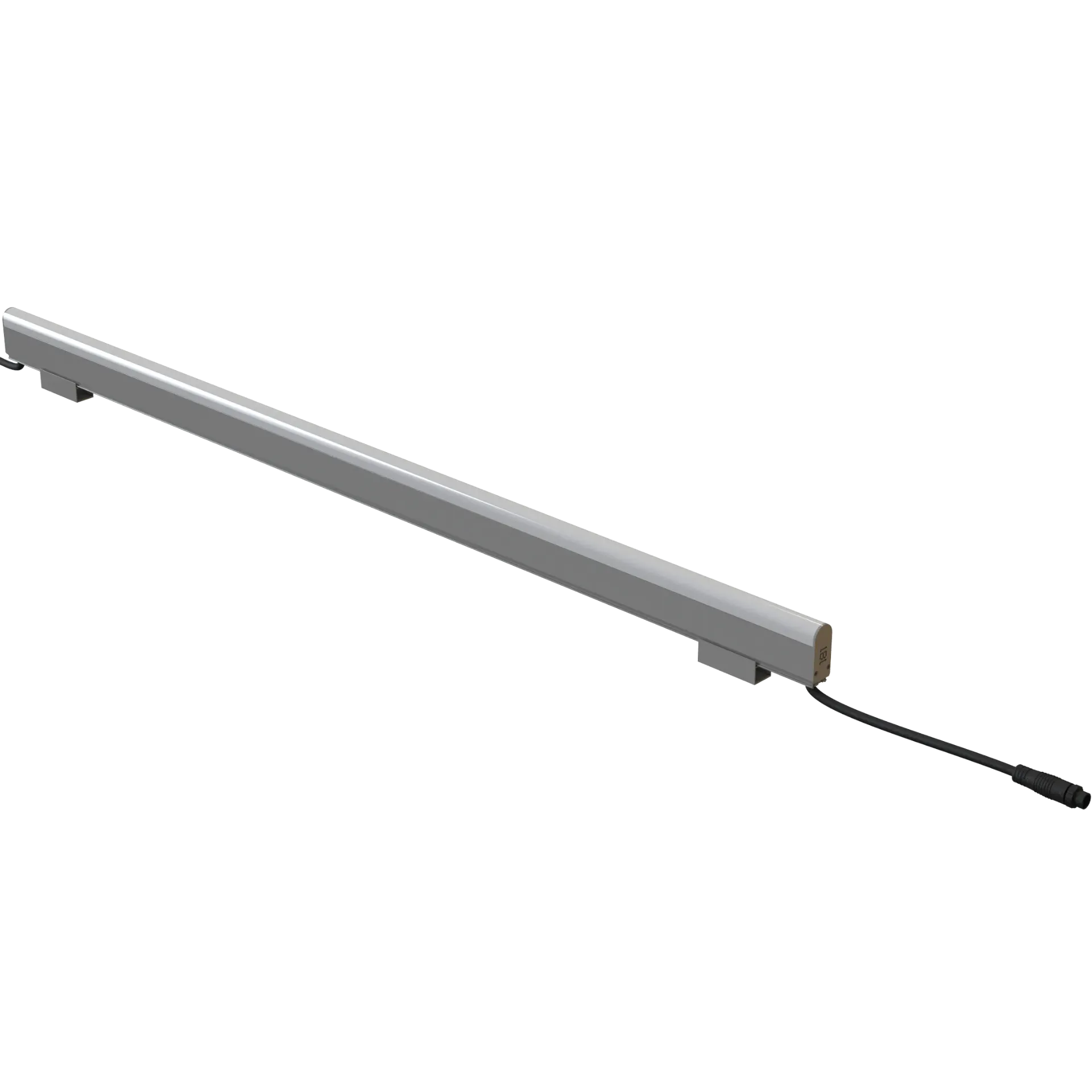

DiGi Linear V-Series

The DiGi Linear V-Series is a high-resolution pixel-controlled linear solution for dynamic architectural displays, media façades, and entertainment installations. Its ultra-tight pixel pitch enables detailed graphics and smooth RGB transitions, while the 48V design ensures efficient performance. Built with lightweight aluminum and IP67 protection, it delivers reliable operation in demanding outdoor environments.

↘ High-Efficiency RGB 3in1 LED — SPI control for precise color mixing and dynamic effects

↘ Premium Environmental Protection — Aluminum construction with IP65/IK07 rating for reliable indoor/outdoor performance in demanding conditions
€ 0.00 € 0.00

  • Color Range
  • Color Range
  • Length
  • Power Consumption
  • Power Consumption
  • Input Voltage
  • Pixels
  • CRI
  • Dimming
  • Lumen Maintenance Hours (h)
  • Delivered Lumen (lm)
  • Environment
  • Storage Temperature (°C)
  • Working Temperature (°C)
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Cable Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Color / CCT
  • Shape
  • Housing Color - Grey RAL7047

HS Code: 94051190

Color Range
Multi Color · Tunable White
Color / CCT
2700K+5700K
CRI
≥80
Power Consumption
13 W/m · 17 W/m
Input Voltage
48 V
Pixels
54/900mm
Dimming
8 Bit
Lumen Maintenance Hours (h)
L70B10 50.000
Delivered Lumen (lm)
449 (RGBW2700K 1500mm Dome Opal)
Environment
Outdoor
Storage Temperature (°C)
-30 to +65
Working Temperature (°C)
-20 to +55
UV Resistant
Yes
Flame Resistant
Yes
IK Rating
IK08
IP Rating
IP67
Certificates
CE · RoHS
Warranty
3 Years
Length
300 mm
Shape
Flat Opal
Housing Material
Aluminum (AW-6063)
Cable Material
PCP
Connector Material
Nylon (PA66)
Connector Type
M12 3Pin
Housing Color
Grey RAL7047
Cover Material
PC
PDF
DiGi Linear V-Series Multi Color RGBW Specification Sheet.pdf
486 KB
Download
PDF
DiGi Linear V-Series Multi Color RGB Specification Sheet.pdf
484 KB
Download
PDF
DiGi Linear V-Series Tunable White Specification Sheet.pdf
480 KB
Download
PDF
DiGi Linear V-Series Dimensions Sheet.pdf
192 KB
Download
PDF
Installation guide DiGi Linear V-Series.pdf
816 KB
Download
PDF
M12 3Pin Connector Cables DiGi.pdf
650 KB
Download
ZIP
DiGi Linear V-Series - Product Drawings.zip
22.4 MB
Download
ZIP
DiGi Linear V-Series IES ldt.zip
74 KB
Download
