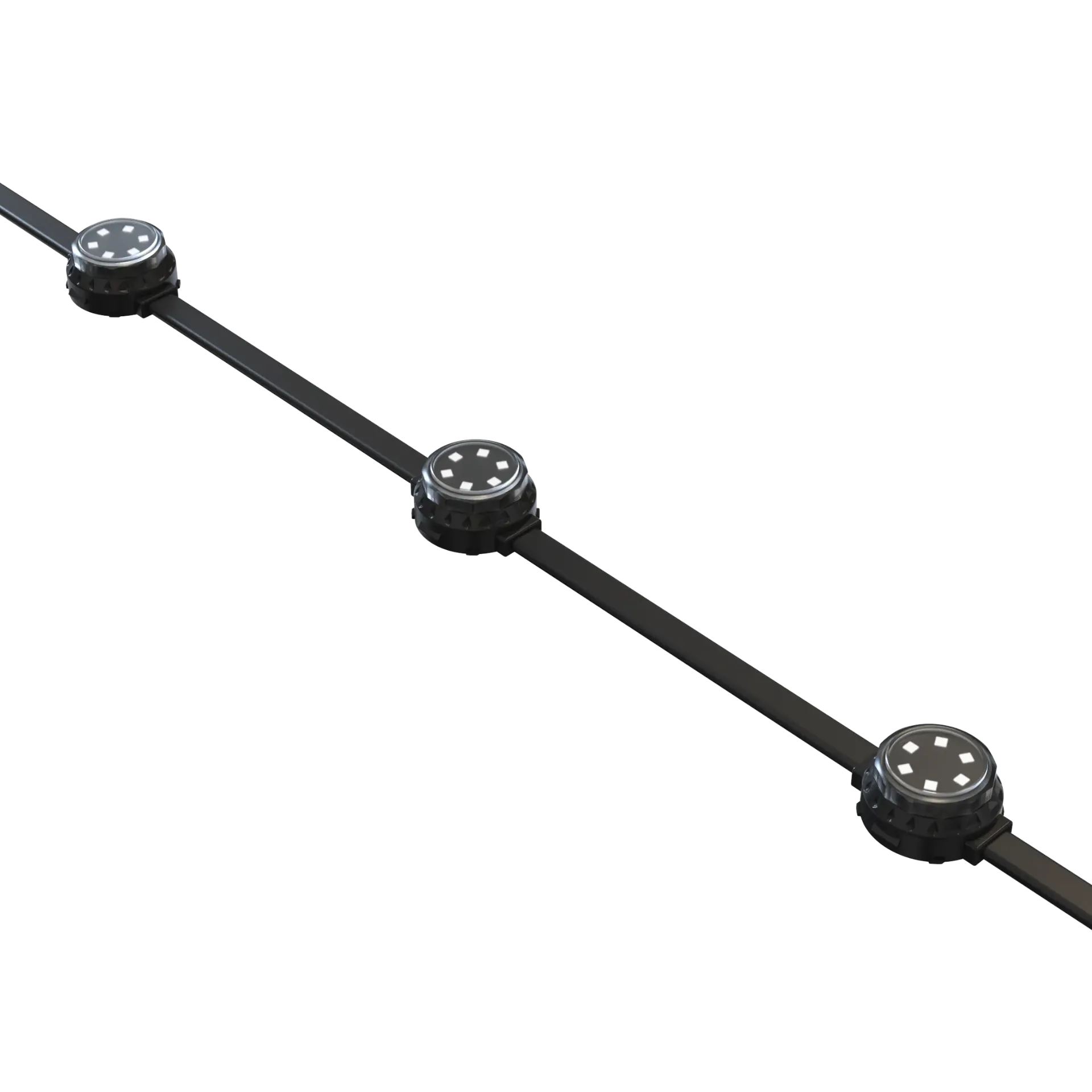

DiGi Module XT Multi Color

€ 0.00 € 0.00

  • Voltage (V)
  • Pixels
  • Optics
  • CRI
  • Dimming
  • Delivered Lumen (lm)
  • Environment
  • Installation Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • Coastal Environmental Proof
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Color / CCT
  • Certificates
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Cable Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Dimensions (mm)
  • Type
  • Control
  • Housing Color - Beige
  • Power Consumption (W)
Add to cart
Contact Us
Voltage (V): 24
Pixels: 1/module
Optics: 110°
CRI: ≥80
Dimming: 16 Bit
Delivered Lumen (lm): 62 (XT6 RGBW2700K Flat Cover)
Environment: Outdoor
Installation Temperature (°C): -40 to +60
Working Temperature (°C): -25 to +55
Saltwater Resistant: Yes
Coastal Environmental Proof: Yes
UV Resistant: Yes
Flame Resistant: Yes
IK Rating: IK08
IP Rating: IP67
Certificates: CE , RoHS , ETL
Warranty: 5 Years
Housing Material: ABS
Cable Material: PCP
Connector Material: Nylon (PA66)
Connector Type: M16 5Pin
Cover Material: PC
Dimensions (mm): 46 x 42 x 21.7
Control: SPI
  • DiGi Module XT Multi Color RGB Specification Sheet.pdf
  • DiGi Module XT Multi Color RGBW Specification Sheet.pdf
  • XT Orderform_V3.1.pdf
  • M16 5Pin Connector Cables DiGi.pdf
  • DiGi Module XT Multi Color IES ldt.zip
  • Product drawings.zip
DiGi Module XT Multi Color RGB Specification Sheet.pdf
DiGi Module XT Multi Color RGBW Specification Sheet.pdf
XT Orderform_V3.1.pdf
M16 5Pin Connector Cables DiGi.pdf
DiGi Module XT Multi Color IES ldt.zip
Product drawings.zip
