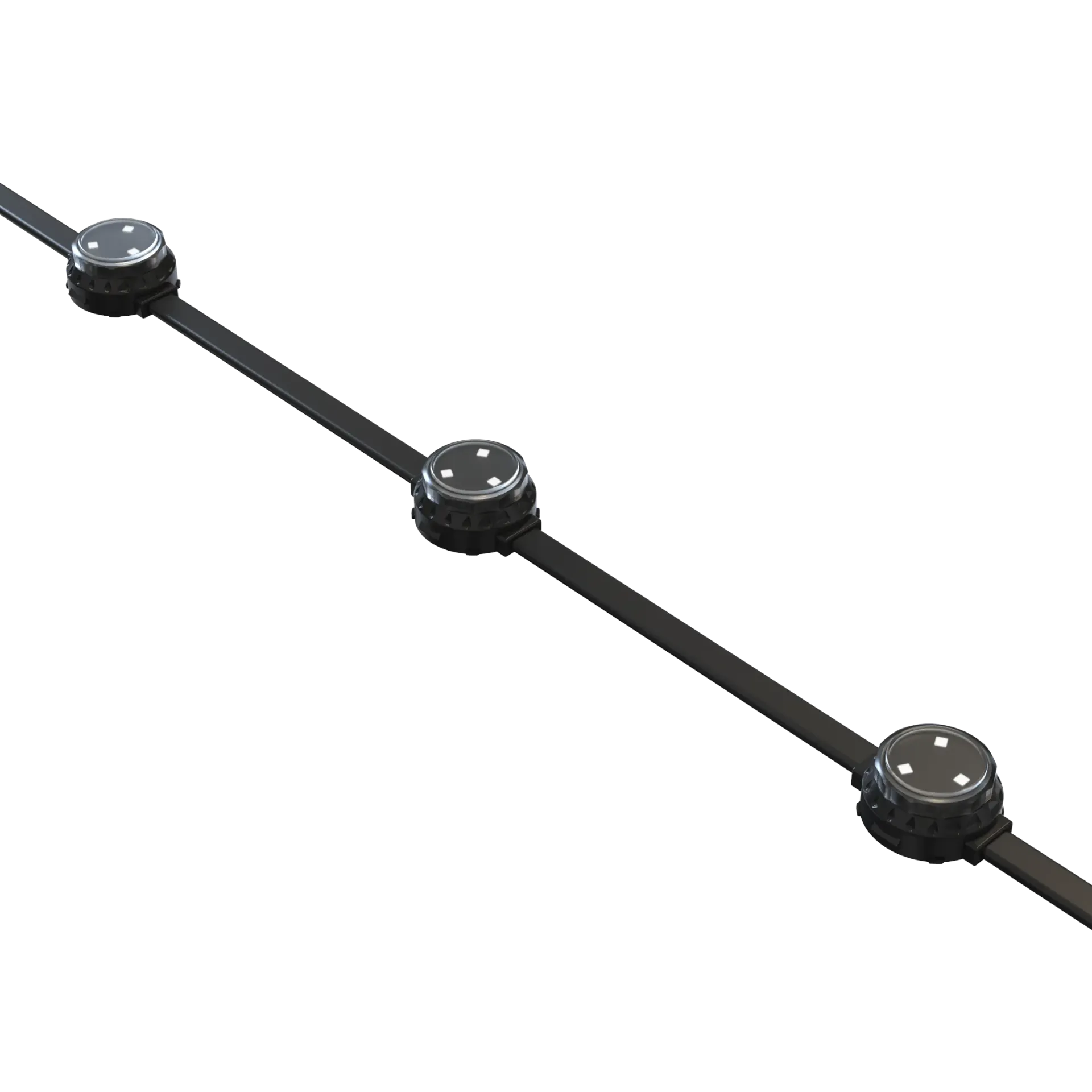

DiGi Module XT White

The DiGi Module XT Series is a compact point-source LED solution for architectural accents, decorative installations, and commercial applications. It delivers precise RGB or RGBW illumination with individual LED control and reliable performance in demanding outdoor environments. Built with IP67-rated housing and a 110° beam angle, it enables flexible integration, while XT3 and XT6 configurations offer scalable solutions for diverse project needs.

↘ Dual Power Architecture — XT3 and XT6 configurations for scalable performance across installations

↘ Complete Control Integration — SPI control with extended data runs and IP67 protection for maximum flexibility
€ 0.00 € 0.00

  • Color Range
  • Color / CCT
  • Power Consumption
  • Input Voltage
  • Pixels
  • Channels
  • Optics
  • LED Type
  • CRI
  • Dimming
  • Environment
  • Installation Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • Coastal Environmental Proof
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Cable Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Dimensions (mm)
  • Type
  • Control
  • Housing Color - Beige
Add to cart
Contact Us

HS Code: 94051190

01
General
12 specifications
Color Range
White
Color / CCT
2700K
CRI
≥80
Control
SPI
Channels
3/module
Power Consumption
1-1.4 W
Input Voltage
24 V
Type
3
Pixels
1/module
Optics
110°
LED Type
Discrete
Dimming
16 Bit
02
Installation Conditions & Lighting Data
1 specification
Installation Temperature (°C)
-40 to +60
03
Operating
10 specifications
Environment
Outdoor
Working Temperature (°C)
-25 to +55
Saltwater Resistant
Yes
Coastal Environmental Proof
Yes
UV Resistant
Yes
Flame Resistant
Yes
IK Rating
IK08
IP Rating
IP67
Certificates
CE · RoHS · ETL
Warranty
5 Years
04
Physical
7 specifications
Housing Material
ABS
Cable Material
PCP
Connector Material
Nylon (PA66)
Connector Type
M16 5Pin
Housing Color
Beige
Cover Material
PC
Dimensions (mm)
46 x 42 x 21.7
01
All Files
4 files
PDF
DiGi Module XT White Specification Sheet.pdf
855 KB
Download
PDF
XT Orderform_V3.1.pdf
653 KB
Download
PDF
M16 5Pin Connector Cables DiGi.pdf
687 KB
Download
ZIP
Product drawings.zip
43.0 MB
Download
