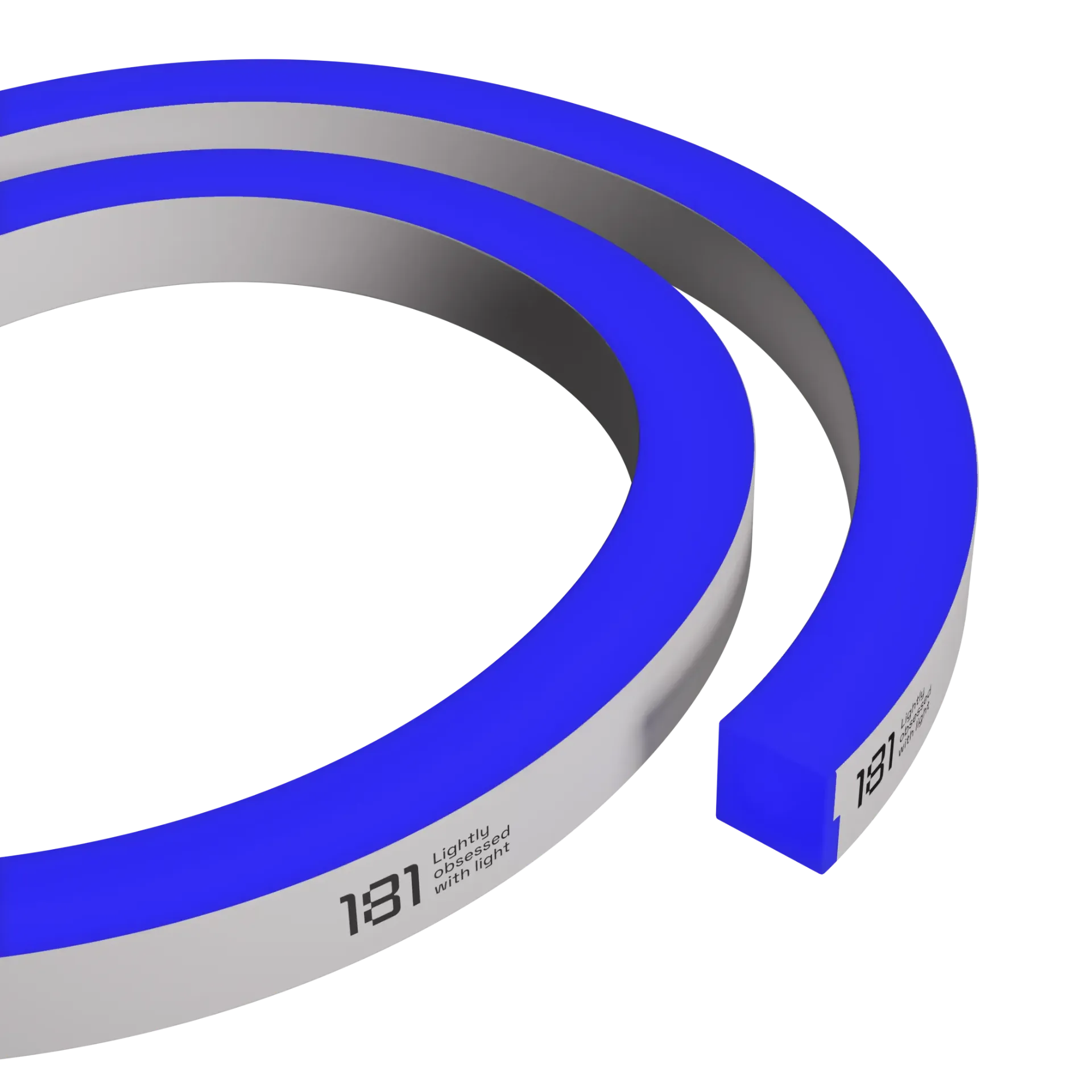

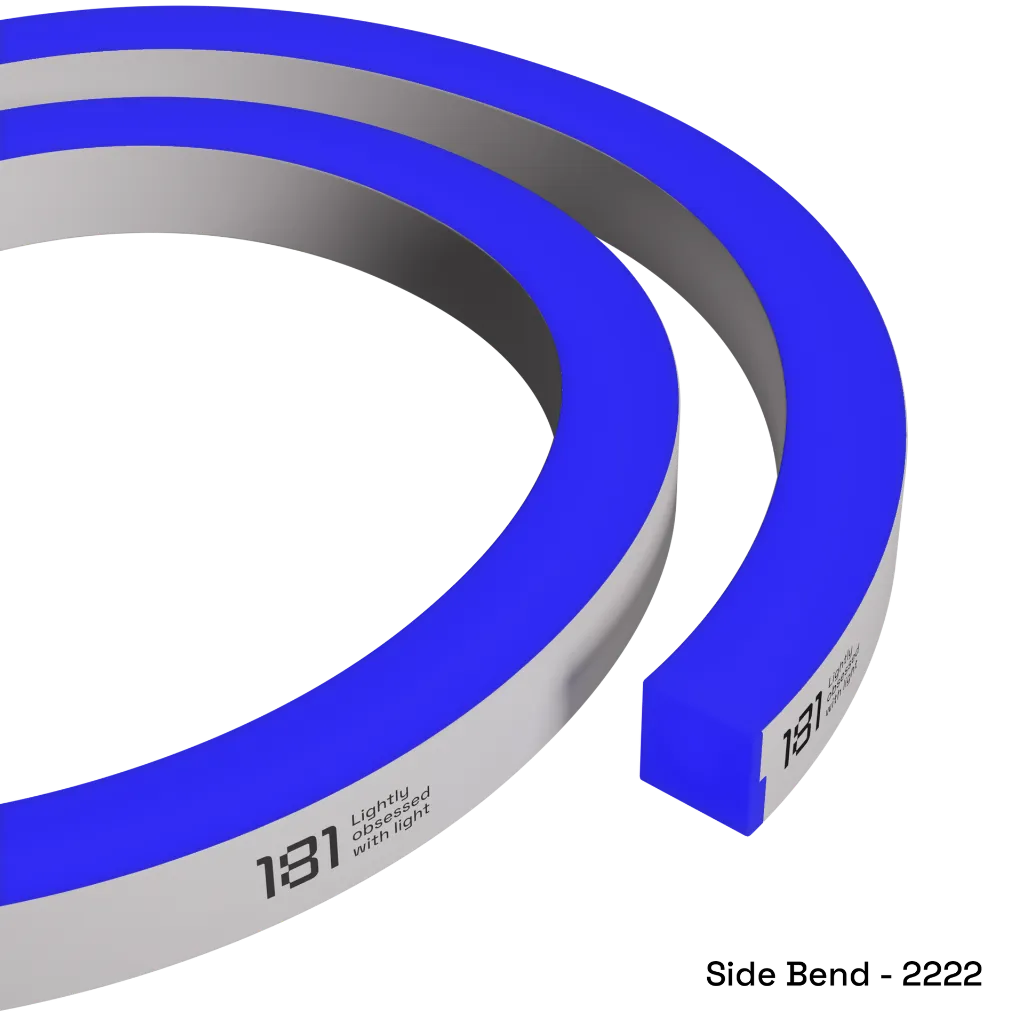

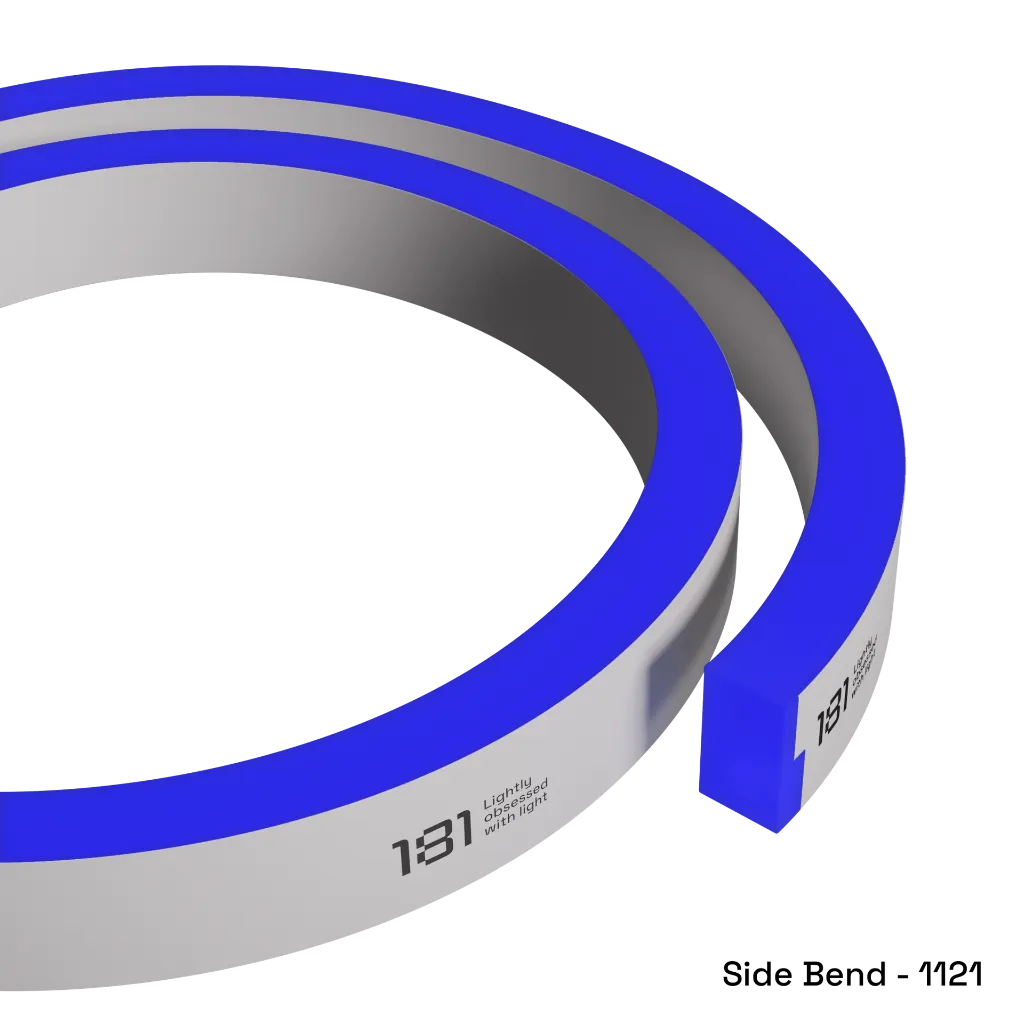

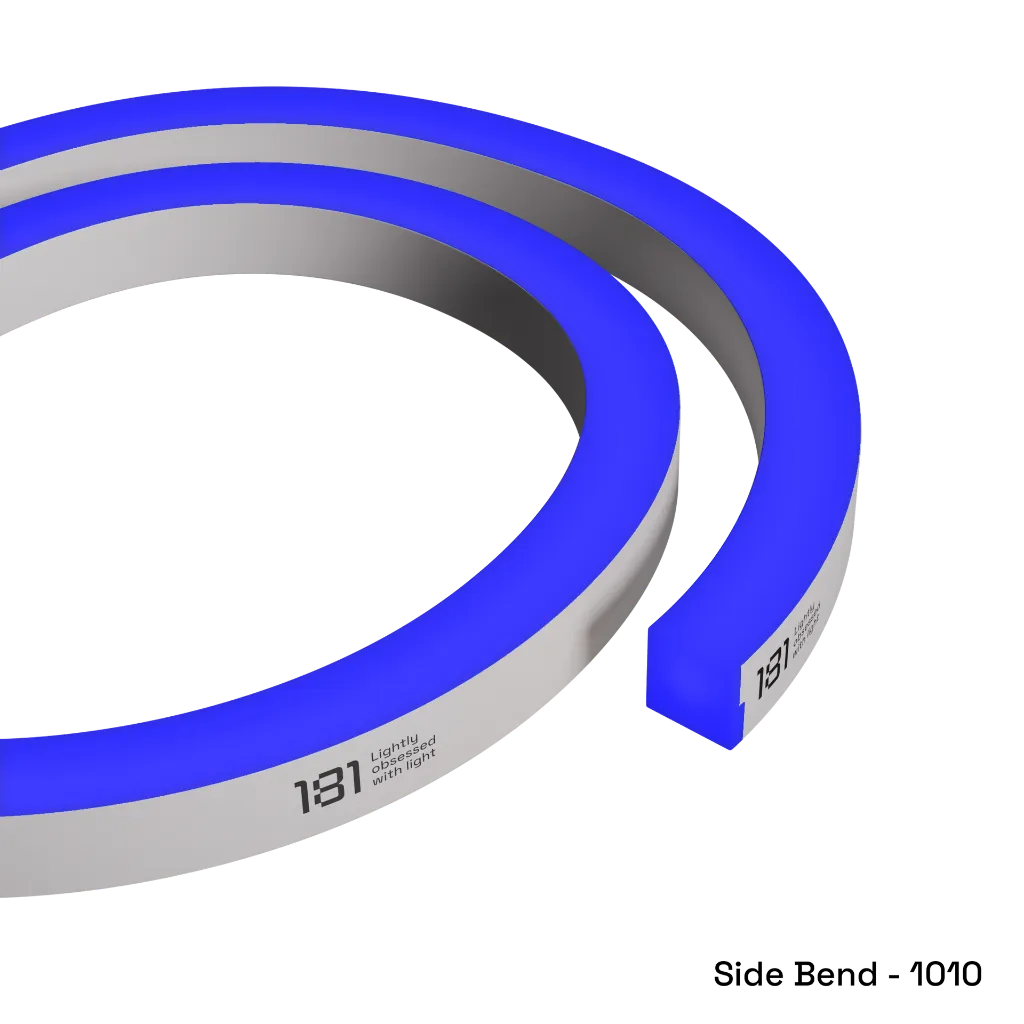

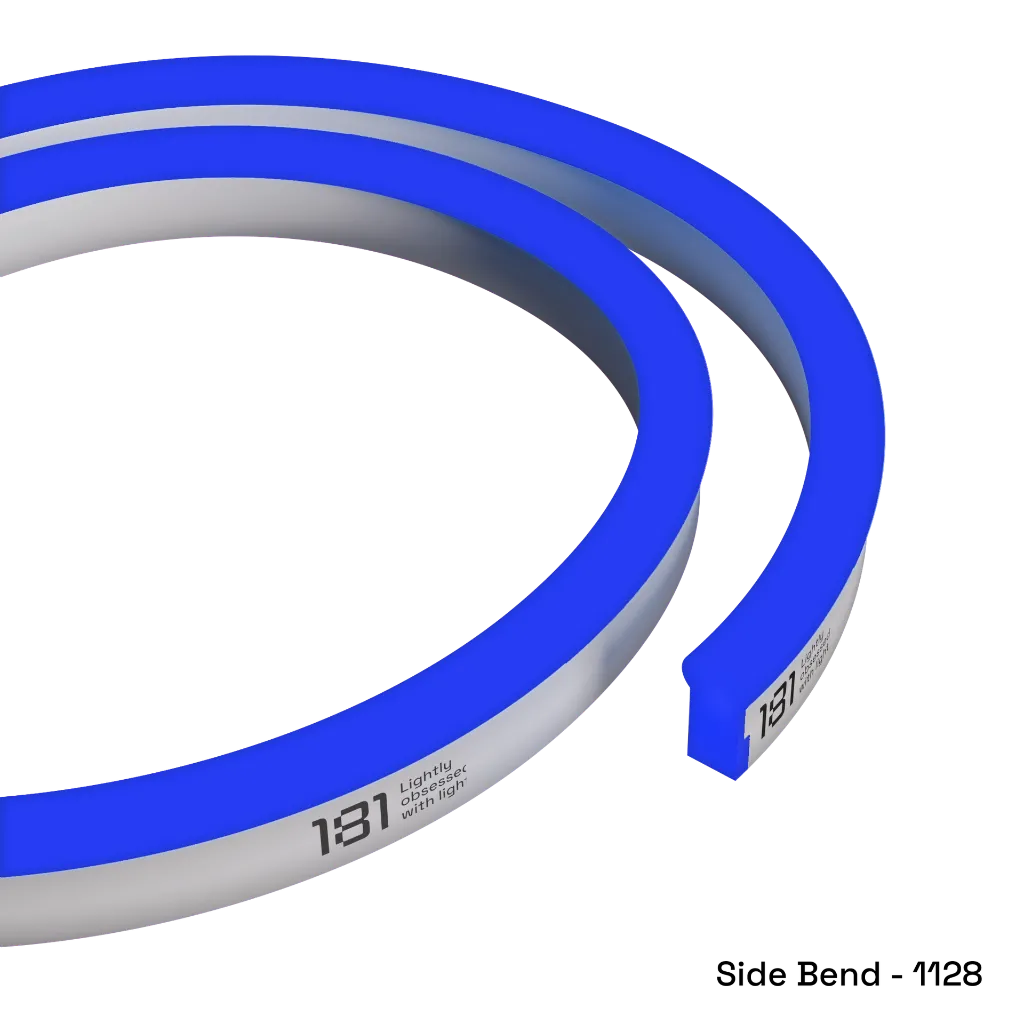

Neonflex Side Bend Single Color

€ 0.00 € 0.00

  • Shape
  • Optics
  • Color Range
  • Power Consumption (W)
  • Power Consumption (W)
  • Power Consumption (W)
  • Power Consumption (W)
  • CRI
  • CRI
  • Lumen Maintenance Hours (h)
  • Environment
  • Installation Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • Coastal Environmental Proof
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Connector Material
  • Connector Type
  • Housing Color - White
  • Cover Material
  • Color / CCT
  • Control
  • Voltage (V)
  • Power
  • Cable entry - Direct (Single / Double feed)
  • Cable configuration
Add to cart
Contact Us
Optics: 120°
Color Range: Single Color
Power Consumption (W): 8/m , 10/m , 12/m , 15/m
CRI: ≥80 , ≥90
Lumen Maintenance Hours (h): 70.000 Hours L70 @ 25°C 50.000 Hours L70 @ 50°C
Environment: Outdoor
Installation Temperature (°C): 0 to +50
Working Temperature (°C): -40 to +55
Saltwater Resistant: Yes
Coastal Environmental Proof: Yes
UV Resistant: Yes
Flame Resistant: Yes
IK Rating: IK08
IP Rating: IP68
Certificates: RoHS , CE , UL , UKCA , CB , FCC
Warranty: 5 Years
Housing Material: Silicon
Connector Material: Nylon (PA66)
Connector Type: Bare Wire/M12
Housing Color: White
Cover Material: Silicon
Control: PWM
  • Neonflex Side Bend Single Color 48V Specification Sheet.pdf
  • Neonflex Side Bend Single Color 24V Specification Sheet.pdf
  • Neonflex Side Bend Configuration Form.pdf
  • M12 Connector Cables PWM.pdf
Neonflex Side Bend Single Color 48V Specification Sheet.pdf
Neonflex Side Bend Single Color 24V Specification Sheet.pdf
Neonflex Side Bend Configuration Form.pdf
M12 Connector Cables PWM.pdf
