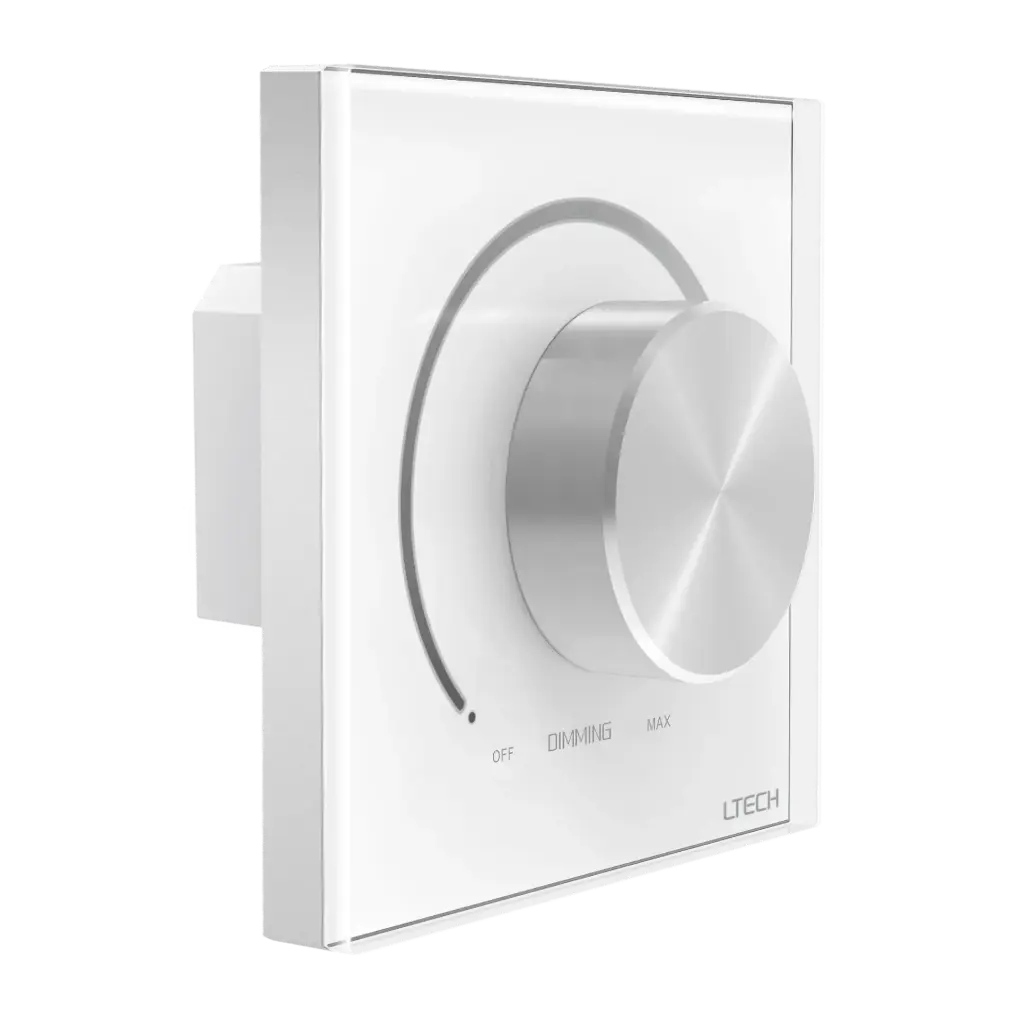

LTECH Knob panel 0-10V - E610P-RF

Active 0-10V dimming controller with 100-240V AC power supply. Supports control via knob panel or RF remote and can work with an L-BUS gateway for remote dimming. Built-in relay allows power cut-off where full shutdown isn’t possible. Note: RF receive only, no transmission.

Input Voltage: 100-240V AC, 50-60Hz
Switching Voltage: Max. 250Vac
Switching Current: Max. 5A
Output Signal: 0-10V, Max. 15mA
Wireless Signal: RF 2.4GHz
Working Temperature: -10°C~55°C
Dimensions: L86 x W86 x H50 (mm)
Weight: 220g

Control
- 0-10V
Input Voltage
- 100-240 V
Input Voltage Domain
- AC
Weight
- 220g
Dimensions
- L86xW86xH50(mm)
Package Size
- L106xW106xH60(mm)
Working Temperature
- -10°C-55°C
Max Switching Current
- 5 A
Max Switching Voltage
- 250 V

Internal Reference: 2260110
HS Code: 85371098

General

3 specifications

Control

0-10V

Input Voltage

100-240 V

Input Voltage Domain

Operating

1 specification

Working Temperature

-10°C-55°C

Physical

3 specifications

Weight

Dimensions

L86xW86xH50(mm)

Package Size

L106xW106xH60(mm)

Other

2 specifications

Max Switching Current

Max Switching Voltage

250 V

All Files

1 file

E610P-RF User Manual.pdf

729 KB

Download
