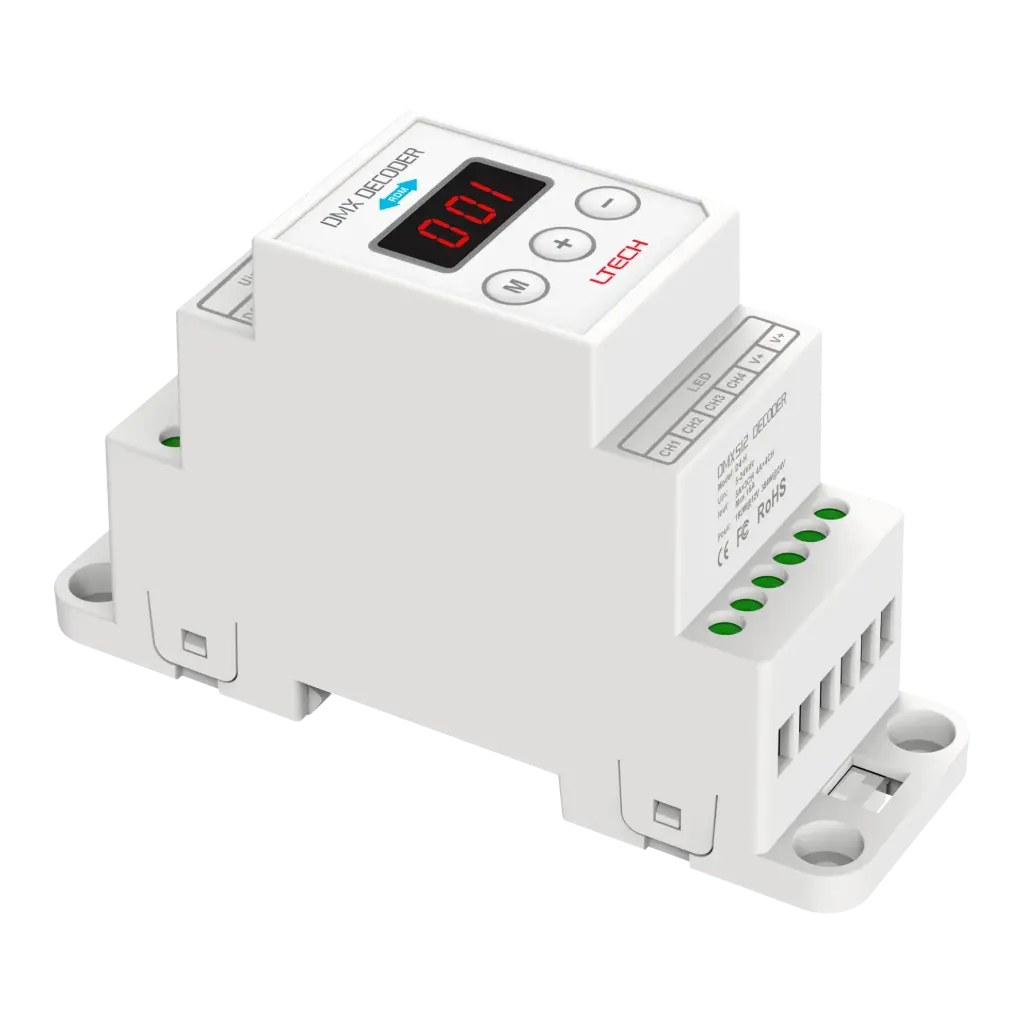

This DMX/RDM controller features standard DMX/RDM interfaces with address setting via digital display and buttons. It supports RDM protocol for browsing parameters and changing DMX addresses through an RDM master or mobile app. Switchable between DMX decoding and control modes, it offers linear or logarithmic dimming curves, DIM/CT/RGB/RGBW output options, 10 lighting effects, 8 speed levels, 255 brightness levels, and selectable 16-bit or 8-bit gray scale. Additional features include adjustable PWM frequency, screen timeout, and automatic protection against short circuit, over-temperature, and over-current conditions.
• Input Voltage: 5-24V
• Output Type: Constant Voltage
• Output Current: 5A × 3CH 4A × 4CH Max.16A
• Output Voltage: 4 × (5-24V)
• Output Power: 192W@12V 384W@24V
• Dimming Range: 0-100%
• Working Temperature: -25℃~50℃
• Dimensions: L112 x W35 x H67 (mm)
